AirStar 22 NEO
AirStar 22 NEO
AirStar 22 NEO

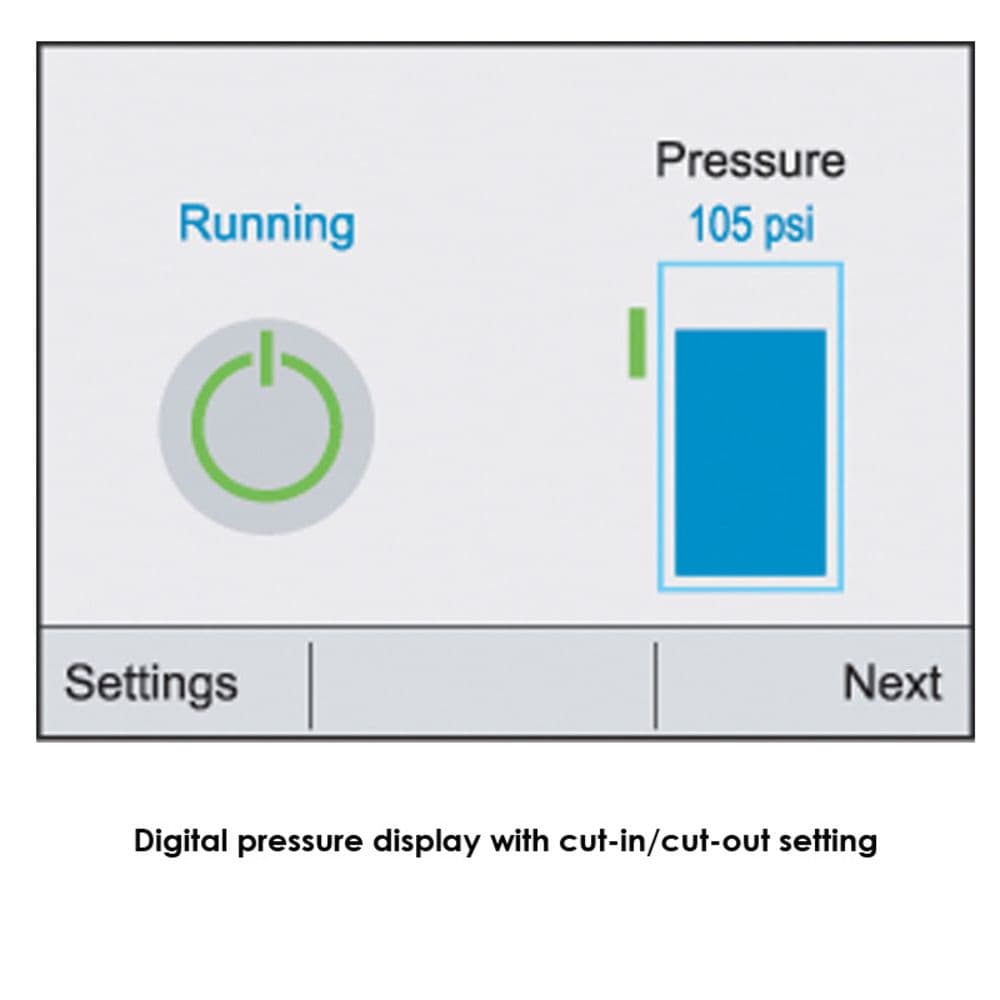

Touch-Screen: Displays Pressure

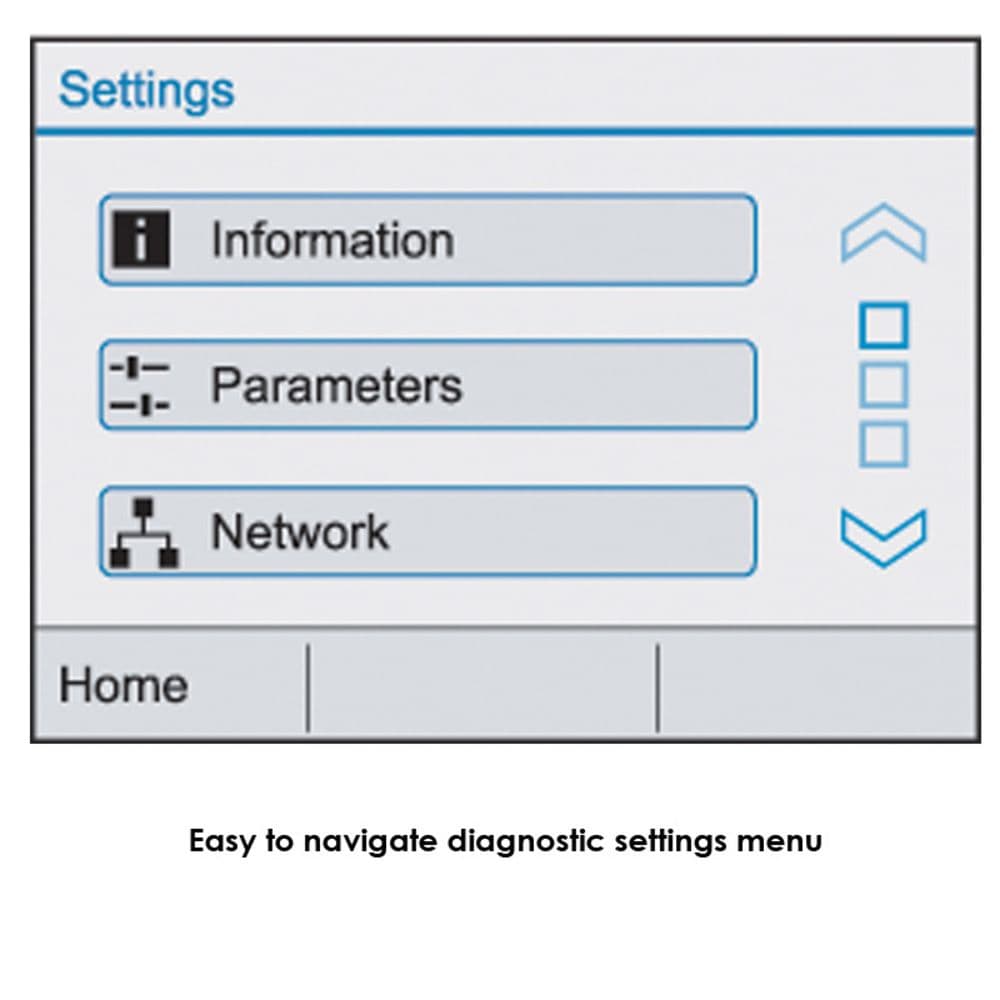

Touch-Screen: Displays Diagnostic Settings

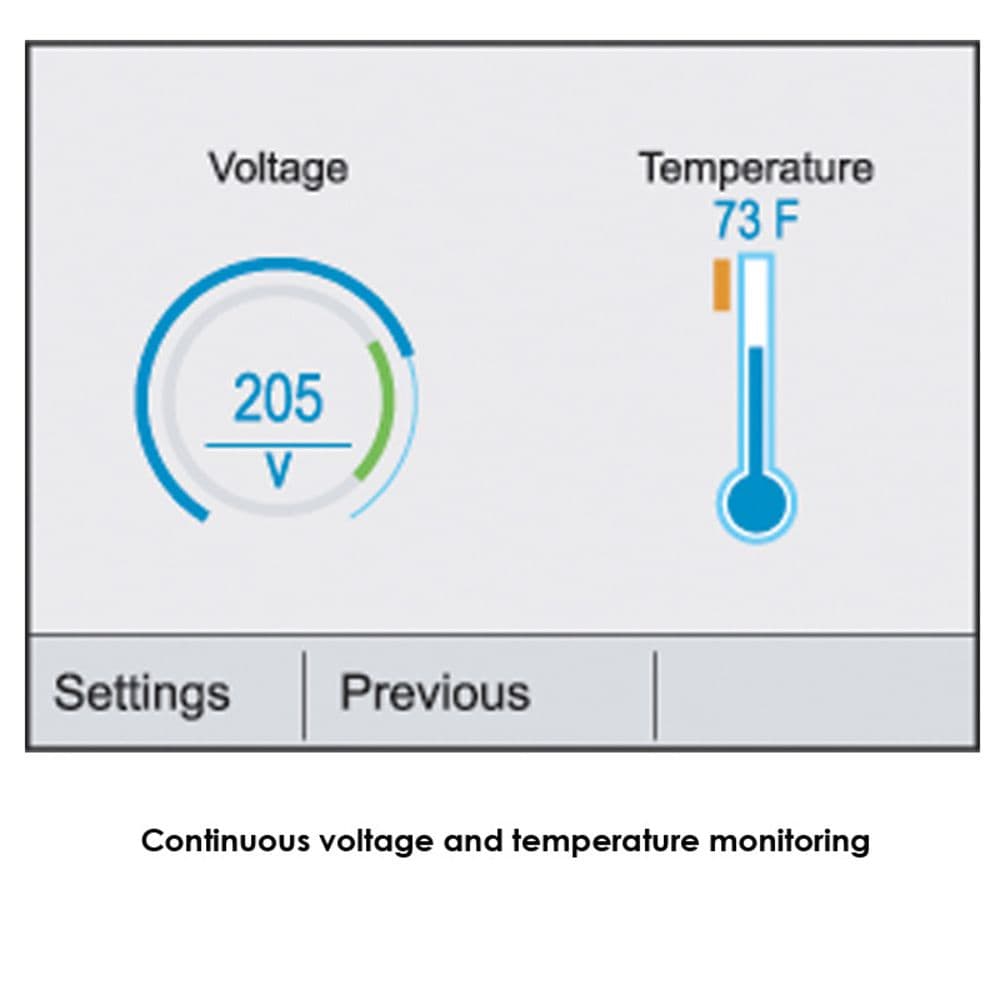

Touch-Screen: Displays Voltage & Temperature
Air Techniques Vent-Less Vacuums

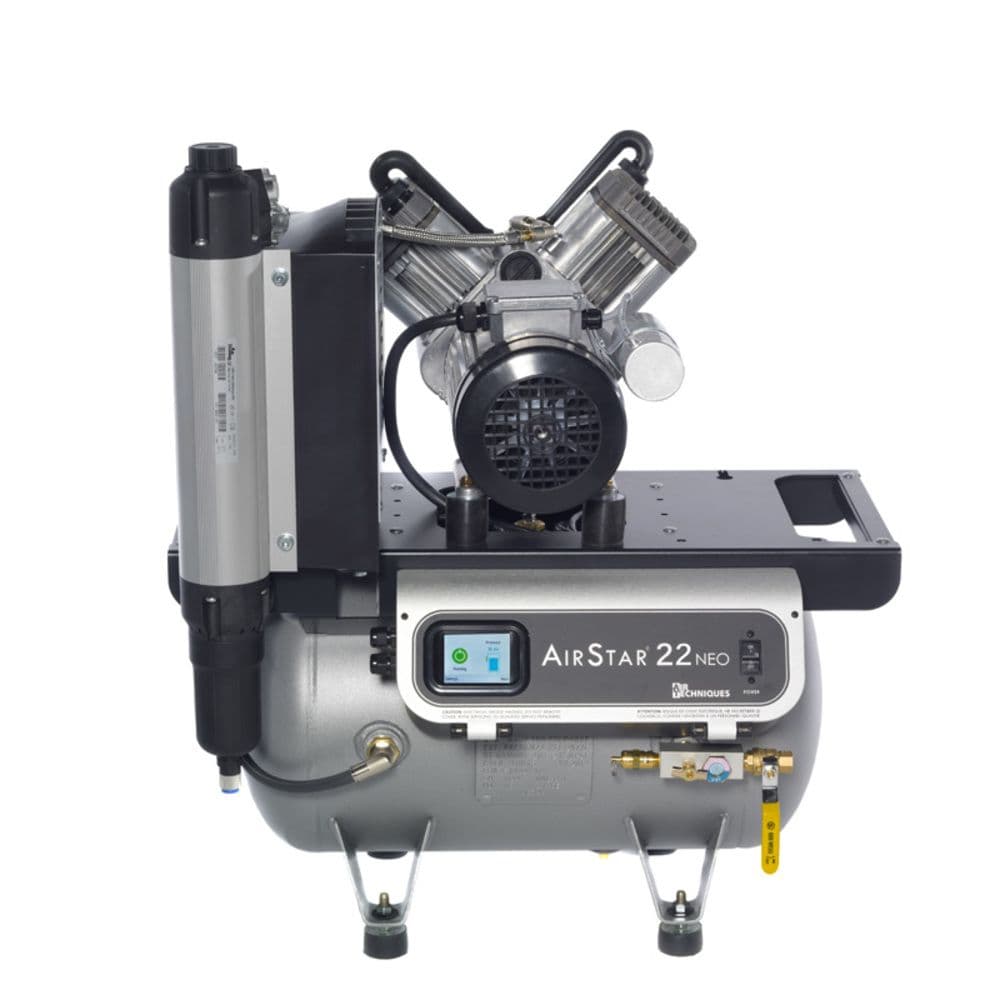

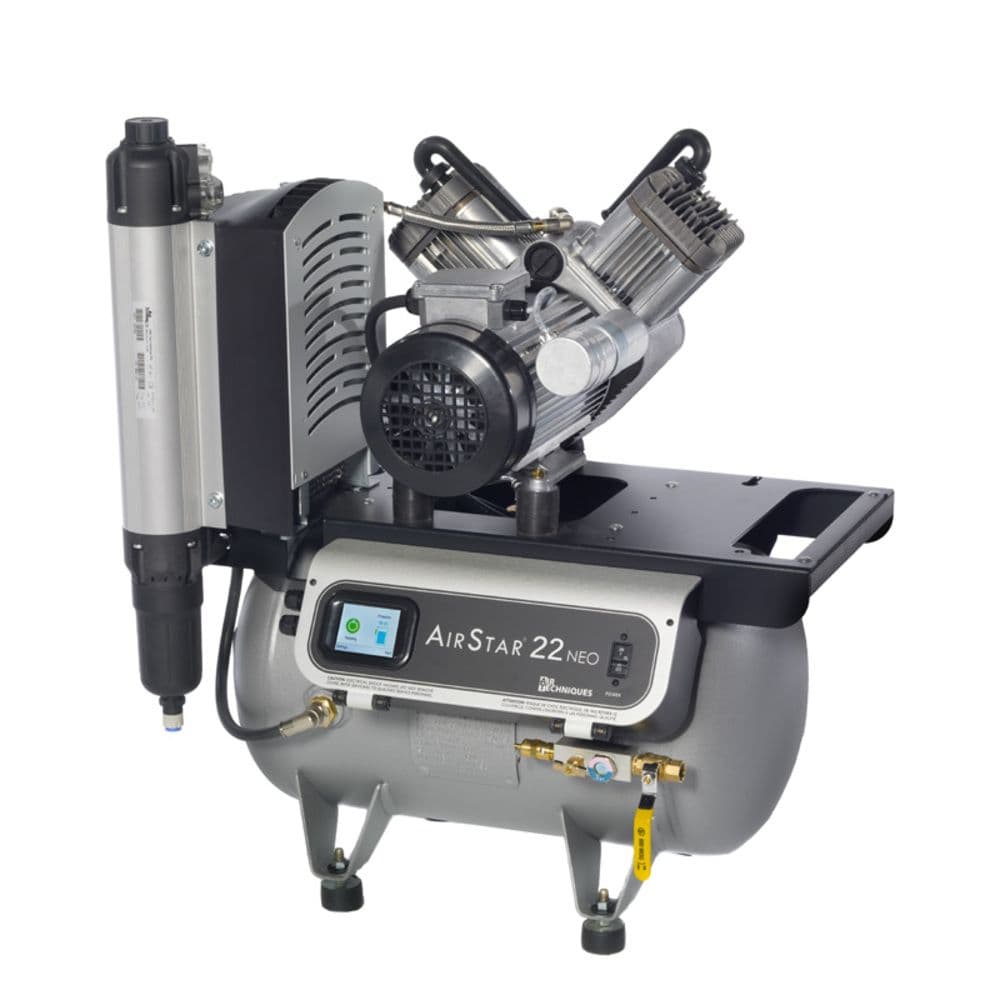

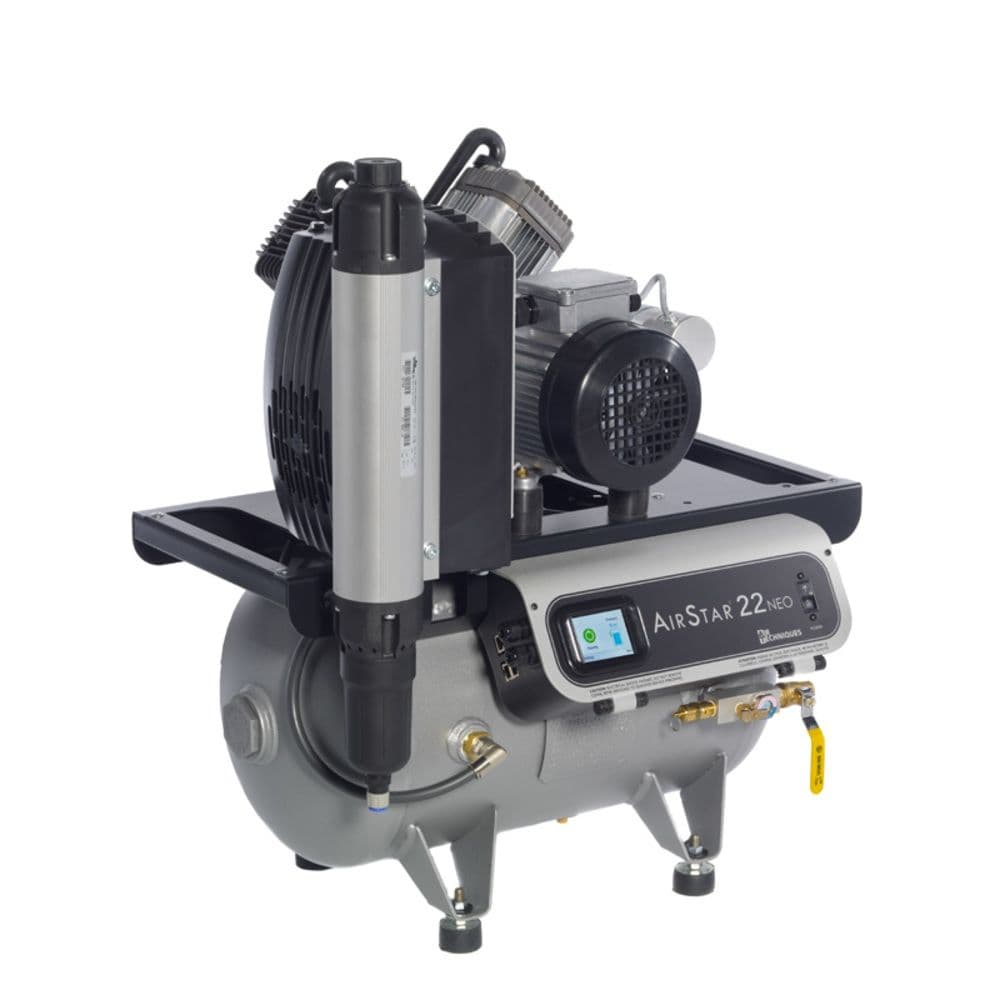

Air Techniques AirStar® 22 NEO

AirStar® 22 NEO Air Compressor

AirStar 22 NEO works with up to 3 users simultaneously.
Request Quote
Let Us Show How It Works
Schedule a Demo
Financing Options Available
Request Financing

Description

The NEW AirStar NEO series combines Air Techniques’ exclusive Membrane Dryer Technology and new integrated diagnostic monitoring functions for a state-of-the-art dental air compressor. Air is quadruple filtered by the Membrane Dryer to ensure it is the cleanest and driest possible. The intelligent controls provide a trouble-free performance by allowing easy accessibility to user settings and setup controls from any room. Each AirStar NEO is 100% oil-free, compact in size and features a full color, digital touch screen display. The system continuously monitors itself and delivers unprecedented diagnostic controls. AirStar NEO will keep you informed of preventative maintenance with smart alarms.

Specifications

  • Compact design and intelligent controls for trouble-free performance
  • NEW digital touch screen display allows easy accessibility to user settings and setup controls from any room
  • Worry free preventative maintenance system keeps office staff informed with smart alarms
  • Continuous system monitoring delivers unprecedented diagnostic control
  • Virtually no maintenance - Only a single, annual filter change
  • 100% Oil-Free, energy efficient and top industry proven performance
  • Exclusive Membrane Dryer Technology quadruple filters for the driest, cleanest air
  • The compressor head is equipped with our exclusive brass-lined cylinder and long-stroke, Teflon-bonded piston - ensuring years of reliable use
  • Compact footprint and easily serviced by quick access to the electrical box, membrane filters and tank valves
Part Number  AS22 NEO
Max. Number of Users  3
Voltage (Min/Max)  200/250
CFM @ 80 PSI  5.0
Dimensions (WxHxD)  26.5" x 29.5" x 20"
Tank Size (US gal)  9.6
Total Horsepower (kW)  1.6 / 1.2

60 Month Warranty:all compressor heads and motors
This equipment is warranted to be free from defects in material and workmanship for a period of 60 months from the date of installation by authorized Air Techniques' dealer service personnel.

Upgrade your utility room with the most advanced AirStar compressor yet! Boasting a full color touchscreen for easy navigation and control as well as compatibility with Vision Monitor cloud based IoT platform, feel confident your equipment will operate efficently and alert you if there is a problem.

• Full color touchscreen display.

• Intuitive Navigation Menu for easy configuration and settings control.

• Worry free preventative maintenance system keeps office staff informed.

• Connect directly to Vision Monitor cloud platform without added hardware devices.

• Solid-state electronics for higher reliability.

• Smart head management prolongs motor life and reduces noise.



Vision Monitor Features:

• IoT Condition Monitoring system with web-based user interface (on web and mobile

App: Apple & Android)

• Alarms and (pre-) warnings are reported immediately to the desktop and by email

• Remote access to practice equipment via Cloud: easy, safe and secure device

configuration

• Legacy equipment monitoring for older or Classic, non-networked devices

(Connect Box)
