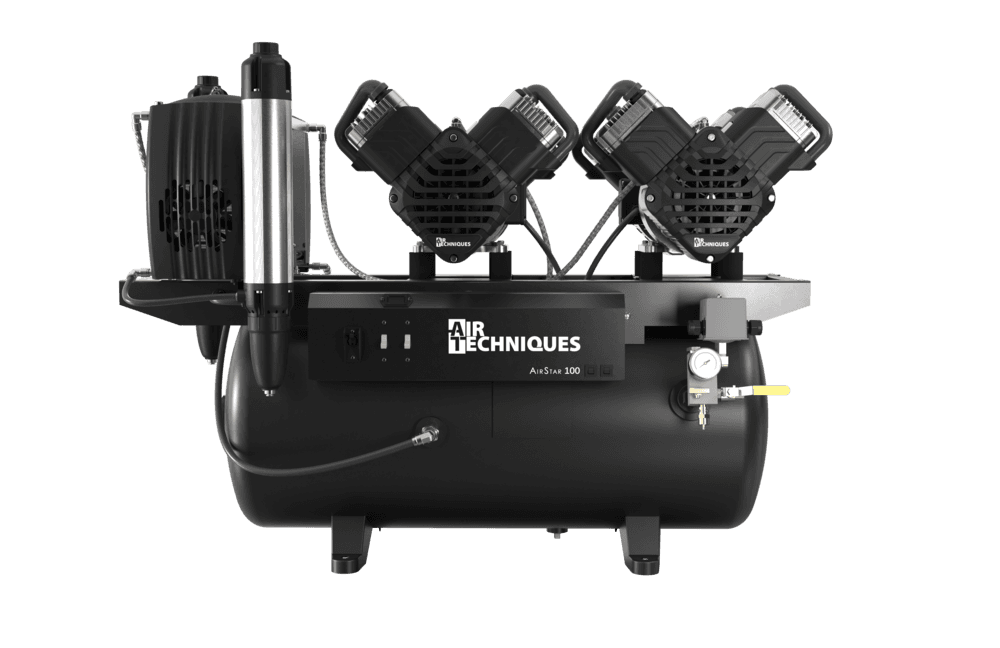

Air Techniques AirStar® 100 Air Compressor

Air Techniques AirStar® 100 Air Compressor - Distributed by Henry Schein

Request a Quote

Schedule a Demo

Each AirStar is equipped with exclusive Membrane Dryer Technology. Air is quadruple filtered – once at the compressor head, twice at the dryer and again as it leaves the tank – to ensure it is cleaner and dryer than ever before. With such a sophisticated design, the Membrane Dryer greatly reduces the chance of bacteria entering your patient's mouth.

Financing Opportunities

  • Finance Calculator

    Click to Request Product Financing Options

AirStar 100 can service up-to 14 simultaneous users.



Benefits:



REVOLUTIONARY COMPRESSOR WITH MEMBRANE DRYER TECHNOLOGY

•100% ultra-dry air

•100% oil-free performance

•Antimicrobial tank interior powder coating

•Quadruple filtered

•Membrane dryer technology

•Linear Teflon-bonded piston, long-stroke compression

•Default 85-115 psi (cut-in/out) pressure switch settings

•Sound cover available for all models

Part Number AS100
Maximum Number of Suimultaneous Users 14
Number of Heads Twin 2.4 HP
Full Load Amps 20A
Dimensions (w x h x d) 46" x 35" x 25"
Dimensions w/ Sound Cover (w x h x d) 51" x 36" x 29.5"
Weight 450 lbs
Voltage Rating 220 - 3 phase
Voltage (min/max) 200/250
CFM @ 80 PSI 20.0
Tank Size (US gal) 30
Total Horsepower (kW) 4.8 HP / 3.6 kW
Wire Size (Gauge) 10

Upgrade your utility room with the most advanced AirStar compressor yet! Boasting a full color touchscreen for easy navigation and control as well as compatibility with Vision Monitor cloud based IoT platform, feel confident your equipment will operate efficently and alert you if there is a problem.

• Full color touchscreen display.

• Intuitive Navigation Menu for easy configuration and settings control.

• Worry free preventative maintenance system keeps office staff informed.

• Connect directly to Vision Monitor cloud platform without added hardware devices.

• Solid-state electronics for higher reliability.

• Smart head management prolongs motor life and reduces noise.



Vision Monitor Features:

• IoT Condition Monitoring system with web-based user interface (on web and mobile

App: Apple & Android)

• Alarms and (pre-) warnings are reported immediately to the desktop and by email

• Remote access to practice equipment via Cloud: easy, safe and secure device

configuration

• Legacy equipment monitoring for older or Classic, non-networked devices

(Connect Box)
