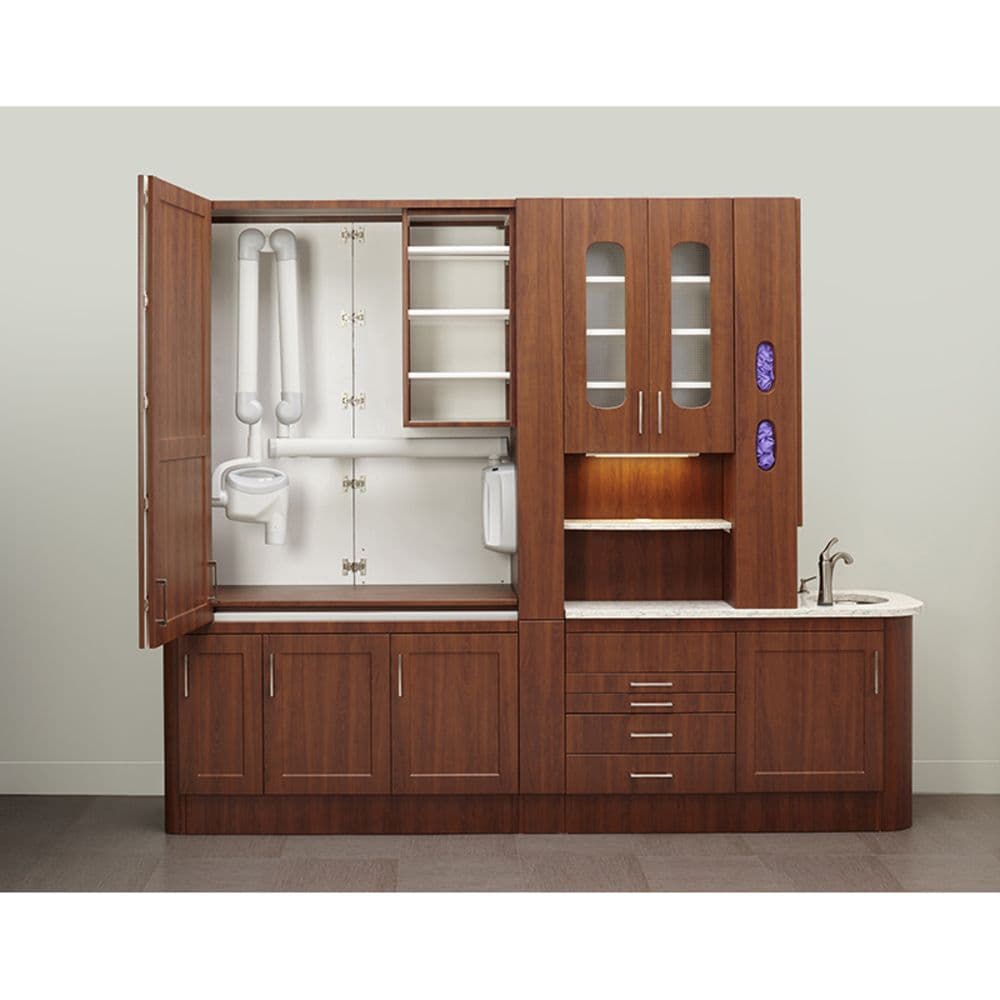

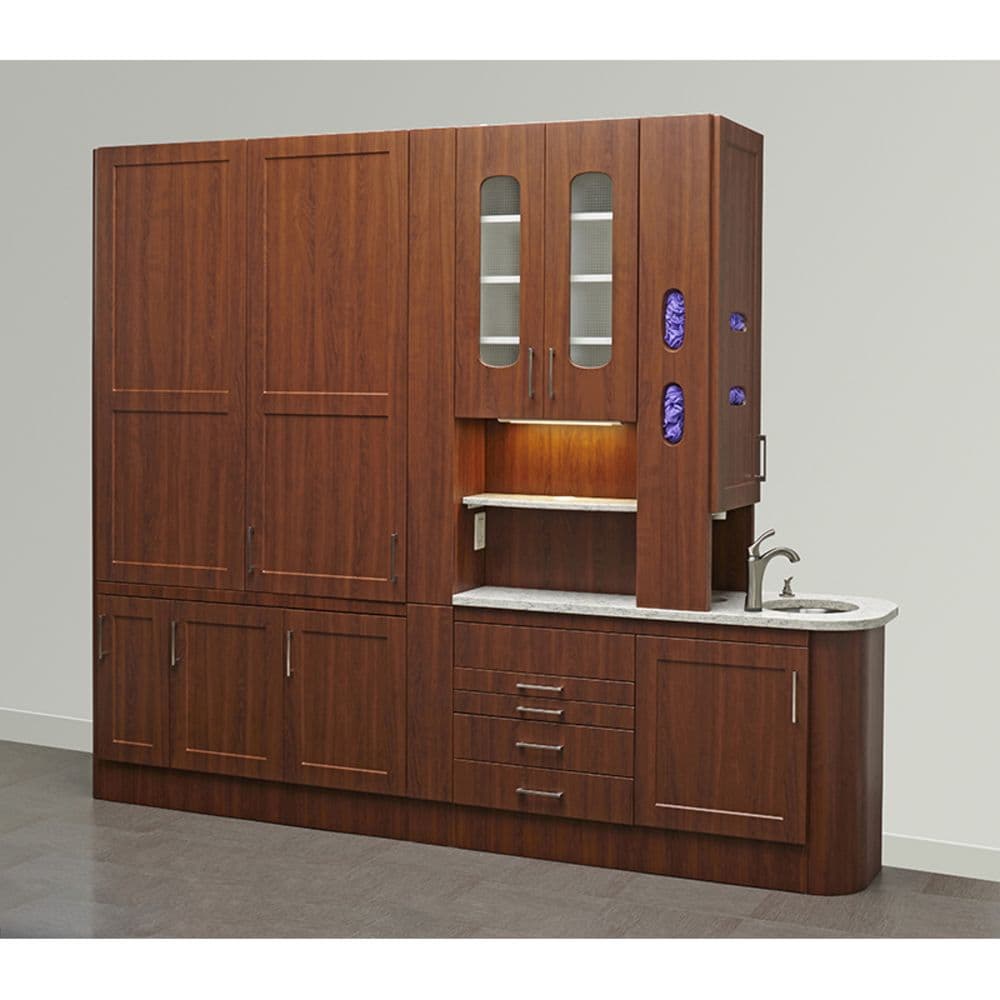

Midmark Synthesis® Casework Collection - Central Station
Synthesis® Central Stations are the ideal solution for multi-room plans. Saving valuable floor space, central stations offer storage on both sides for the dentist and assistant.
Financing Options Available
Request FinancingDescription
Synthesis Central Stations are the ideal solution for multi-room plans. Saving valuable floor space, central stations offer storage on both sides for the dentist and assistant. With a width of 18 inches, the Synthesis Central Station requires approximately 55% less floor space than a traditional wall and side cabinet installation. More usable floor space provides greater flexibility for your space utilization.
Standard Features
- Available in 72", 90" and 95" heights (95" is the 90" with a 5" top extension)
- Nine standard models available in three heights and three lengths
- 18-gauge steel frame
- Full-extension ball-bearing glides
- Concealed steel hinges
- Multiple handle and panel styles
- Seamless panels and polystyrene drawers
Specifications
Models:
- CS1 – 59'' x 72": sink base to center column (no equipment end)
- CS2 – 103.5'' x 72'': full central with 42” equipment base
- CS3 – 109.5'' x 72'': full central with 48” equipment base
- CS4 – 59'' x 90'': sink base to center column (no equipment end)
- CS5 – 103.5'' x 90'': full central with 42” equipment base
- CS6 – 109.5'' x 90'': full central with 48” equipment base
- CS7 – 59'' x 95'': sink base to center column and extension (no equipment end)
- CS8 – 103.5'' x 95'': full central with 42” equipment base and extension
- CS9 – 109.5'' x 95": full central with 48” equipment base and extension
Structure:
- Powder-coated, 18-gauge cold-rolled steel; multi-piece shell and frame design; riveted
Door and drawer front/back:
- 12-mm seamless polymer-covered front; melamine back (Frost in color)
Door and drawer core:
- 45-lb LEED® IEQ-compliant MDF board,
- ¾"-thick (all composite wood material to meet CARB P2 emission standard of CARB regulation 91320.4)
Hinges:
- Manufacturer's standard Blum® concealed,
- self-closing, 110°-opening, nickel-plated metal, clip-on mount, three adjustment points
- Soft-close, full-extension, ball-bearing glides
- Soft-close, concealed steel hinges
Pulls:
- 128-mm pull offering (Serenity, Transcend and Pinnacle styles); integrated front-pull design (Cove style); recessed clear snap-on handle with interchangeable color strips (Renew style)
Deep-drawer construction:
- One-piece, molded polystyrene drawer bodies with rounded corners (Frost in color)
Slide:
- Manufacturer's standard Accuride® Aero (100-lb capacity) ball-bearing slides; Accuride® model 3832 (100-lb capacity) for pullout writing surfaces and waste cans
Security:
- Keyed and key-less lock options
Standard panel color options:
- 12 woodgrains
- 5 solids
- 4 metallics
Panel style options:
- Cove
- Serenity
- Renew
- Transcend
- Pinnacle
Handle style options:
- Arc
- Bent
- Bent Antimicrobial
- Edge
- Flare
Standard countertop options:
- 11 Formica® and Wilsonart® laminate colors
- 15 Corian® solid-surface colors
- 13 Zodiaq® and Viatera® quartz colors
Sink options:
- Laminate Countertop – drop-in sink, touch proximity faucet and soap dispenser
- Solid-Surface Countertop – undermount stainless-steel or solid-surface sink, touch proximity faucet and soap dispenser
- Quartz Countertop – undermount
- stainless-steel sink, touch proximity faucet and soap dispenser
