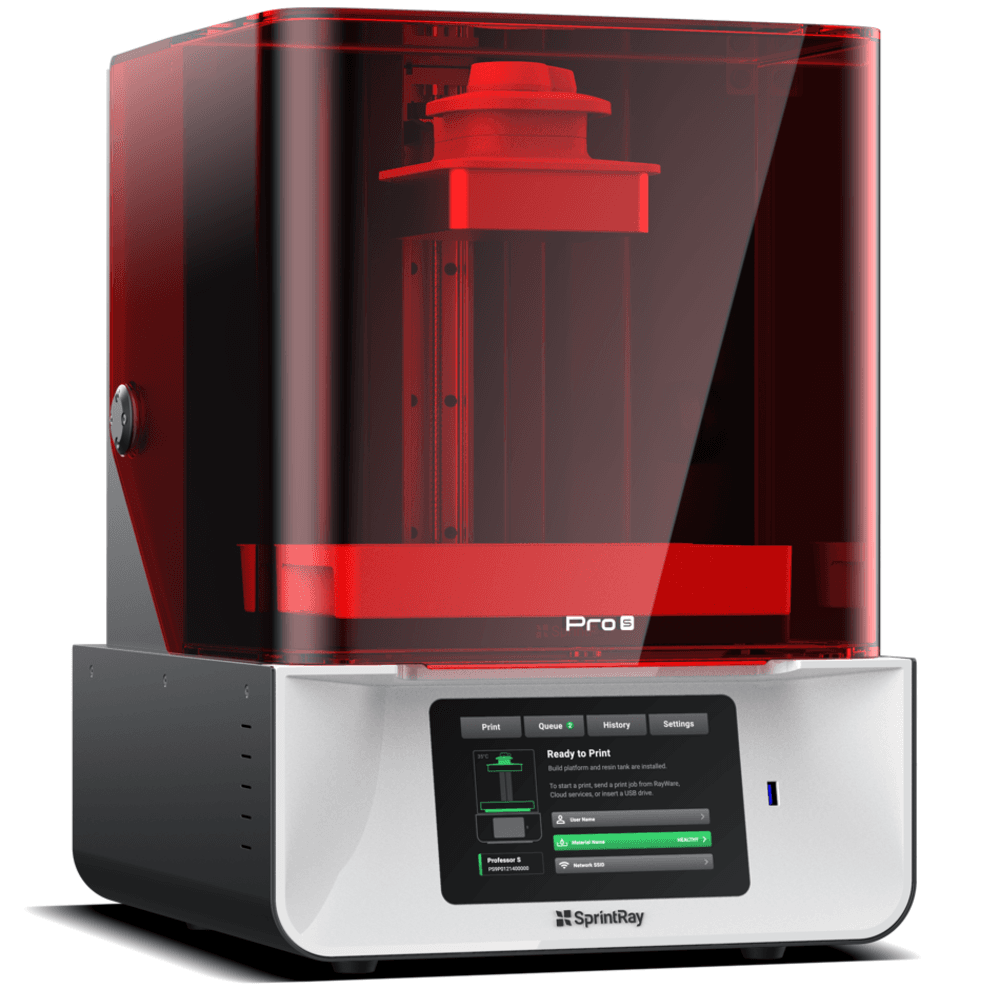

SprintRay Pro55 S

SprintRay Pro55 S - Distributed by Henry Schein

Request a Quote

Schedule a Demo

SprintRay Pro55 S is the perfect 3D printer for jobs that require razor-thin margins without all the hassles that come with other manufacturing methods. It’s the ideal tool for 3D printed definitive crowns, multi-unit temps, hybrid dentures, and much more.

Financing Opportunities

  • Finance Calculator

    Click to Request Product Financing Options

Incredible precision makes this unit ideal for restorative applications.

A 55-micron XY pixel size and Pixel Toning brings industry-leading accuracy to Pro55 S, making it perfect for jobs that require razor-thin margins such as temporary and definitive crowns, hybrid dentures, and more. Pro55 S is the ideal printer for clinics or labs that specialize in restorative applications, reducing treatment cost and delivery times while improving your workflow.

Pro55 S is perfect for:

  • Temporary and Definitive Crowns
  • Hybrid Dentures
  • Surgical Guides
  • Cast Applications


Printing Technology

  • Stereolithography (SLA)
  • Digital Light Processing (DLP)
  • Direct Peel Mechanism
  • Manual Resin Filling
  • Easily Removable Supports


Print Volume

  • 4.1' x 2.3' x 8'
  • 10.5cm x 5.9cm x 20cm


Layer Thickness Options

  • 50 Microns, 100 Microns, 170 Microns


Minimum Feature Size

  • 55 Microns


Print Speed

  • up to 2 in/hour @ 100 Microns
  • 1 in/hour @ 50 Microns


Resin Curing Unit

  • SprintRay Custom-Built 1080P FHD Projector
  • Texas Instruments DLP Chip
  • 405nm LED
  • LED-based Light Source
  • 50,000 Hours Expected Lifetime


Resin Tank

  • 500 mL Capacity
  • Vacuum Formed Protective Cover
  • Up to 50 Liters Extended Lifetime



  • 5GHz Wi-Fi Chipset
  • Direct Ad-Hoc Mode via Wi-Fi b/g/n
  • Local Network via Wi-Fi b/g/n
  • Local Network via Ethernet Cable


Printer Control

  • 7" Touch-screen with Direct Print via USB Port


Unit Dimensions

  • W x D x H (When Open)
  • 14" x 20" x 24"
  • 35cm x 50cm x 61cm


Shipping Size & Weight

  • 20" x 20" x 22" - 40 lb
  • 53cm x 53cm x 58cm - 18 kg
