Air Techniques Vent-Less Vacuums

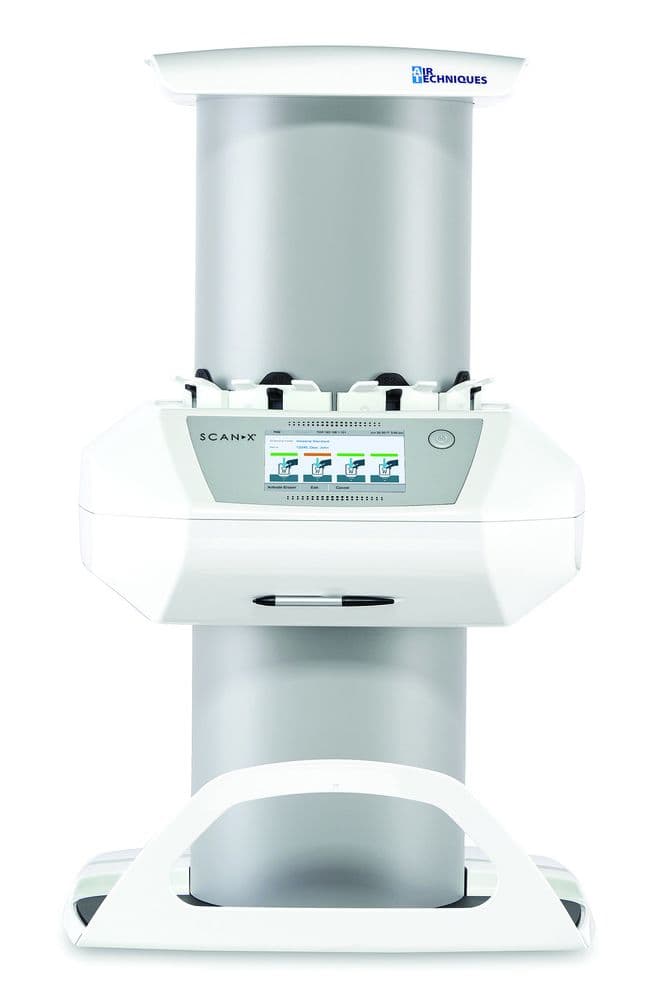

Air Techniques ScanX® Classic View

Efficiency without compromise. The digital radiography system with touchscreen, for all intraoral & extraoral formats. The ScanX Classic View digital imaging system enables intuitive, efficient, and time-saving digitization for both intraoral and extraoral formats.
Let Us Show How It Works
Schedule a Demo
Financing Options Available
Request Financing

Description

DIGITAL IMAGING WITHOUT LIMITS

  • The ScanX Classic View digital radiography system enables digitization of PSPs for all intraoral formats, sizes 0-4 and extraoral Pan and Ceph plates
  • The large touchscreen offers an easy-to-use interface, and four slots for simultaneous scanning
  • WiFi accessible, ScanX Classic View is exceptionally flexible
  • PSP diagnostics is quicker, more reliable, and convenient with the ScanX View series



UNCOMPROMISED IMAGE QUALITY

  • High-resolution image quality for easier diagnosis
  • ScanX PSPs help you to never miss important structures, thanks to the larger diagnostic area and a 100% active area
  • Provide more mesial-distal information and never miss a root tip or distal cusp



NTUITIVE CONTROLS - OPTIMUM WORKFLOW

  • The convenient user interface enables the easy operation of the ScanX Classic View – by hand or with the provided stylus
  • Preset scan modes enable quick and reliable scanning
  • The 4.3″ high-resolution touchscreen can display 16.7 million colors and provides excellent image quality
  • A preview function for the scanned image allows X-ray results to be quickly checked
  • Integrated wireless functionality and LAN interface allows easy integration into an existing network

Specifications

PN G8700A
Screen 4.3" touchscreen, 800 x 480 pixels, 16.7 million colors
PSP Sizes All intraoral formats: sizes 0, 1, 2, 3, 4; Extraoral sizes: PAN, Ceph, and TMJ
Theoretical Resolution Lp/mm 40, 2000 dpi
Greyscal (9 bits) 65,536 (16)
Weight 46.3 lbs., 21 Kg
Dimension (wxdxh) 4.96" x 24.80" x 16.14"
Interfaces WiFi, LAN
