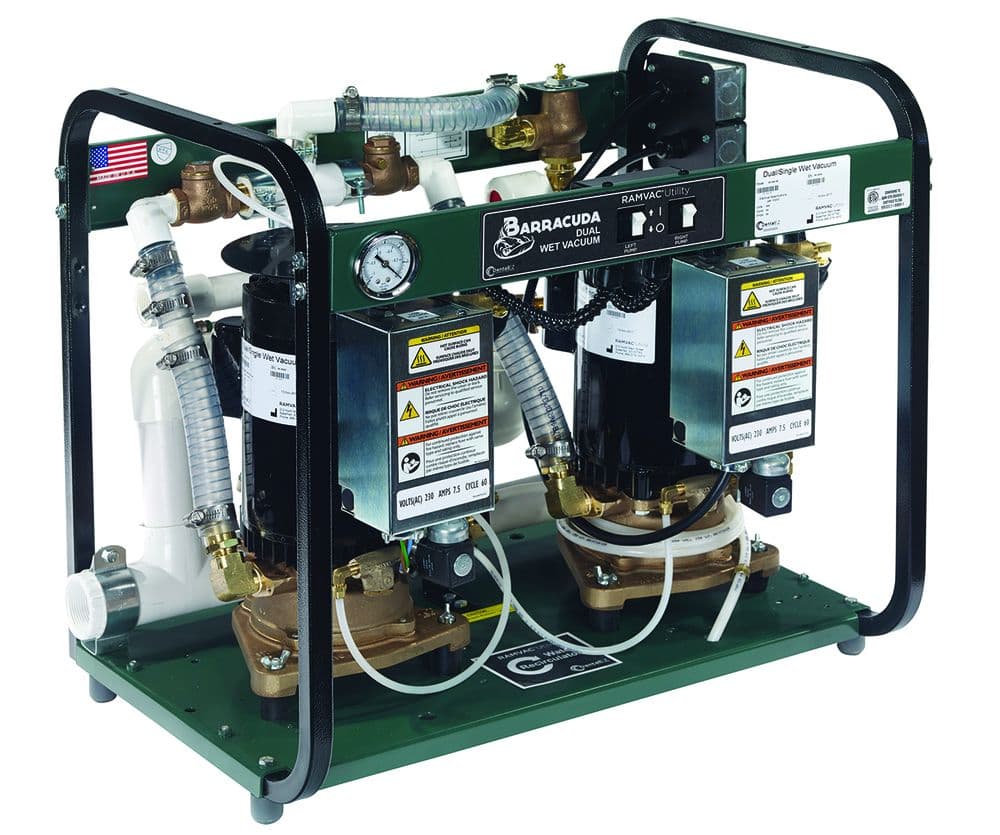

Barracuda Dual

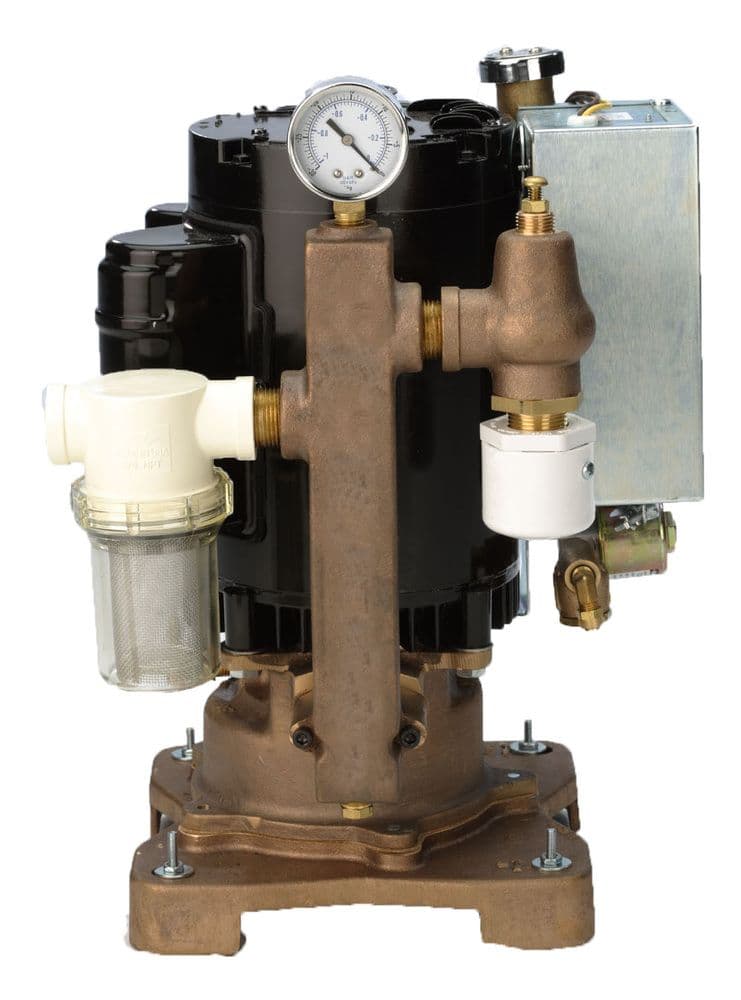

Barracuda single

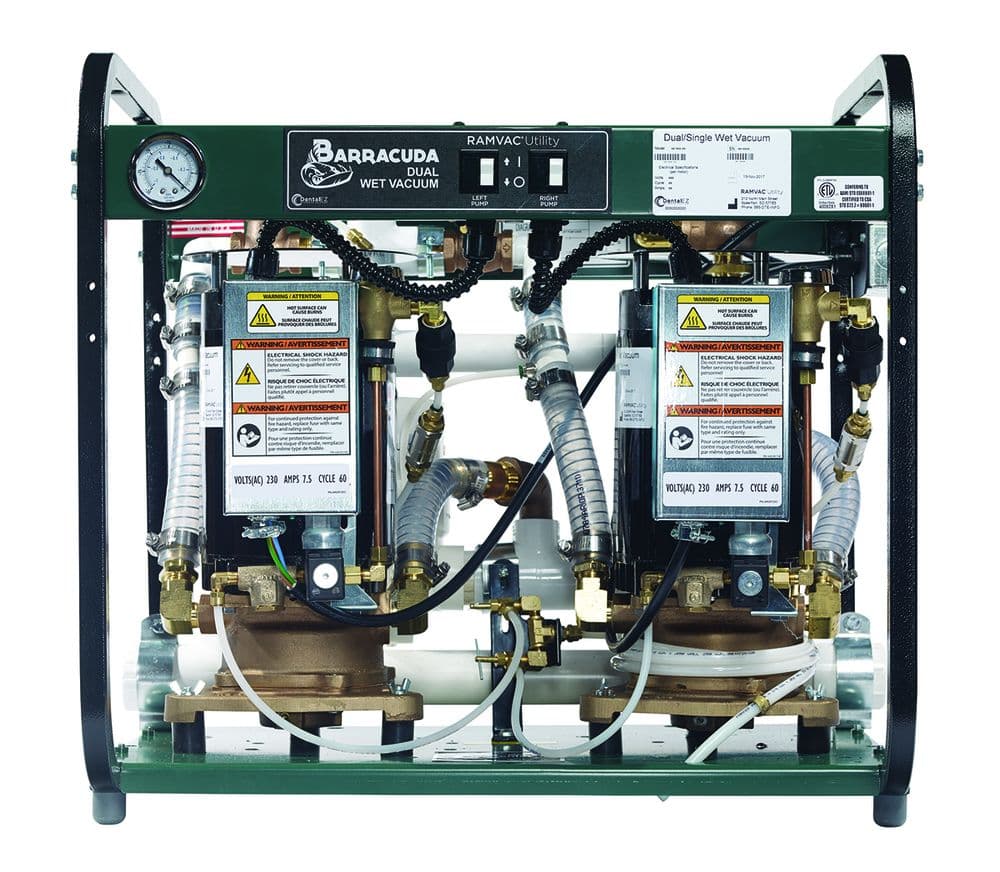

Barracuda Dual from front
RAMVAC

RAMVAC Barracuda™ Water Ring Pumps

The Barracuda Water Ring Pumps have been manufactured continuously since 1957 and have served more dentists for more years than any other dental vacuum. They are quiet, compact and have a long life, chemical resistant brass impeller and housing. NOW with a 5 year limited warranty from date of installation.
Let Us Show How It Works
Schedule a Demo
Financing Options Available
Request Financing

Description

Our Barracuda Single Water Ring Pump offers quiet operation and compact size designed for small to medium size practices.



  • Large capacity, easy to clean filter, with clear bowl for easy inspection
  • 1 & 2 HP Water Injected Pump models available to suityour specific requirements
  • 10.55 CFM for 1 HP model and 23.5 CFM for 2 HP Model
  • Quiet and compact
  • Long life, chemical resistant brass impeller and housing
  • Sealed bearings in motor
  • Designed for easy servicing



 Dual Water Ring Pump

For larger practices, the Barracuda Dual Water Ring Pump provides vacuum suction when operating in peak work periods. The dual pump offers back-up protection to minimize downtime and costly interruption to workflow.



  • Same quality features found in RAMVAC® single pumps
  • Two independent pumps to handle peak loads and back-up protection
  • Optional water recirculatory
  • Optional top shelf with 300 lb. capacity for stacking compressors
P65 Warning

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

WARNING: This product can expose you to chemicals, including Ethylene Oxide and Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects or reproductive harm. For more information, go to www.P65Warnings.ca.gov.

WARNING: This product can expose you to chemicals, including Lead and Lead Compounds, which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, go towww.P65Warnings.ca.gov.

Specifications



         MC-201FS/FSW

  MC-202FS/FSW

CV-101FS/FSW

CV-102FS/FSW

Horsepower

2 x 1 HP

2 x 2 HP

1 x 1 HP

1 x 2 HP

Volts

208-230

208-230

115 / 208-230

208-230

Amps (each motor)

7.5 each motor

15 each motor

13.2 / 7.2 - 6.6

11.9 - 10.7

Phase

Single

Single

Single

Single

RPM

3450

3450

3450

3450

AmbientTemperature

32˚C / 104˚F

32˚C / 104˚F

32˚C / 104˚F

32˚C / 104˚F

Cycle

60 Hz

60 Hz

60 Hz

60 Hz

Width

24”

24”

12”

14”

Depth

17”

17”

9”

11”

Height

24”

24”

16”

20”

Shipping Weight

175 lbs.

215 lbs.

61 lbs.

78 lbs.

Max Sealed Vacuum

Approx. 20 - 25 inches Hg adjustable

Approx. 20 - 25 inches Hg adjustable

Approx. 20 - 25 inches Hg adjustable

Approx. 20 - 25 inches Hg adjustable

Users

4

6

2

3
