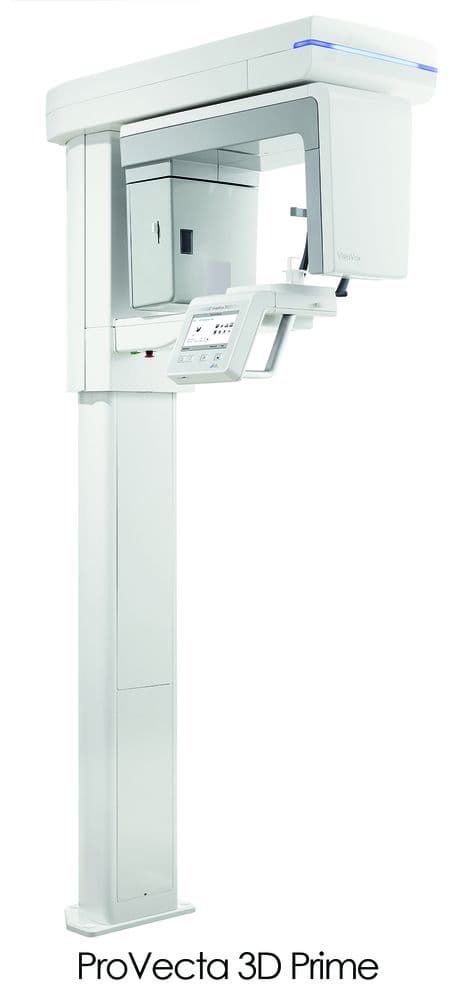

ProVecta 3D Prime

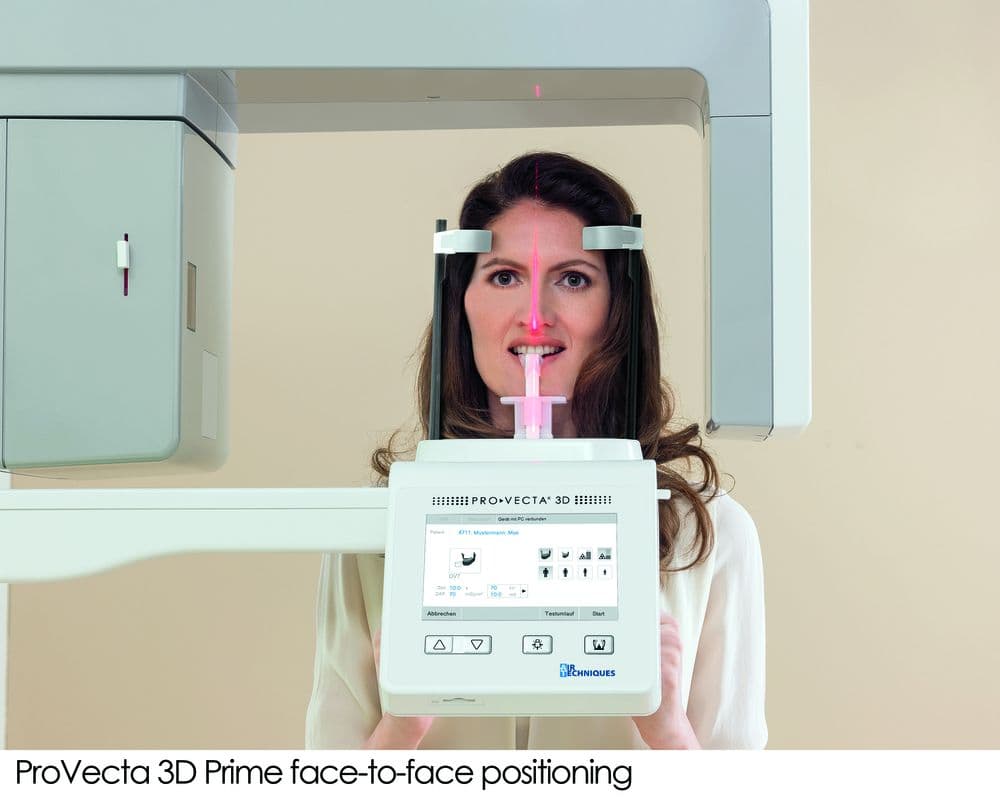

Scanning patient
X-ray
X-ray
X-ray
X-ray
Air Techniques Vent-Less Vacuums

Air Techniques ProVecta 3D Prime

• 3D and 2D images from one unit

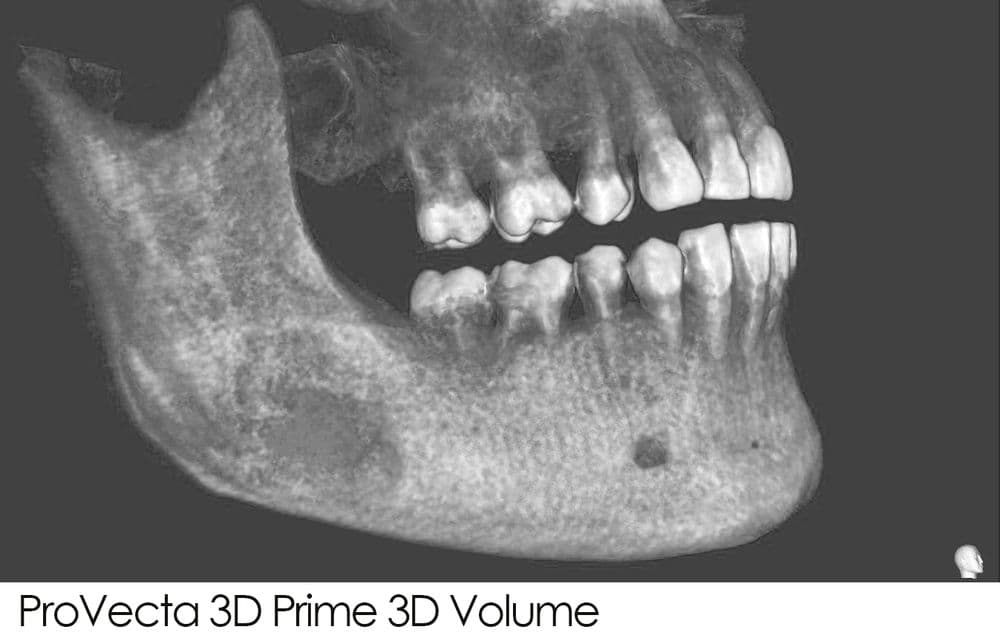

• Anatomically adapted jaw-shaped 3D image includes all dentition, including third molar area
• 50 x 50 mm volumes in 80 or 120 μm resolution
• High resolution CsI flat panel sensor creates brilliant high quality 3D and 2D images
• Efficient radiation dose thanks to the anatomically adapted volume and sensor technology
Financing Options Available
Request Financing

Description

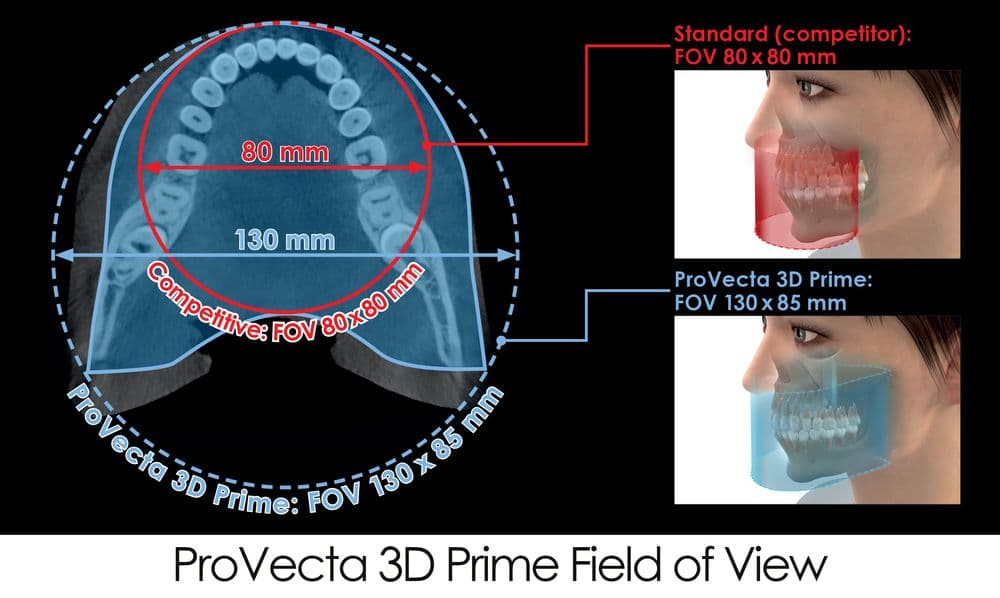

Introducing the ProVecta 3D Prime, the new 3D/2D system from Air Techniques. The ProVecta 3D Prime generates a unique 130mm x 85mm jaw-shaped volume that encompasses all treatment areas without imaging non-relevant anatomy.

• Anatomically adapted jaw-shaped 3D image includes all dentition, including 3rd molars, with lower dose than smaller 80 x 80mm volumes.

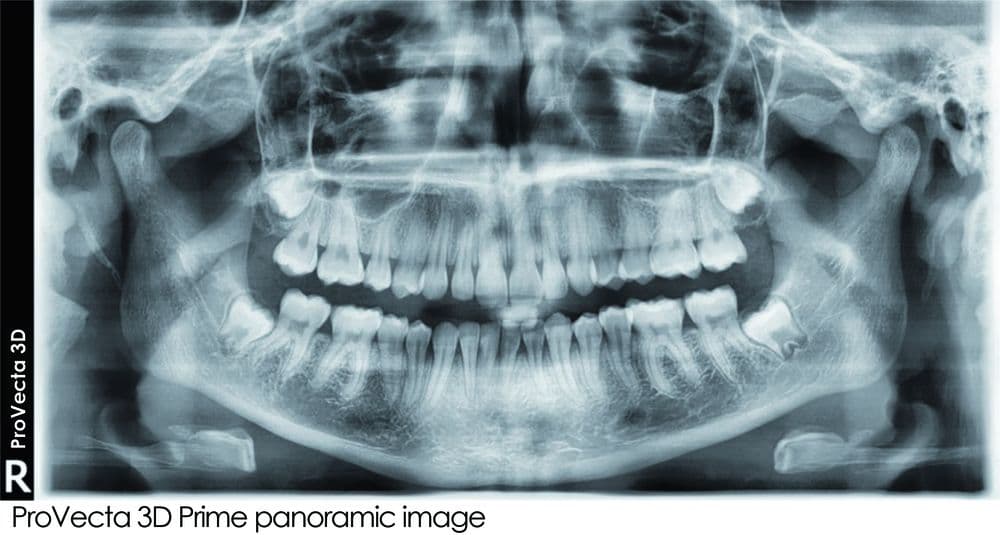

• 2D S-Pan 20 layer panoramic imaging with 17 program options.

• High resolution CsI flat panel sensor creates brilliant high quality 3D and 2D images

• 50 x 50 mm volumes in 80 or 120 μm resolution

• Intuitive touchpad, laser guidance, and patient positioning

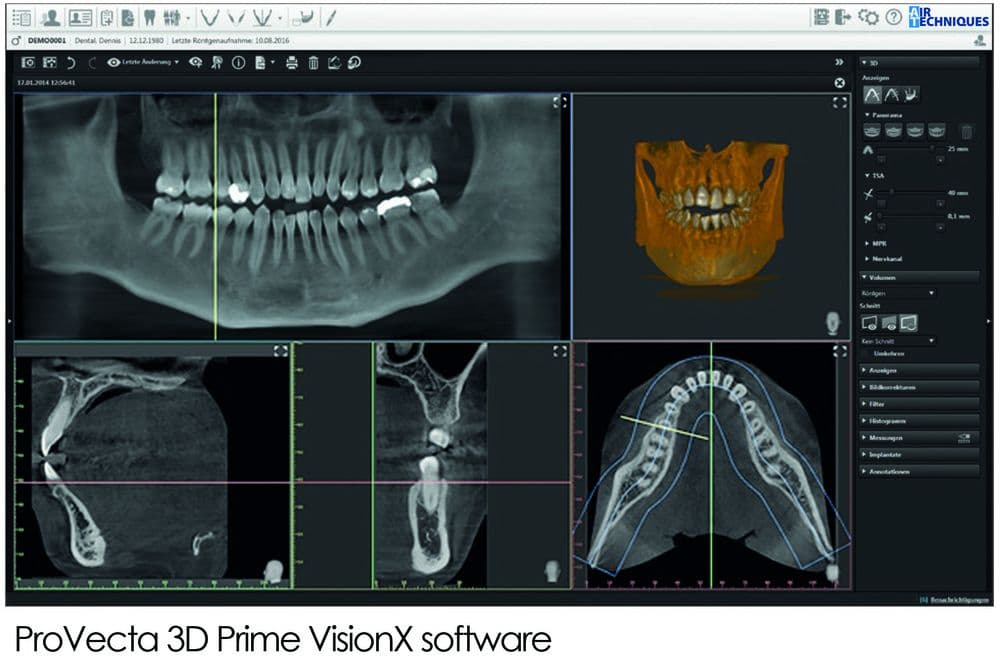

• New VisionX all-in-one imaging platform, with implant visualization

• Designed for simplicity and high quality end to end

Specifications

X-ray HV Generator



Voltage, current

Rated power

50 – 99 kV, 4 – 16 mA

1.6 kW (For 1 Second)

170W (Continuous)

Tube



Focal spot size

Total filtration

0.5 mm (IEC60336)

2.8 mm AL (at 50kV)

Image Detector



Type
Pixel size
Active sensor surface

Csl CMOS photodiode array

49.5 μm
135.8 x 36.4 mm

Scan Times



Scan times

From 2 to 18 secs.

Panoramic programs



Panoramic image
Image capture programs for children

17



4



Magnification factor



2D images

1.26

3D volumes





130 x 85 mm diagnostic

130 x 70 mm diagnostic

50 x 50 mm

Device dimensions



Height
Weight
Height adjustment range
Width x Depth

Installation

551/2'' (1406mm)x 881/2'' (2250mm)

396 lbs
33''
473/4'' (1212mm) x 61'' (1545mm)

Wall mounting

Electrical connections



Mains voltage

Frequency

Rated power

200 – 240 V AC

50/60 Hz

2.2 kVA
