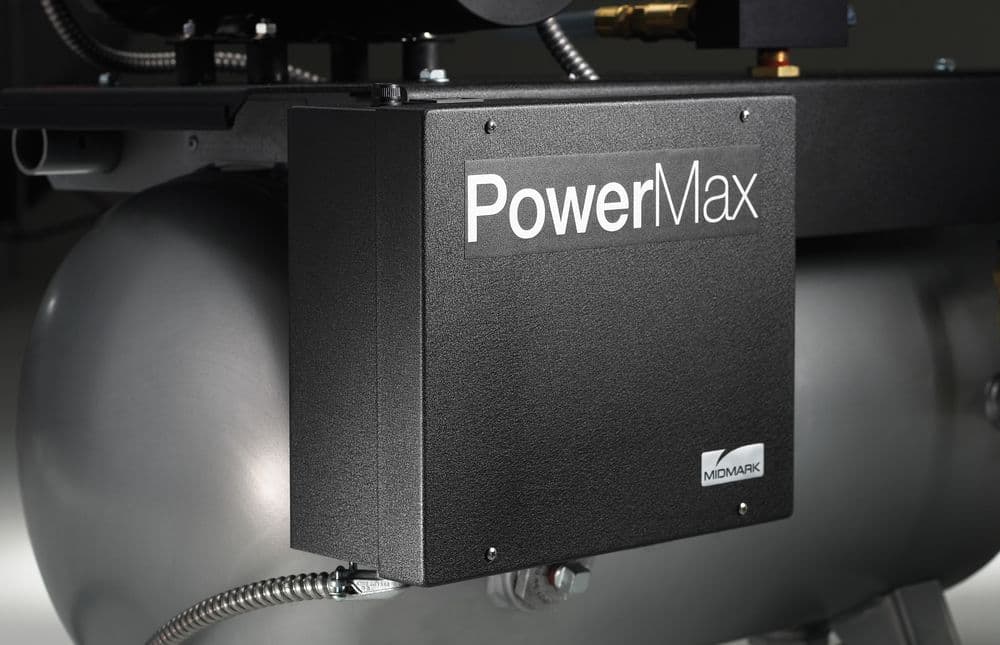

PowerMax Electrical Box

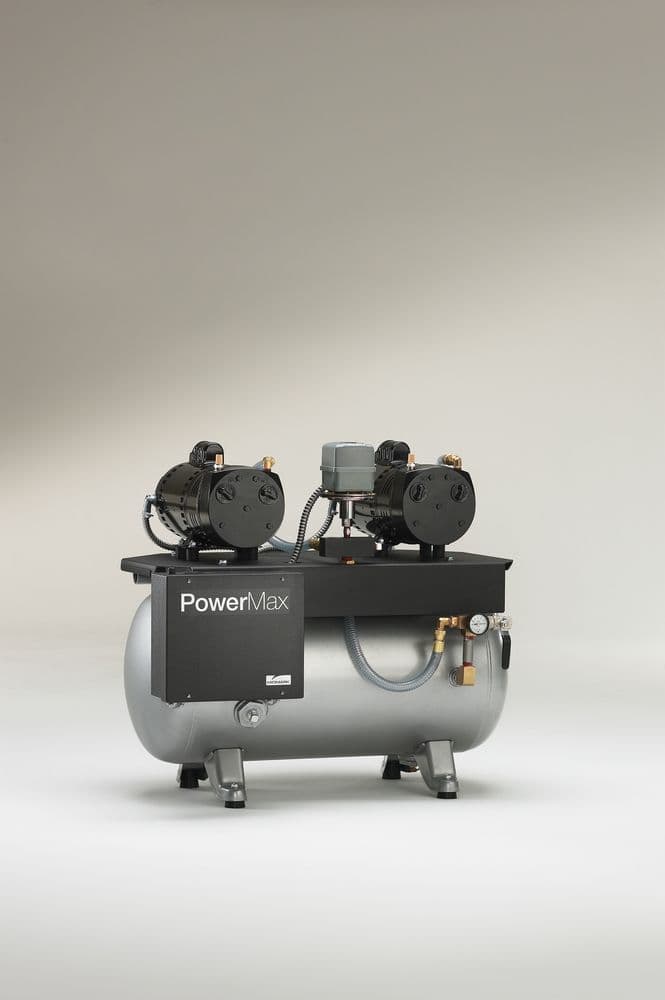

PowerMax

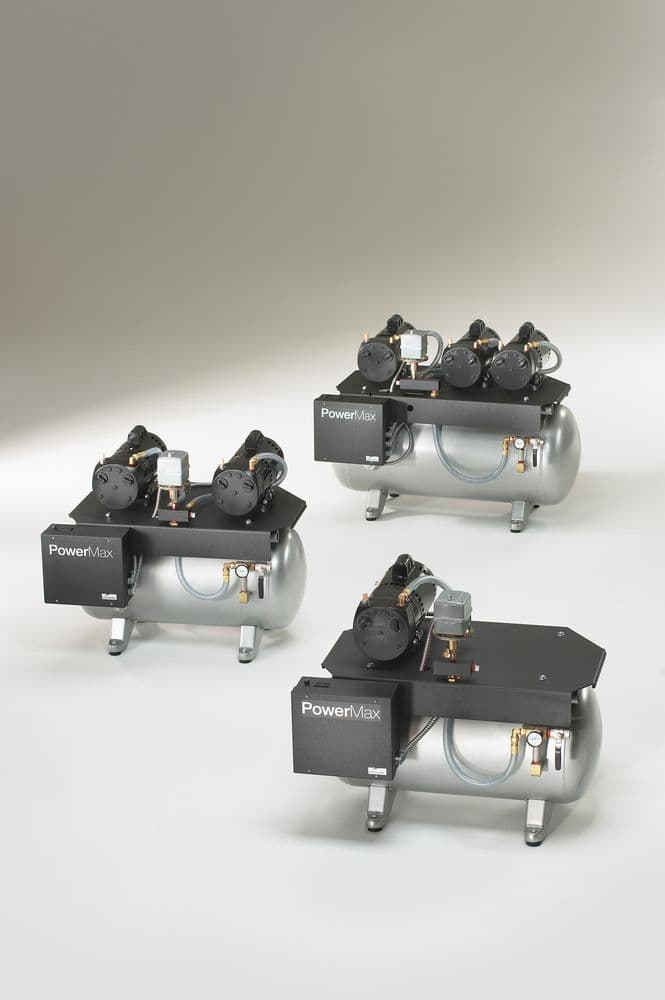

PoweMax Group

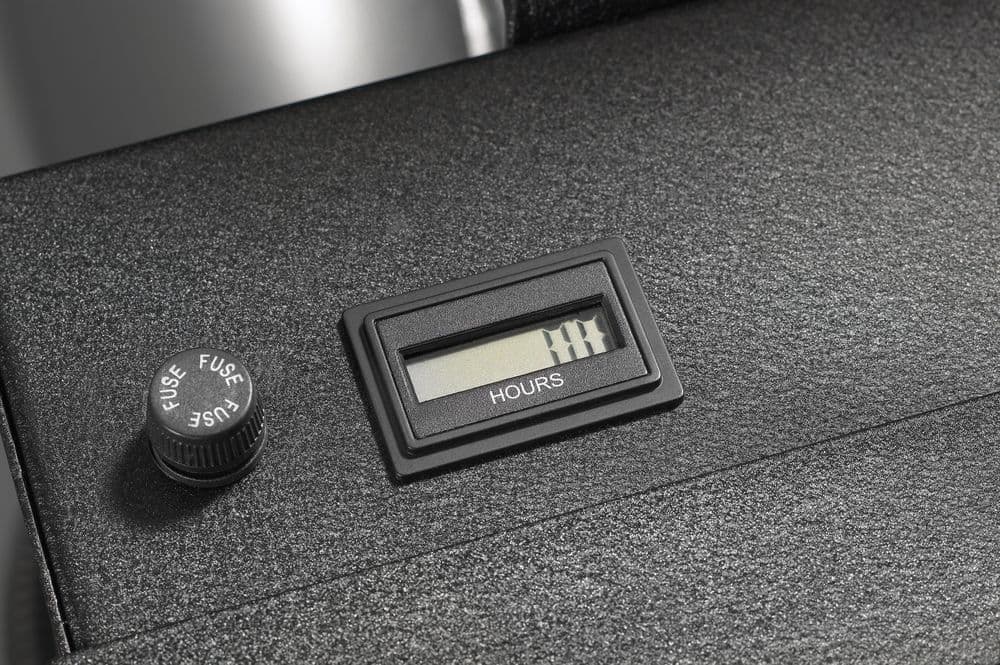

PowerMax Hour Meter
Midmark

Midmark PowerMax High-Performance Vacuums

Designed to provide the maximum amount of pure suction in a dental system and meet the high-demand needs of dental specialists. Unlike typical dental vacuum systems that must continuously operate to provide instantaneous suction, the PowerMax operates only when the supply tank is lower than the chair-side vacuum demand, saving electricity and helping to prom
Let Us Show How It Works
Schedule a Demo
Financing Options Available
Request Financing

Description

Midmark PowerMax Surgical Vacuums are designed to satisfy the needs of oral surgery specialists who demand the highest performance from their vacuum systems. Unlike typical dental vacuum systems that must continuously operate to provide instantaneous suction, the PowerMax operates only when the supply tank is lower than the chair-side vacuum demand, saving electricity and helping to promote the overall longevity of the system. This vacuum gauge is easy to read and comes with rubber mounting feet and 24-V remote control operation for added convenience. For added value, combine the PowerMax surgical vacuum with the surgical recovery room package for in-room containment and management of oral cavity waste.

Designed for High-Performance

  • Vacuum power reaches up to 21" Hg

  • Oil-less rotary-vane vacuum pump provides exceptional reliability

  • Vacuum supply tank is ASME-certified

  • Product warranty covers 2 years

  • Compliance rates at NFPA 99C level 3

  • Equipment is UL/CUL classified

Specifications

Model: PM-1
Number of users: 1
Total HP: 1 @ 3/4 HP
Size (H x W x D): 31" x 32" x 25"
Tank capacity: 20 gal
User capacity: 1
Electrical: 230 V @ 5.1 A
CFM maximum: 8
Dedicated circuit size: 20 A
Line Frequency: 50/60 Hz
Temperature range (°F): 40-104
Shipping weight: 205 lb

Model: PM-3
Number of users: 2-3
Total HP: 2 @ 3/4 HP
Size (H x W x D): 31" x 32" x 25"
Tank capacity: 20 gal
User capacity: 2-3
Electrical: 230 V @ 9.7 A
CFM maximum: 16
Dedicated circuit size: 20 A
Line frequency: 50/60 Hz
Temperature range (°F): 40-104
Shipping weight: 255 lb

Model: PM-4
Number of users: 3-4
Total HP: 3 @ 3/4 HP
Size (H x W x D): 34" x 38" x 27"
Tank capacity: 20 gal
User capacity: 3-4
Electrical: 230 V @ 14.3 A
CFM maximum: 24
Dedicated circuit size: 20 A
Line frequency: 50/60 Hz
Temperature range (°F): 40-104
Shipping weight: 355 lb
