Planmeca ProSensor® HD Intraoral Sensor (Sensor Only)
The Planmeca ProSensor HD intraoral sensor offers unparalleled usability, without compromising image quality. Engineered with durable housing, an HD class CMOS sensor and comfortable, rounded edges for maximum patient comfort, this Planmeca sensor is your go-to imaging partner for advanced diagnostics.
Description

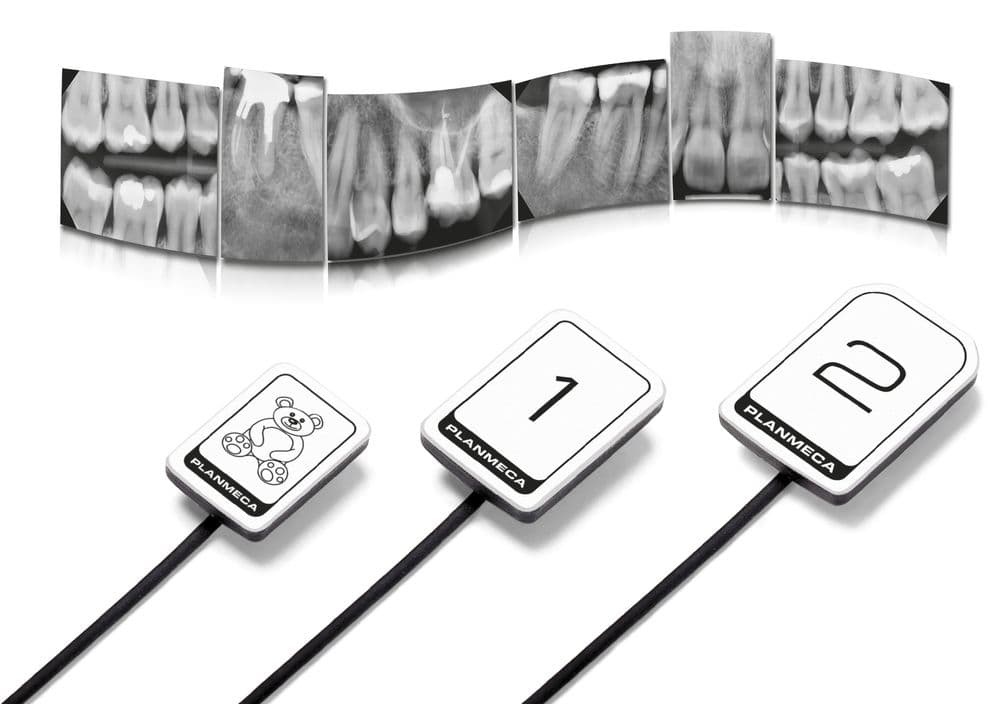

With usability, image quality and easy positioning as the cornerstones of its design, the Planmeca ProSensor HD intraoral sensor delivers exceptional performance and comfort. This sensor is engineered to produce sharp images with low noise and high contrast, supporting advanced diagnostics and enhancing treatment planning from the start. Available in three different sizes — 0, 1 and 2 — it caters to a wide range of patient needs, with rounded corners to ensure comfort. The Planmeca ProSensor HD also integrates effortlessly with the Planmeca ProX™ intraoral X-ray unit, facilitating an efficient and seamless workflow.
- Enhanced image quality. The Planmeca ProSensor HD dental X-ray sensor offers a true resolution of over 20 mm, delivering high-definition image quality with an impressively wide dynamic range
- Advanced usability. Equipped with a magnetic connector that easily snaps into place, this Planmeca sensor features a color-coded LED light for instant visual feedback, ensuring smooth functionality
- Hermetically-sealed design. Constructed with airtight housing, the Planmeca ProSensor HD prevents the entry of bacteria, fluids and other contaminants, ensuring a hygienic imaging experience
- Layered durability. Designed for resilience, it offers multiple layers of protection against bite marks, drops, shocks and more, featuring a carbon fiber plate, a shock-absorbing layer and Kevlar®-wrapped wiring
- Easy visibility. This digital dental sensor's white external housing enhances visibility, making positioning within the mouth easier for both clinicians and patients
- Seamless integration. The Planmeca ProSensor HD intraoral sensor is fully compatible with the Planmeca ProX intraoral X-ray unit, offering an uncluttered workflow for seamless efficiency and digital convenience
Specifications
Sensor Type CMOS with scintillator
Pixel Size 15 μm x 15 μm
Sensor Dimensions
Size 0
overall 33.6 x 23.4 x 7.1* mm (1.33 x 0.92 x 0.28 in.) active area 25.5 x 18.9 mm (1.00 x 0.74 in.) pixel matrix 1700 x 1258 number of pixels 2.14 M
Size 1
overall 39.7 x 25.1 x 7.1* mm (1.56 x 0.99 x 0.28 in.) active area 30.6 x 20.7 (1.20 x 0.81 in.) pixel matrix 2040 x 1380 number of pixels 2.82 M
Size 2
overall 44.1 x 30.4 x 7.1* mm (1.74 x 1.2 x 0.28 in.) active area 36 x 26.1 mm (1.42 x 1.03 in.) pixel matrix 2400 x 1740 number of pixels 4.18 M
*thickness without the cable
Image Sizes
Size 0 850 x 629 (0.5 MP)/ 1700 x 1258 (2.13 M)
Size 1 1020 x 690 (0.7 MP)/ 2040 x 1380 (2.82 M)
Size 2 1200 x 870 (1.0 MP)/ 2400 x 1740 (4.18 M)
Image Format 16-bit
View Delay ~5 sec.
Resolution
Normal 17 lp/mm
High > 20 lp/mm
Theoretical Resolution 33 lp/mm
Cable Length 1.0 m (39.4 in.) or 2.0 m (78.7 in.)
Expected Service Life 10 years / 100 000 exposure cycles
Ethernet ControlBox
Dimensions 112 x 46 x 24 mm (4.41 x 1.81 x 0.94 in.)
Power Input 48 V DC 65 mA
Cables
ControlBox to PoE RJ45 10m OR 15m
PoE to LAN RJ45 10m OR 15m
PoE Power Supply
Phihong Single Port Injector
Type:
PSA16U-480 (POE)
POE15M-1AF/POE15M-1AFE-R
Input Voltage
100-240 VAC (50-60 Hz)
100-240 VAC (50-60 Hz)
Output Voltage
48 VDC
56 VDC
Max. Output Current
0.35 A
0.275 A
Insulation Voltage Primary-Secondary
3000 VAC
3000 VDC
USB ControlBox
Dimensions 112 x 46 x 24 mm (4.41 x 1.81 x 0.94 in.)
Cables Fixed USB 2.0 power supply cable 2 or 5m (6.6 or 16.4 ft)
Power input 2.5 W
