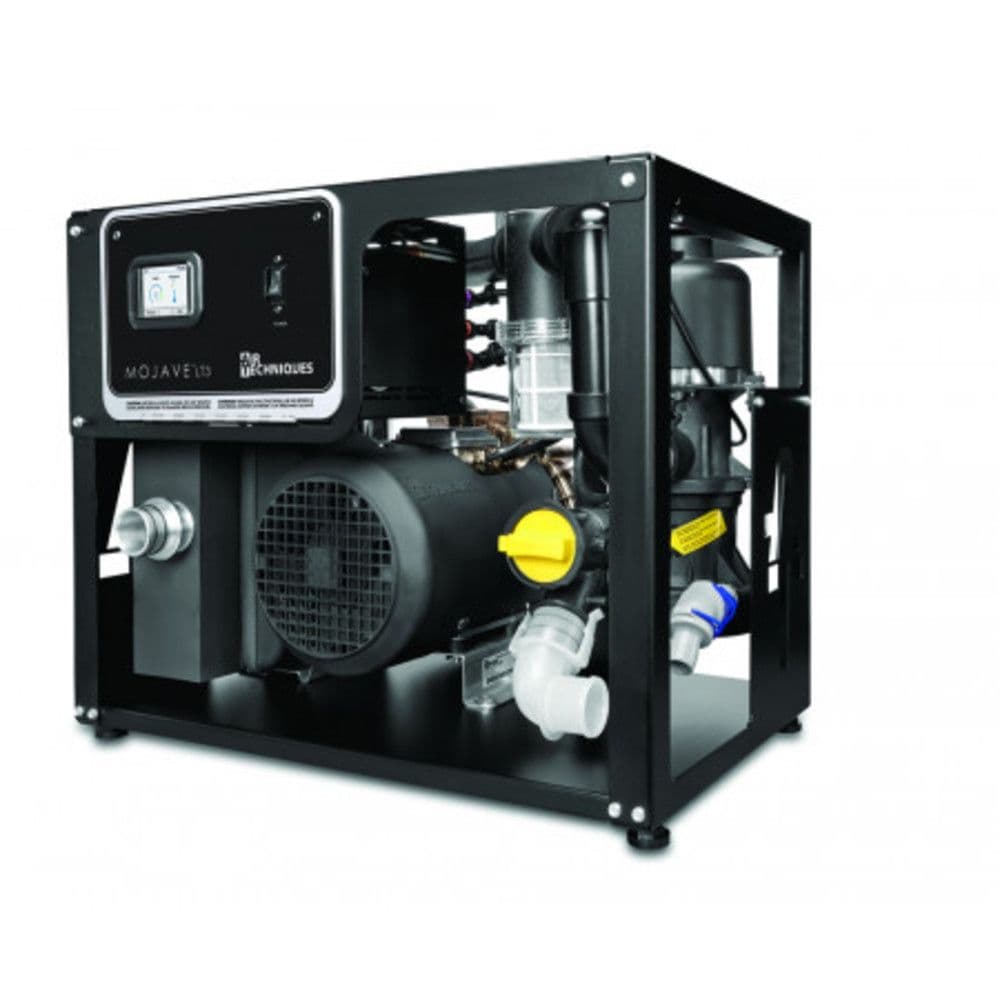

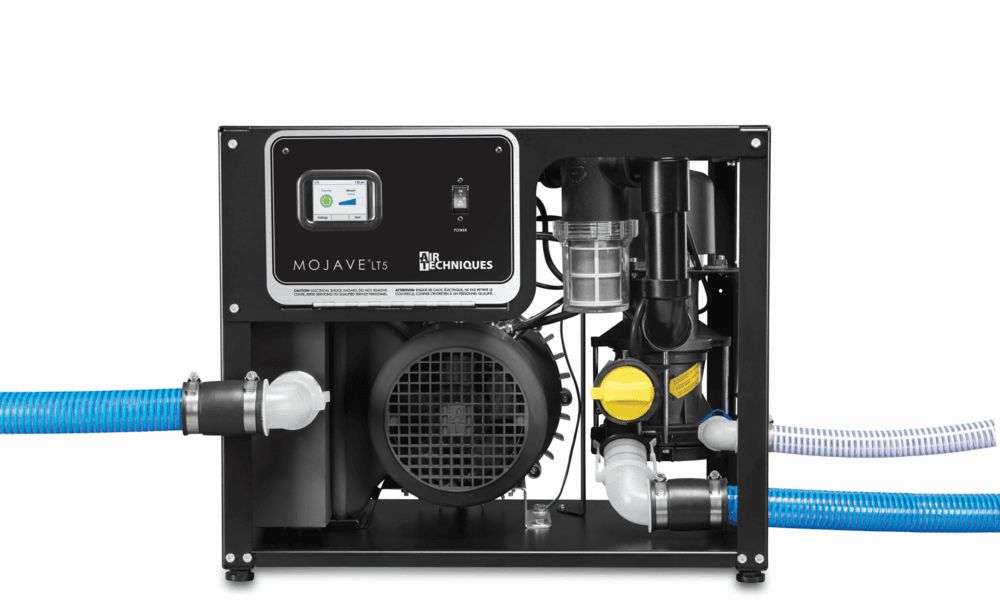

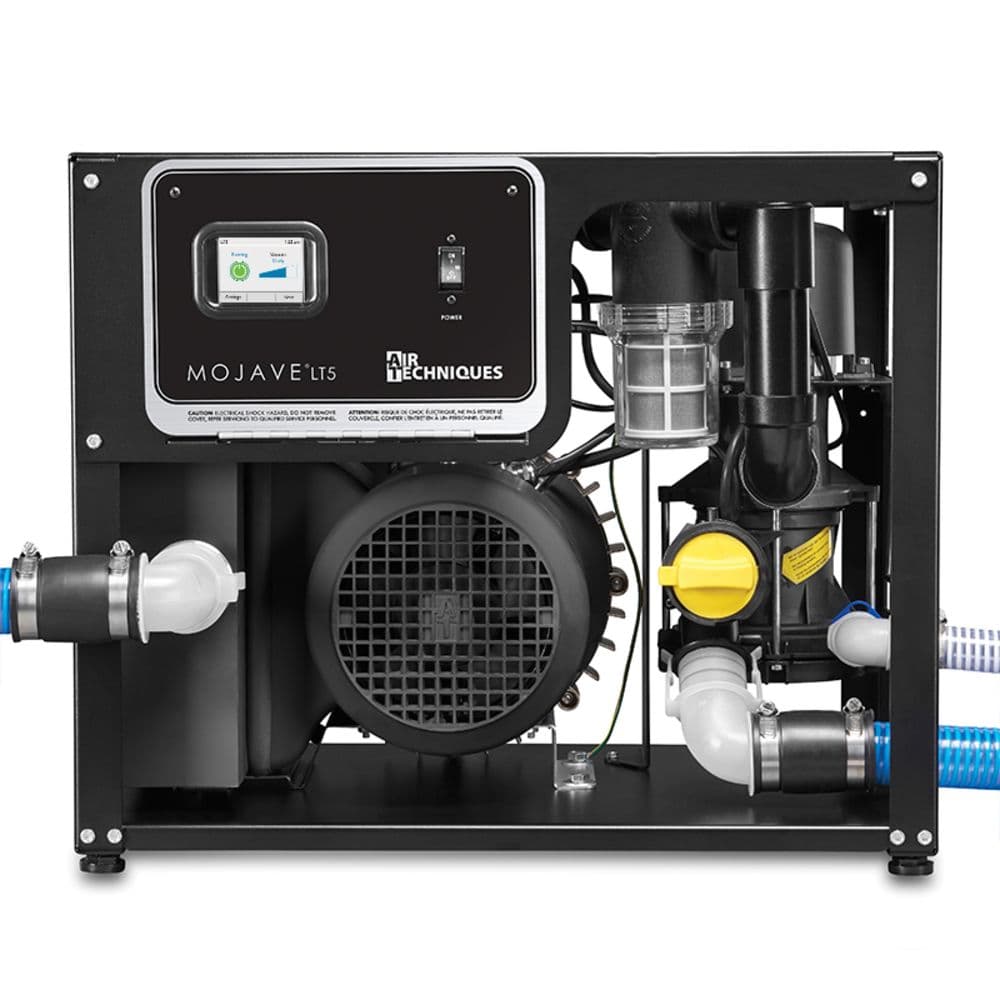

Air Techniques Mojave Monitor LT Series Dry Vacuum System
• Sound-reducing impeller design
• 3-phase motor generates higher torque and less heat
• Extended heat-resistant motor bearings
• All wetted metal parts are nickel plated or stainless steel
• Aluminum high performance air-exhaust heat exchanger
• Rugged metal chassis
Description
The Smart Choice. Air Techniques Mojave Monitor LT Series Dry Vacuum System are designed to provide the highest operational performance with low operating costs and virtually no maintenance, all in a compact footprint. Air Techniques Mojave Monitor LT Series Dry Vacuum System is the latest technological achievement of the Air Techniques development team. Designed to replace conventional liquid ring pumps and to be completely 100% water-free, the LT ditches the collection tank for a motor driven air/water separator. A 1.5 HP variable frequency driven (VFD) regenerative blower is engineered to deliver the highest performance while hardly making a sound. The compact size of the LT allows it be installed in any practice, even inside cabinets. Equipped with a vibrant multi-color touch screen display, the LT is super easy to setup and is constantly monitoring itself to make sure it’s running optimally at all times. Hook it up with NEO Pulse front-of-office software to complete the most advanced utility room monitoring system available. Whether it`s time to replace your current vacuum, considering the refurbishment of your practice or even building a new facility, Air Techniques Mojave Monitor LT Series Dry Vacuum System is your solution.
Specifications
Max. Users 2-4
SCFM @ 7inHg 22
Horsepower 1.4
Panel Circuit Breaker 20(S)
Voltage (min/max) 198/242 Frequency 50/60 Hz
Dimensions W x D x H (in) 24 x 16.5 x 20
Weight (lbs) 145
Part No. LT5
Max. Users 4-6
SCFM @ 7inHg 22
Horsepower 1.7
Panel Circuit Breaker 20(S)
Voltage (min/max) 198/242 Frequency 50/60 Hz
Dimensions W x D x H (in) 24 x 16.5 x 20
Weight (lbs) 145
