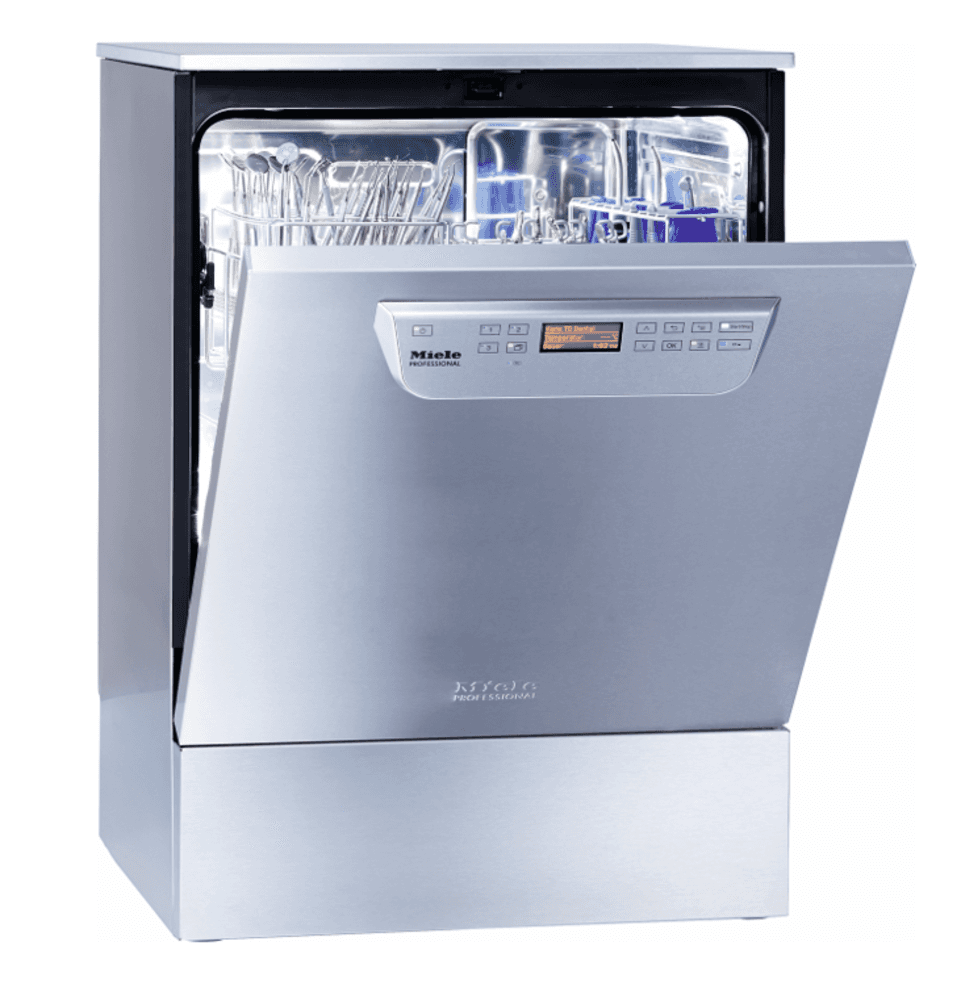

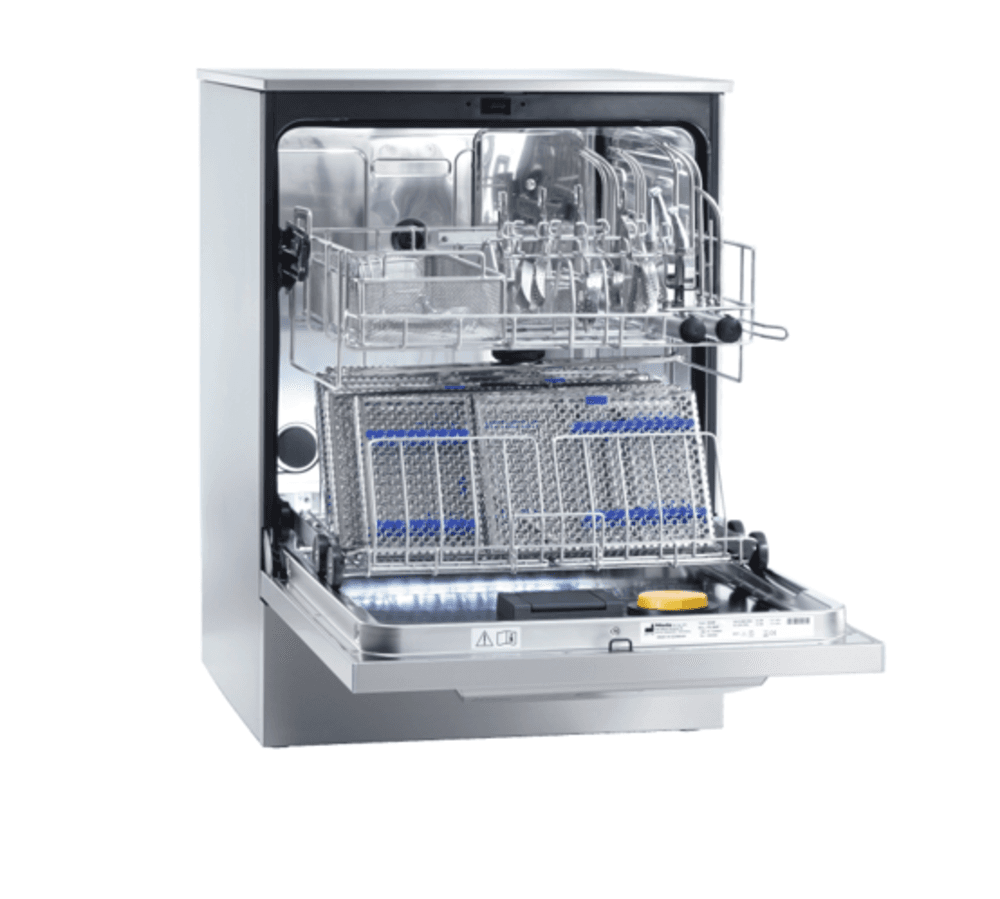

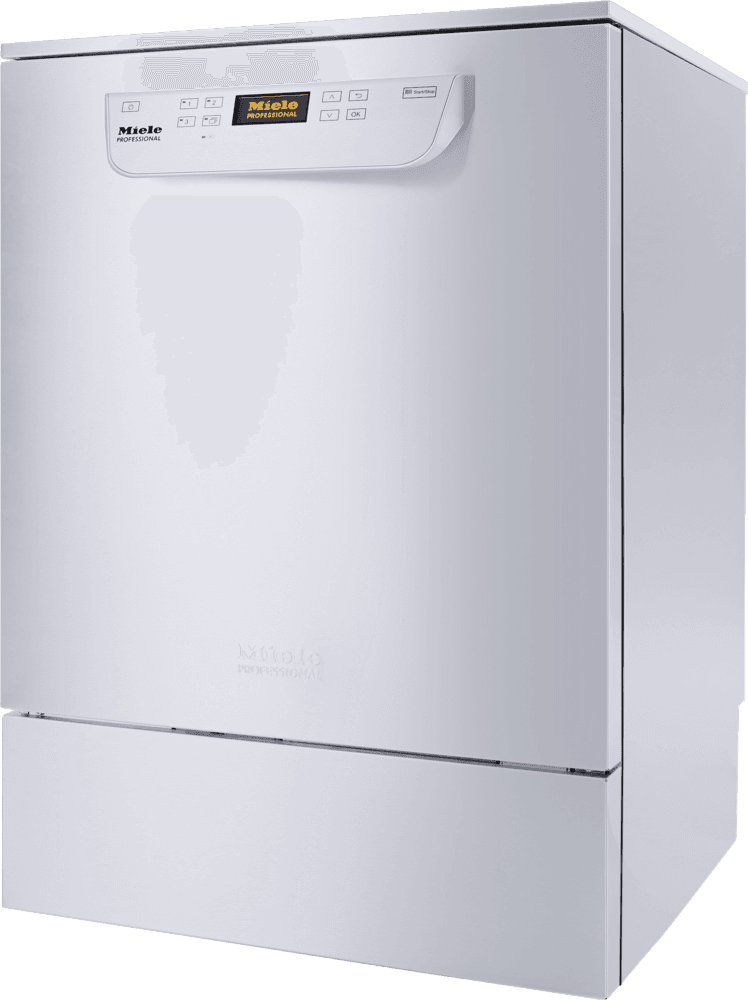

Miele Inc. PG 8581 Undercounter Washer Disinfector
-Efficient use of resources - variable speed heater pump
-Safety through monitoring - wash pressure and spray arm monitoring
-Convenient drying support - EcoDry
Description
The Miele PG 8581 dental washer-disinfector allows safe and consistently reproducible cleaning and disinfection of dental instruments and hand pieces. As a certified FDA Class II Medical Device, the PG 8581 offers the Miele exclusive Vario TD Dental 93 ̊C thermal-disinfection cleaning program, providing the highest assurance of instrument cleaning prior to sterilization. Other key benefits include a repeatable and verifiable clean through automatic washing, increased staff and patient safety with less handling of instruments, and lowered energy, water and chemical use.
Available in 3 different bundles:
- Package 1 - Basic cassettes
- Package 2 – Universal
- Package 3 - Specialty
Specifications
Unit Dimensions
Machine dimensions H x W x D [mm, in.] 835, 32 ⅞ x 600, 23 ⅝ x 600, 23 ⅝
Chamber size [L, cu.ft] 145, 5.12
Usable wash cabinet H x W x D [mm, in.]520, 20 ½ x 530, 20 ⅞ x 520 20 ½
Electrical
Default
2AC 208V 30A 60Hz / 6.2KW / 3 x AWG 10; NEMA L6-30R required on site
Option
3AC 208V 20A 60Hz
Plumbing
Cold water
2 x ¾ in. MGHT required on site / Flow rate 2 gpm (7.5L/min.) / Water pressure 14.5-145 psi (100-1,000 KPa), pressurized
Hot water
1 x ¾ in. MGHT required on site / Flow rate 2 gpm (7.5L/min.) / Water pressure 5.8-145 psi (40-1,000 KPa), pressurized
DI water
1 x ¾ in. MGHT required on site / Flow rate 2 gpm (7.5L/min.) / Water pressure 4.4-145 psi (30-1,000 KPa), pressurized. Below 29 psi = booster pump
Drain connection
1 x ¾ in. Barbed connector required on site / Flow rate 4.2 gpm (16L/min.)
