Midmark ClassicSeries® - Wet-Ring Vacuum

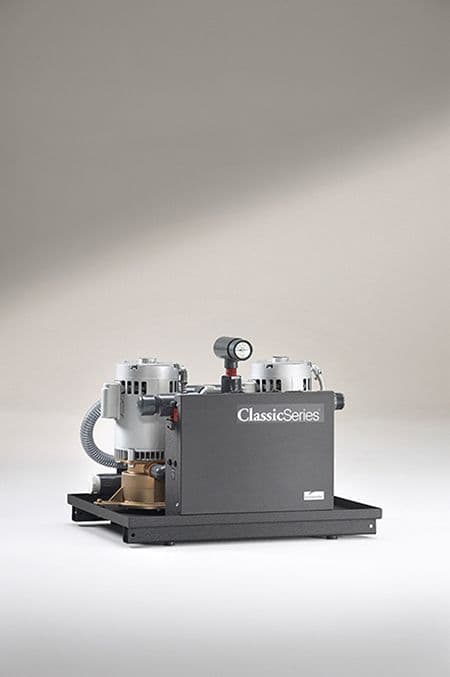

Midmark ClassicSeries Wet-Ring Vacuums allow dental offices to minimize fresh water consumption and save space with a compact design. Enjoy the best features and proven technologies of our trusted predecessor machines in one integrated offering.

Let Us Show How It Works

Schedule a Demo

Financing Options Available

Request Financing

Description

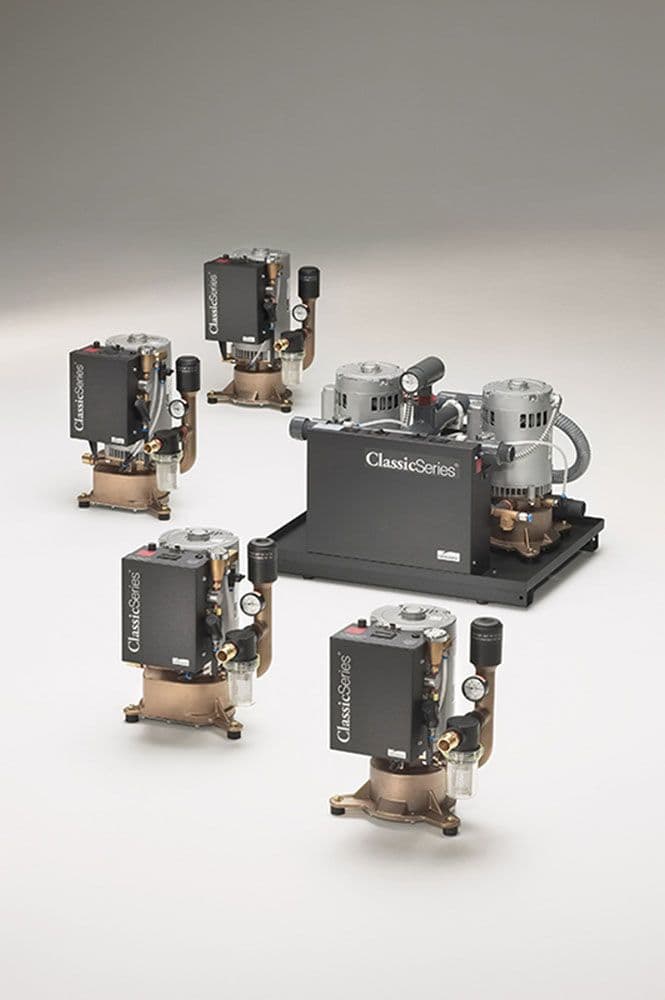

High output, proven performance
Sound-reducing mufflers are standard
Exclusive internal water recycling
Water recycling by-pass
100% long-term burn-in testing

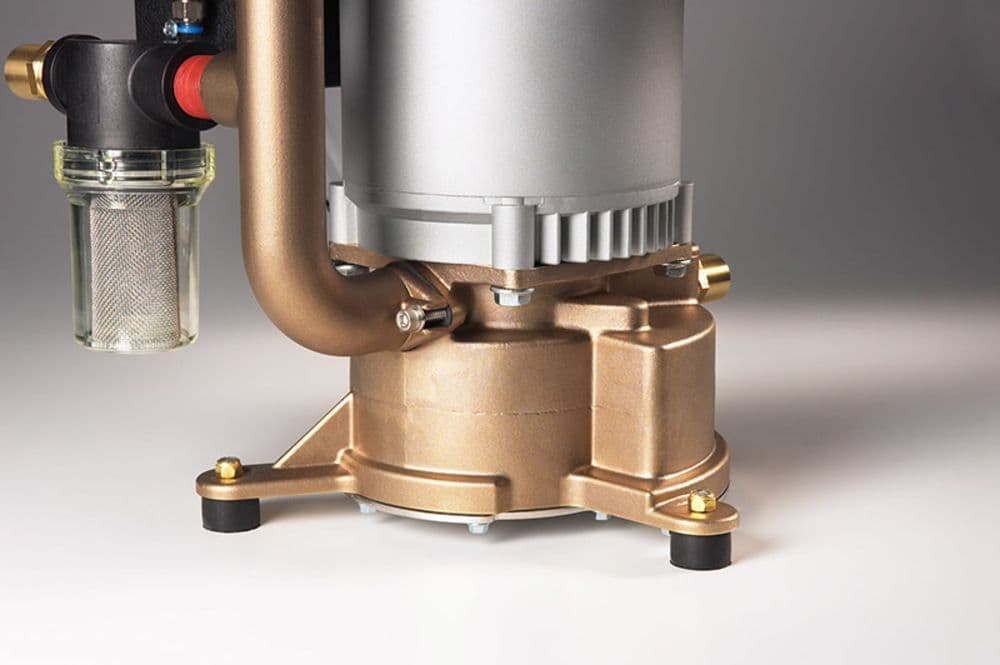

Durable aluminum bronze construction
NFPA 99C level 3 compliant
UL/CUL classified
Unmatched, product warranty – 5-year/10,000-hour full-product warranty

Specifications

Singles
Order No.	CV3	CV3R	CV5	CV5R
Horsepower	1.25 HP	1.25 HP	2 HP	2 HP
Size (H x W x D)	15" x 12" x 13"	15" x 12" x 13"	17" x 12" x 13"	17" x 12" x 13"
User Capacity	3	3	5	5
Water Recycling	No	Yes	No	Yes
Voltage-Single Phase	115/230	115/230	230	230
Amperage	15.0/7.5	15.0/7.5	13	13
Circuit Breaker (Amp)	20	20	20	20
Line Frequency	50/60 Hz	50/60 Hz	50/60 Hz	50/60 Hz
Shipping Weight	70 lb	70 lb	76 lb	76 lb

Twins
Order No.	CV6	CV6R	CV10	CV10R
Horsepower	2.5 HP	2.5 HP	4 HP	4 HP
Size (H x W x D)	18.5" x 25.5" x 20"	18.5" x 25.5" x 20"	18.5" x 25.5" x 20"	18.5" x 25.5" x 20"
User Capacity	6	6	10	10
Water Recycling	No	Yes	No	Yes
Voltage-Single Phase	115/230	115/230	230	230
Amperage	15.0/7.5	15.0/7.5	26/13	26/13
Circuit Breaker (Amp)	20 x 2	20 x 2	20 x 2	20 x 2
Line Frequency	50/60 Hz	50/60 Hz	50/60 Hz	50/60 Hz
Shipping Weight	188 lb	188 lb	208 lb	208 lb
