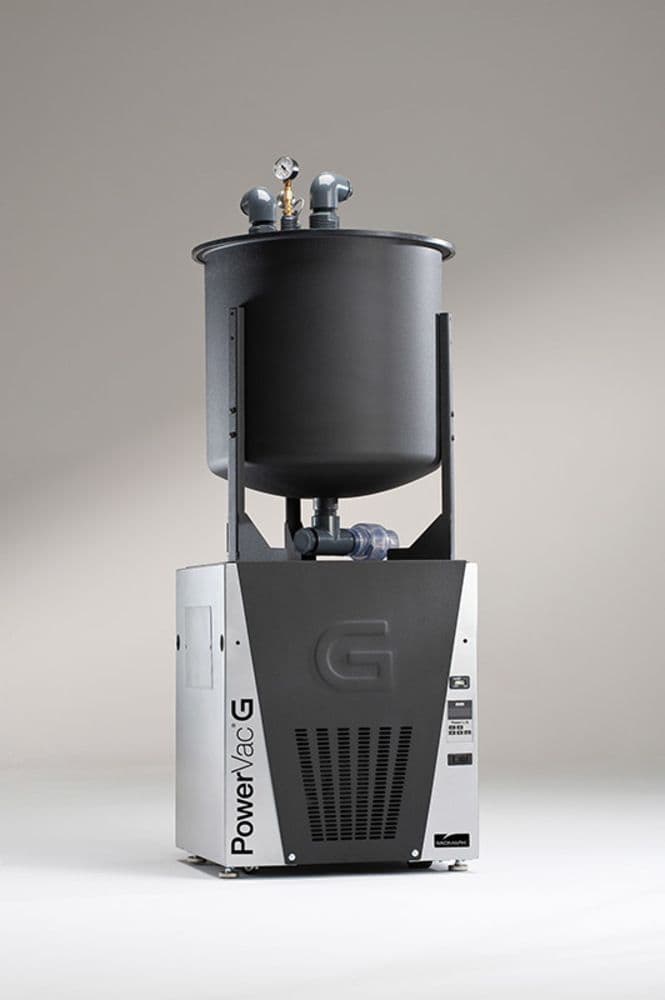

Midmark PowerVac® G Dry Vacuum
on-demand suction for maximum efficiency. Many vacuums operate at full force regardless of demand. The PowerVac G automatically increases the pump speed to match demand, maintaining a constant vacuum level to give you exactly the vacuum you need, no more and no less.
Description
The Midmark PowerVac® G provides on-demand energy management that creates a new standard for dental vacuums. Other vacuums operate at full force regardless of demand. The PowerVac G automatically increases the pump speed to match demand, maintains a constant vacuum level and gives you exactly the vacuum you need, no more and no less. Then, if five seconds pass without activity, the PowerVac G switches to Sleep Mode, reducing energy consumption by as much as 83%.
• Same features as the PowerVac® with additional benefits
• Efficient energy control – uses up to 83% less electricity than competitive systems
• Significant heat reduction – reduces heat emissions by up to 30%
• Whisper-quiet operation – as low as 48 dBA
• Consistent high-performance – up to 18” Hg

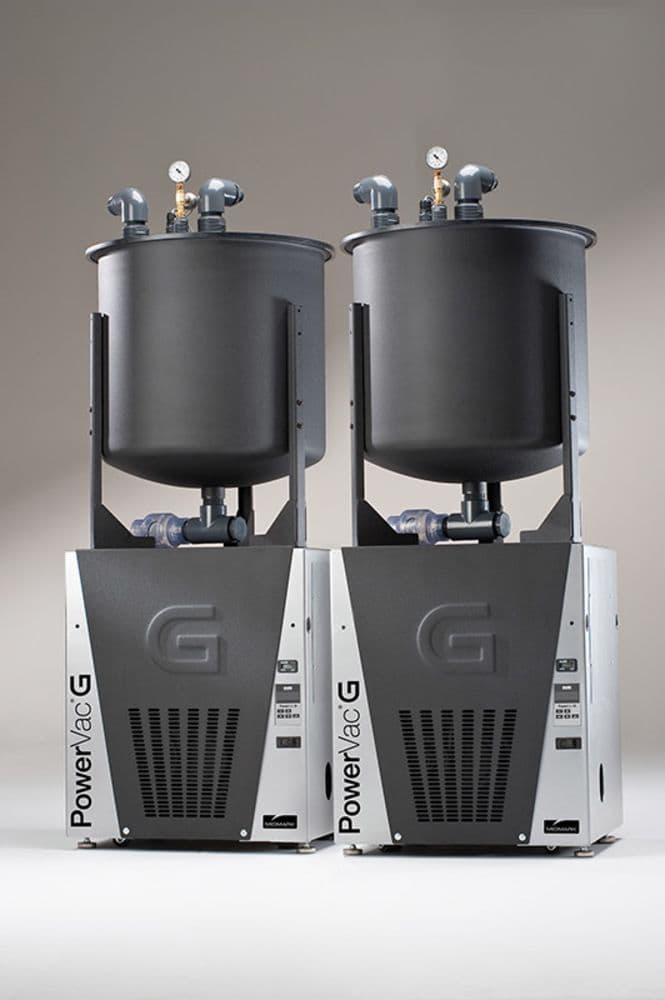

• Upgradable flexibility – can accommodate 1–20 users

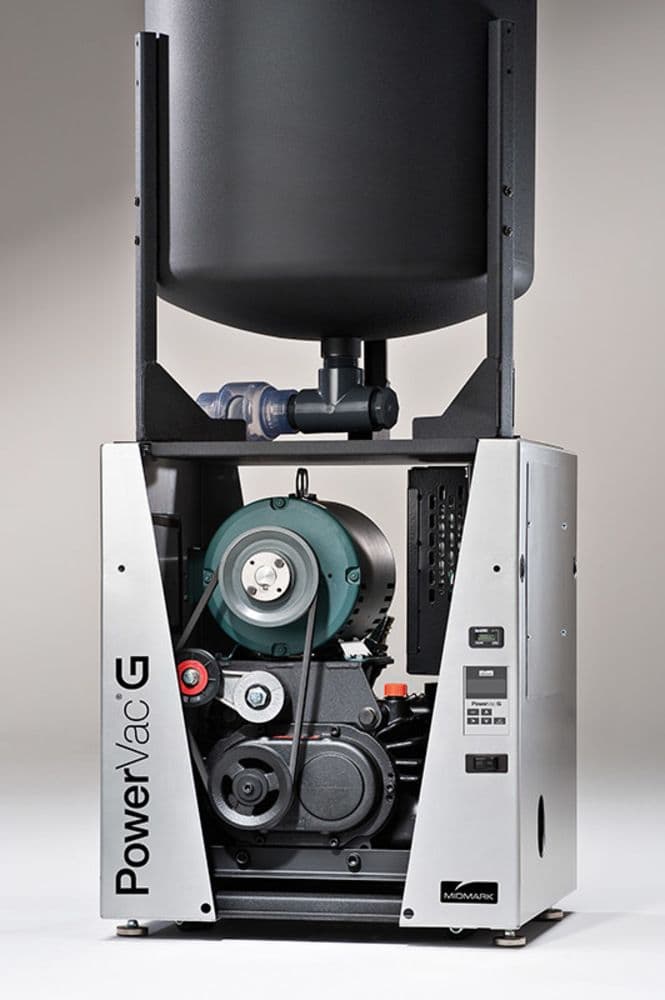

• Unmatched, product warranty – 5-year/10,000 hour full-product; 10-year/20,000 hour pump warranty
• Complies with NFPA 99C level 3

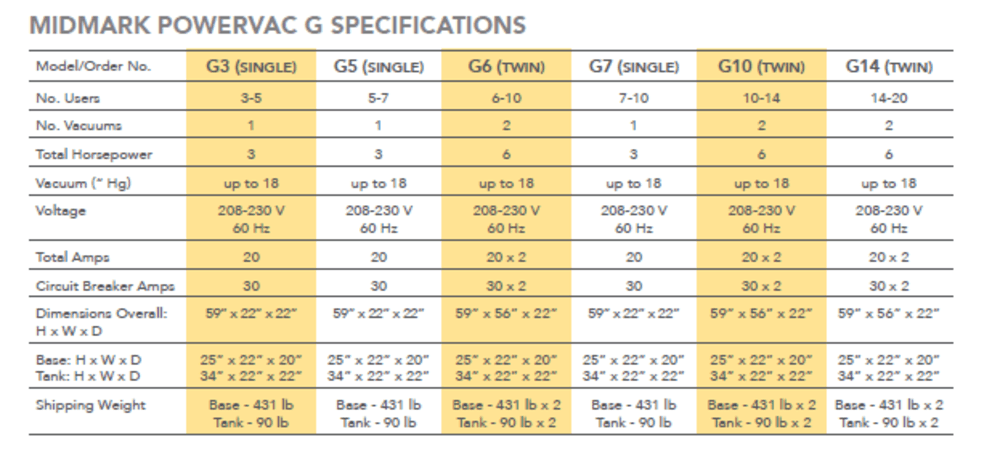

Specifications
Single Specifications |
||||||||
Order No. Model |
No. Users |
No. Vacuums |
Total HP |
Voltage |
Total Amps |
Dimensions Overall: H x W x D |
Base: H x W x D Tank: H x W x D |
Shipping Weight |
G3 |
3-5 |
1 |
3 |
208-230 |
20 |
59" x 22" x 22" |
25" x 22" x 20" |
Base – 431 lb |
|
|
|
|
60 Hz |
|
|
34" x 22" x 22" |
Tank – 90 lb |
G5 |
5-7 |
1 |
3 |
208-230 |
20 |
59" x 22" x 22" |
25" x 22" x 20" |
Base – 431 lb |
|
|
|
|
60 Hz |
|
|
34" x 22" x 22" |
Tank – 90 lb |
G7 |
7-10 |
1 |
3 |
208-230 |
20 |
59" x 22" x 22" |
25" x 22" x 20" |
Base – 431 lb |
|
|
|
|
60 Hz |
|
|
34" x 22" x 22" |
Tank – 90 lb |
Twin Specifications |
|||||||
Order No. Model |
No. Users |
No. Vacuums |
Total HP |
Voltage |
Total Amps |
Dimensions Overall: H x W x D |
Shipping Weight |
G6 |
6-10 |
2 |
6 |
208-230 |
20 x 2 |
59" x 56" x 22" |
Base – 431 lb x 2 |
|
|
|
|
60 Hz |
|
|
Tank – 90 lb x 2 |
G10 |
10-14 |
2 |
6 |
208-230 |
20 x 2 |
59" x 56" x 22" |
Base – 431 lb x 2 |
|
|
|
|
60 Hz |
|
|
Tank – 90 lb x 2 |
G14 |
14-20 |
2 |
6 |
208-230 |
20 x 2 |
59" x 56" x 22" |
Base – 431 lb x 2 |
|
|
|
|
60 Hz |
|
|
Tank – 90 lb x 2 |
