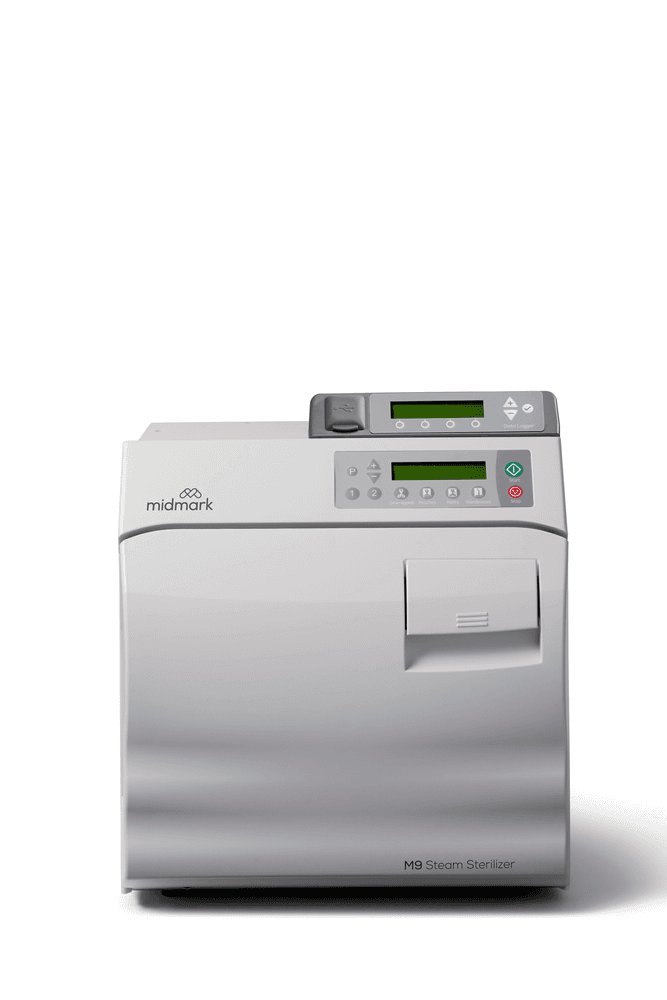

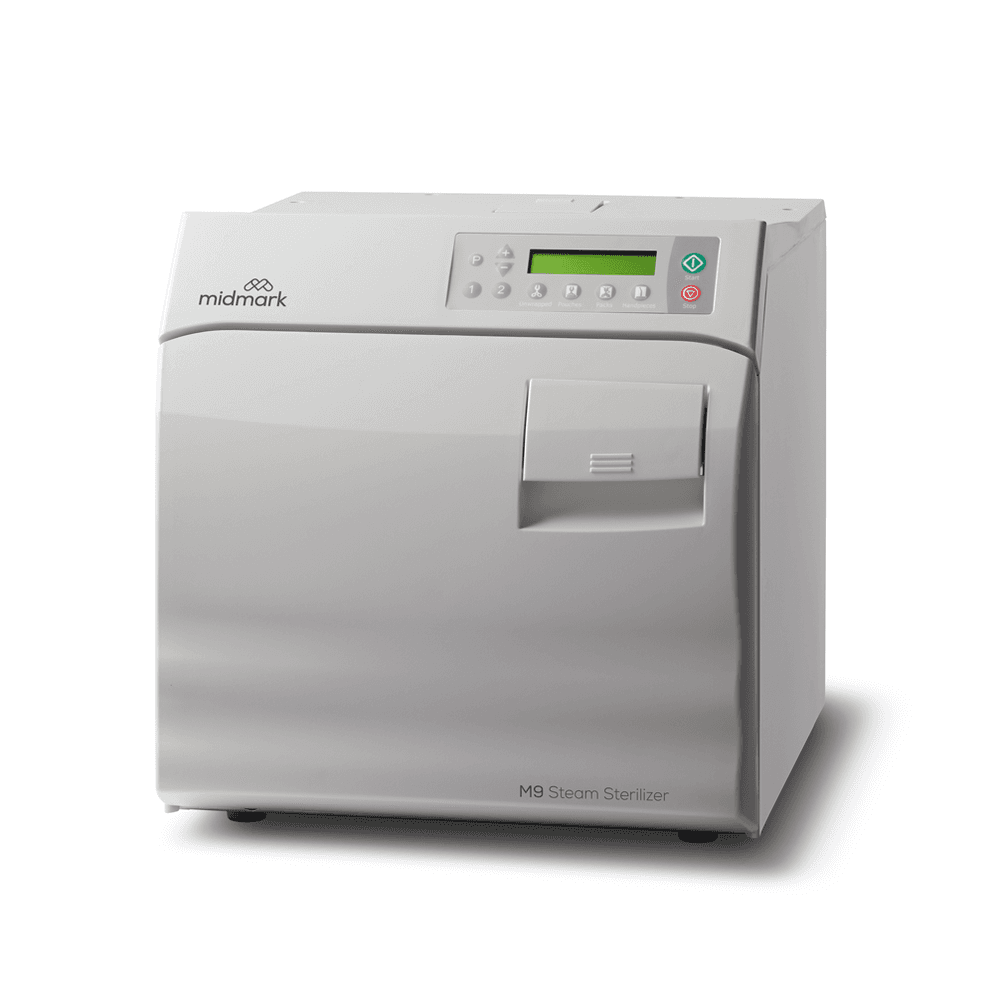

Midmark M9® Steam Sterilizer
Description
The Midmark M9 Steam Sterilizer uses a small footprint to drive big productivity. If space is limited in your steri-center, the M9 makes a good fit. This sterilizer is designed to help optimize your instrument processing workflow while maintaining safe and reliable sterilization.
• Patented, automatic-open door drying to promote faster, more efficient drying of instruments.
• Four pre-programmed sterilization cycles: Unwrapped, Pouched, Packs, Handpieces
• Programmable controls allow you to change exposure time, temperature, dry time and vent, and store your changes if desired
• Steam-Flush Pressure Pulse Air Removal System designed to ensure proper steam penetration
• LCD display alerts operator if door is not closed completely or reservoir water level is low
• Reservoir fill port and drain tube located in the front of the unit for ease of draining and filling
Specifications
• Overall length w/plug: 20.38" (51.8 cm)
• Overall width: 15.3" (38.9 cm)
• Overall height w/printer: 15.8" (40.1 cm)
• Minimum countertop area: 17.88" (45.4 cm) D x 15.3" (38.9 cm) W Chamber:
• 9" diameter (22.9 cm) • 15" depth (38.1 cm) • 3.5 gal usable volume (13.4 liters) Trays:
• Two large – 7.3" W x 12" L x 0.8" D (18.6 cm x 30.5 cm x 2.2 cm)
• Two small – 5.6" W x 12" L x 0.8" D (14.3 cm x 30.5 cm x 2.2 cm)
• Unit weight: 73 lb (33.1 kg) • Shipping weight: 81 lb (36.7 kg)
• Water reservoir capacity: 1.1 gal (4.1 liters)
Electrical Requirements:
• 115 VAC, 50/60 Hz, 15 A Single Phase
• 115 VAC has 1425 W tubular immersion heater
• 230 VAC, 50/60 Hz, 10 A Single Phase
• 230 VAC has 1500 W tubular immersion heater Safety Standards:
• UL Listed to U.S. & Canadian Standards
• UL61010-1, 2nd Edition
• IEC 61010-2-040, 1st Edition
• CAN/CSA C22.2 No. 61010-1, 2nd Edition
• CSA C22.2 No. 61010-2-040-07, Part 2-040, 1st Edition
• Meets the requirements of ASME Boiler and Pressure Vessel Code
• A separate (dedicated) circuit is recommended for this sterilizer
