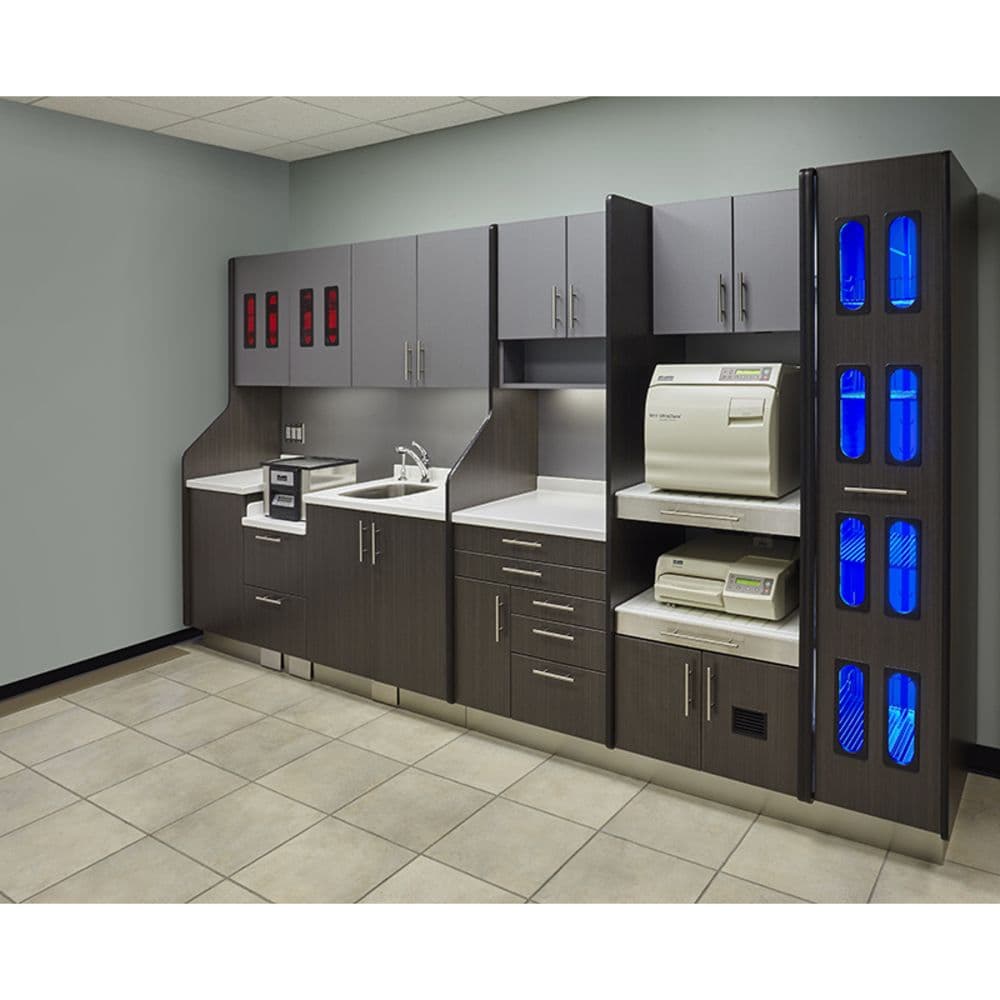

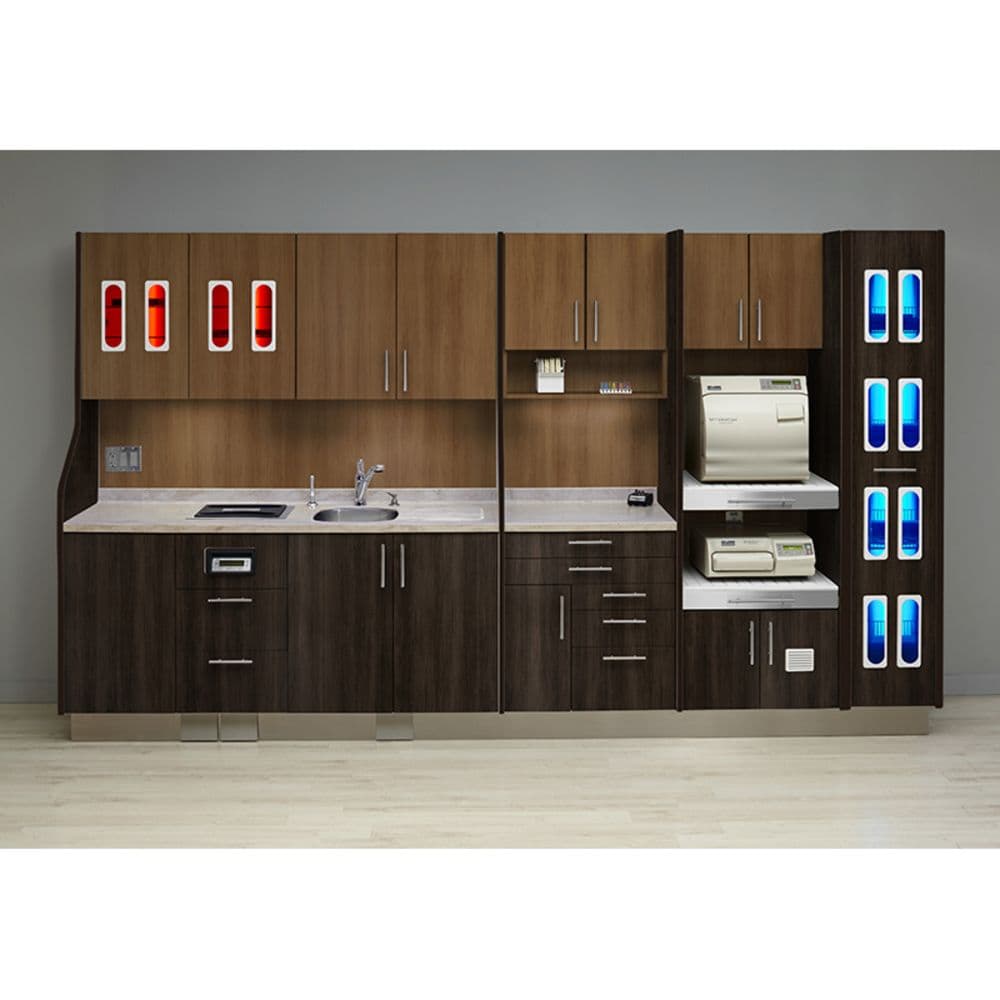

Midmark Artizan® Expressions Streamline Center

The Artizan® Expressions Streamline Center incorporates many important features based on CDC, OSHA and ADA recommendations to facilitate staff efficiency and safety during instrument processing.

Request Quote

Let Us Show How It Works

Schedule a Demo

Financing Options Available

Request Financing

Description

Available in 8', 10' or 12' configurations or custom configurations
Temporary Holding – Compartment provides dedicated storage for soiled instruments prior to processing. Doors open automatically and are available with a hands-free air-glide system. Red illuminated windows indicate the space dedicated for contaminated material.

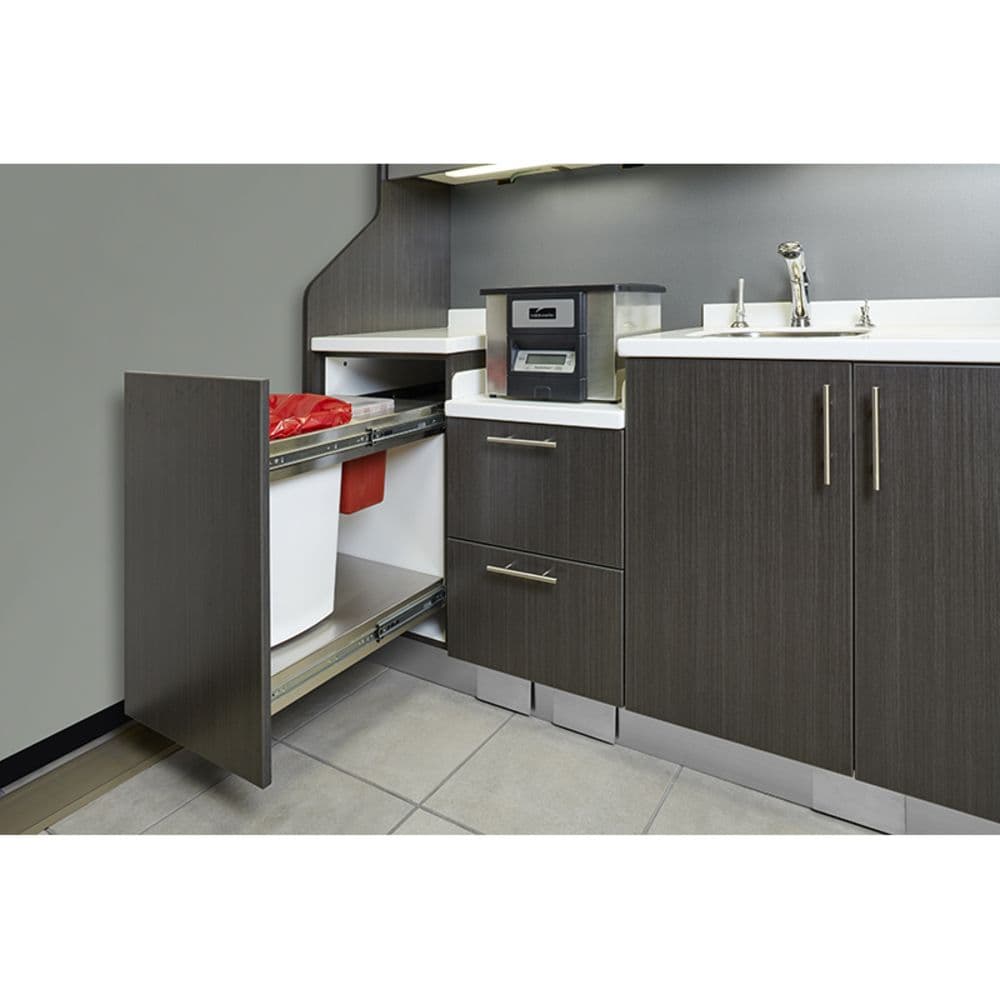

Waste Management – Stainless-steel module includes both full-size waste and bio-hazard containers. Available with the hands-free air-glide system.
Presoak Drawer – Drawer includes an integrated stainless tub with strainer basket that holds up to three full-size IMS® cassettes (only available in a non-recessed ultrasonic cleaner)
Rinsing and Handling – Integrated drainboard with undermount stainless-steel sink and kick-activated extendable spray faucet.
Wrap Station – Two full-size wrap drawers are provided for wrapping IMS cassettes.

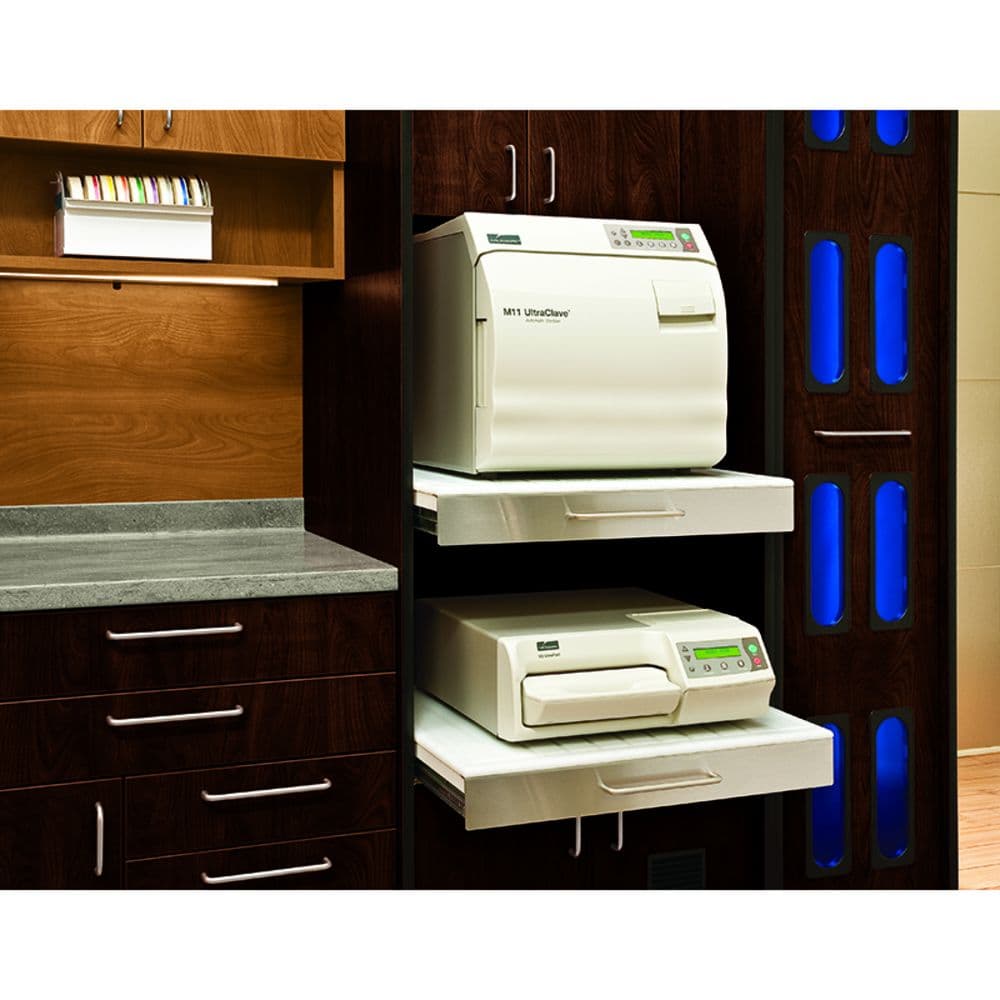

Sterilizer Support – Slide-out shelves include a moisture-proof drainboard surface and stainless-steel front.

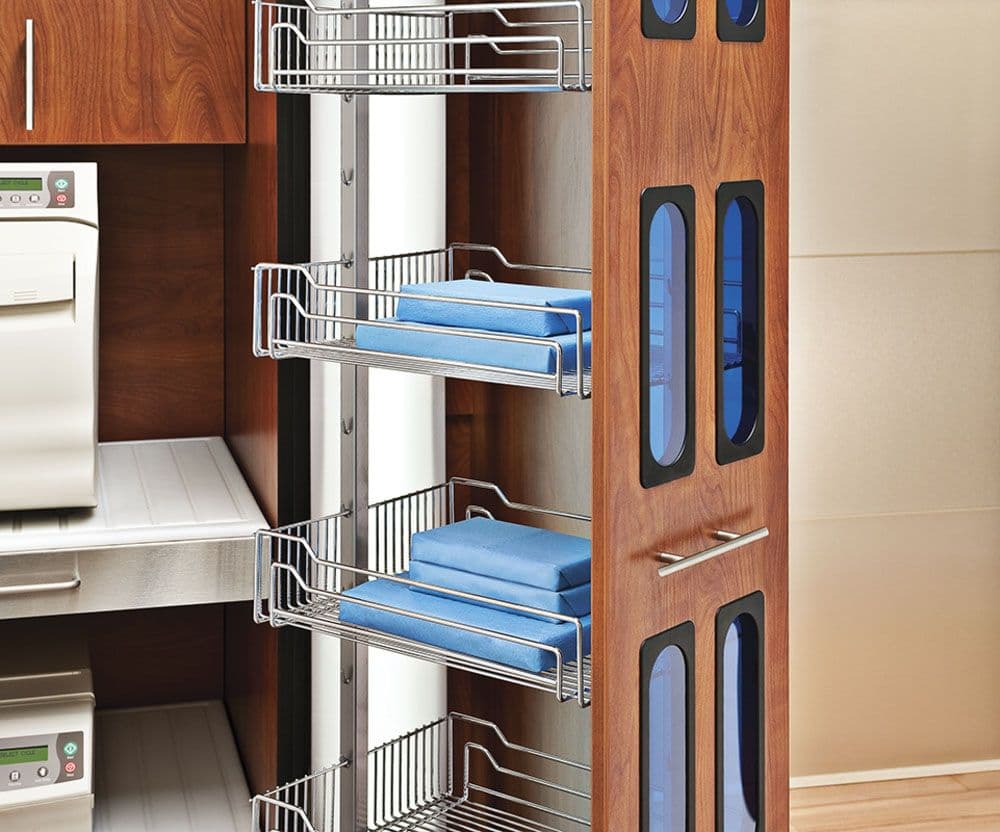

Safe Storage Pantry – Providing a safe area for sterilized cassettes, the storage pantry slides out and swivels 180 degrees, allowing easy access to adjustable baskets. Blue illuminated windows indicate a clean environment.
¾-inch panel wood-dowel construction
Thermally fused melamine panels with 3-mm edgebanding
Brushed-nickel handles
Concealed soft-close steel hinges
Full-extension soft-close drawer systems

Specifications

SC144-200

Red, illuminated upper storage for contaminated instruments, slide-out waste module with regular and bio-hazard containers, ultrasonic module with 2-drawers and provisions for a recessed ultrasonic, Delta^® retractable spray faucet and soap dispenser, undermounted 14" x 18" x 8" stainless steel sink, wrap station with two full-size warp drawers, tape alcove, and 4-instrument storage drawers, Drawer insert (1) for pouches and disposables, autoclave tower with slide-out drainboard shelves for full size sterilizers. Includes vented door with drainboard for overflow bottle, blue illuminated clean storage tower with 50-adjustable racks, L-shaped panels between processing areas, electric chase with wiring system including 3-task lights, 2-outlets, switch, and separate circuits for 2-sterilizers, ultrasonic, and outlets/lights

Overall dimensions: 29 1/8"D x 83 1/4"H x 143"L
Solid surface countertop with undermount stainless sink
Matching 3mm edgebanding
Brushed nickel handles
Soft-close doors and drawers
Stainless toe-kick base panel
Complete wiring system including task lighting, outlets, and separate sterilizer and ultrasonic circuits

Storage

Wrap station with two full-size wrap drawers, tape alcove and 4 instrument storage drawers
Drawer insert (1) for pouches and disposables

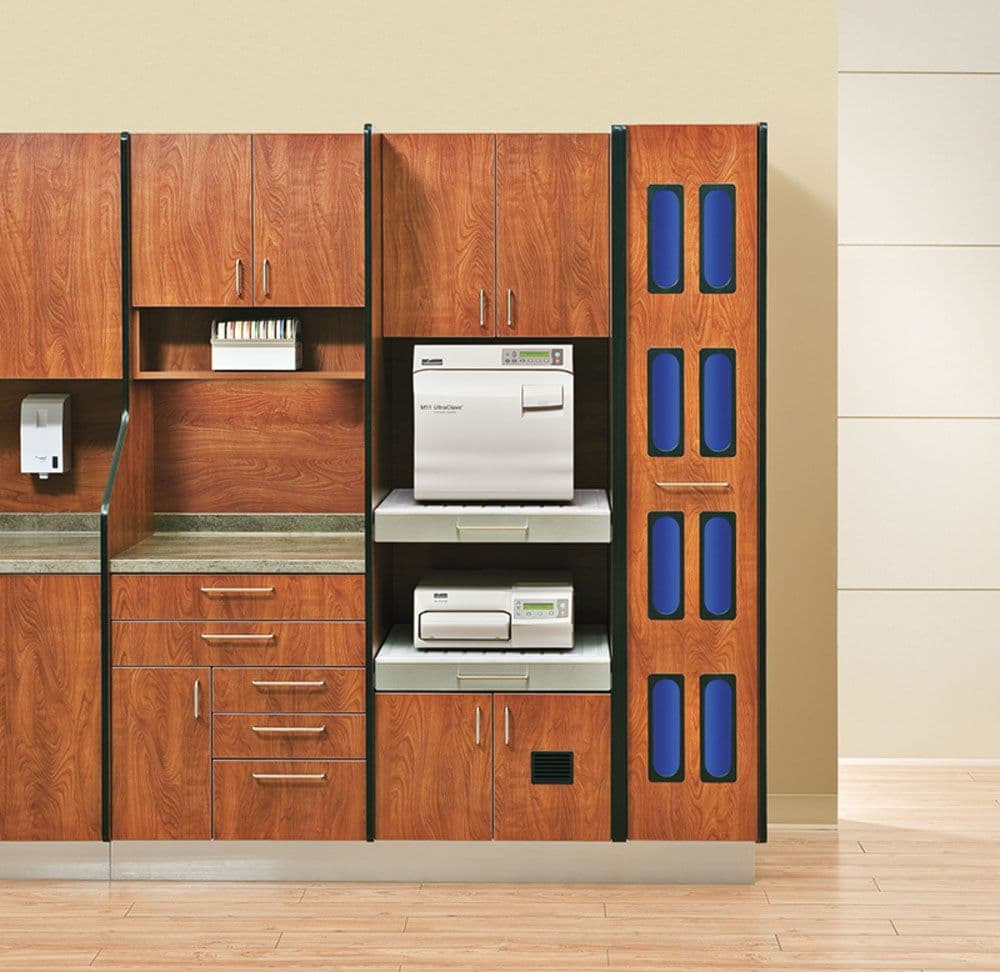

Autoclave tower with slide-out drainboard shelves for full-size sterilizers. Includes vented door with drainboard for overflow bottle
Blue illuminated clean-storage tower with 5 adjustable racks

Lighting

Electric chase with wiring system including 3 task lights, 2 outlets, switch, and separate circuits for 2 sterilizers, an ultrasonic cleaner, and outlets/lights

SC120-200

Red, illuminated upper storage for contaminated instruments, slide-out waste module with regular and bio-hazard containers, ultrasonic module with 2-drawers and provisions for a recessed ultrasonic, Delta^® retractable spray faucet and soap dispenser, undermounted 14" x 18" x 8" stainless steel sink, wrap station with two full-size wrap drawers, tape alcove, and 4-instrument storage drawers, drawer insert (1) for pouches and disposables, autoclave tower with slide-out drainboard shelves for full size and handpiece sterilizers. Includes vented door with drainboard for overflow bottle, L-shaped panels between processing areas, electric chase with wiring system including 3-task lights, 2-outlets, switch, and separate circuits for 2-sterilizers, ultrasonic, and outlets/lights

Overall dimensions: 29 1/8"D x 83 1/4"H x 119"L
Solid surface countertop with undermount stainless sink
Matching 3mm edgebanding
Brushed nickel handles
Soft-close doors and drawers
Stainless toe-kick base panel
Complete wiring system including task lighting, outlets, and separate sterilizer and ultrasonic circuits

Storage

Wrap station with two full-size wrap drawers, tape alcove and 4 instrument storage drawers
Drawer insert (1) for pouches and disposables
Autoclave tower with slide-out drainboard shelves for full-size and Statimz® sterilizers
Includes vented door with drainboard for overflow bottle

Lighting

Electric chase with wiring system including 3 task lights, 2 outlets, switch, and separate circuits for 2 sterilizers, an ultrasonic cleaner, and outlets/lights

SC96-200

Red, illuminated upper storage for contaminated instruments, slide-out waste module with regular and bio-hazard containers, ultrasonic module with 2-drawers and provisions for a recessed ultrasonic, Delta^® retractable spray faucet and soap dispenser, undermounted 14" x 18" x 8" stainless steel sink, Instrument drawer storage module, autoclave tower with slide-out drainboard shelves for full size sterilizers, Includes vented door with drainboard for overflow bottle, L-shaped panels between processing areas, electric chase with wiring system including 2-task lights, 2-outlets, switch, and separate circuits for 2-sterilizers, ultrasonic, and outlets/lights

Overall dimensions: 29 1/8"D x 83 1/4"H x 96 1/4"L
Solid surface countertop with undermount stainless sink
Matching 3 mm edge banding
Brushed nickel handles
Soft-close doors and drawers
Stainless toe-kick base panel
Complete wiring system including task lighting, outlets, and separate sterilizer and ultrasonic circuits

Storage

Instrument drawer storage module
Autoclave tower with slide-out drainboard shelves for full-size sterilizers
Includes vented door with drainboard for overflow bottle

Lighting

Electric chase with wiring system including 2 task lights, 2 outlets, switch, and separate circuits for 2 sterilizers, an ultrasonic cleaner, and outlets/lights

Standard panel color options

Solid-surface countertop with undermount stainless-steel sink
Matching 3-mm edge-banding
Solid nickel tubular pull-handles
Soft-close doors and drawers
Window inserts
Stainless-steel toe-kick base panel
