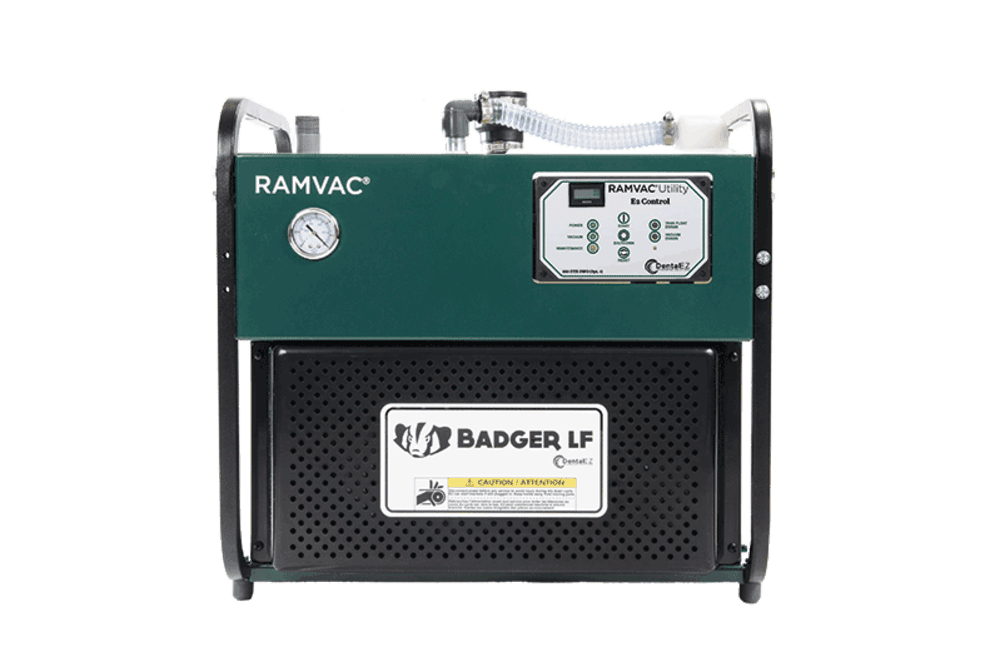

RAMVAC® Badger™ LF

Schedule a Demo

Request a Quote

The efficiently powerful lube-free dry vacuum system. Vacuum system to be used to remove liquid and debris from patients’ oral cavity while receiving dental services in a dentists' offices.

Financing Opportunities

  • Finance Calculator

    Click to Request Product Financing Options

Badger™ LF Features and Benefits
  •   LubeFree and waterless
  •   Small footprint
  •   Open frame design for ease of maintenance
  •   Auto shut down ensures longevity of rotary vanes
  •   5 Year / 10,000 Hour Warranty on pump
Includes: LubeFree rotary vane vacuum pump,
5 gallon integrated separation tank, and E2 control.


Meets the following requirements:
  •   UL 60601-1
  •   CSA C22.2 No. 601.1
  •   NFPA 99c Level 3 Vacuum System

Badger LF1 (BADGLF1) Users:1   Voltage: 208-230 VAC, Single Phase    Full Load: 6.2 A Frequency: 60 Hz    Hp: 1.5    Maximum Vacuum: 15 in Hg    Preset Vacuum Level: 7 in Hg    Tank Capacity: 5 Gallons Replacement Belt Kit: 8801-003        24.7"W x 18"D x 23.5"H    Unit Weight: 175 lbs Shipping weight: 195 lbs Material: Polyethylene

Badger LF2 (BADGLF2) Users:2   Voltage: 208-230 VAC, Single Phase    Full Load: 6.2 A Frequency: 60 Hz    Hp: 1.5    Maximum Vacuum: 15 in Hg    Preset Vacuum Level: 7 in Hg    Tank Capacity: 5 Gallons Replacement Belt Kit: 8801-004    24.7"W x 18"D x 23.5"H    Unit Weight: 175 lbs Shipping weight: 195 lbs Material: Polyethylene
