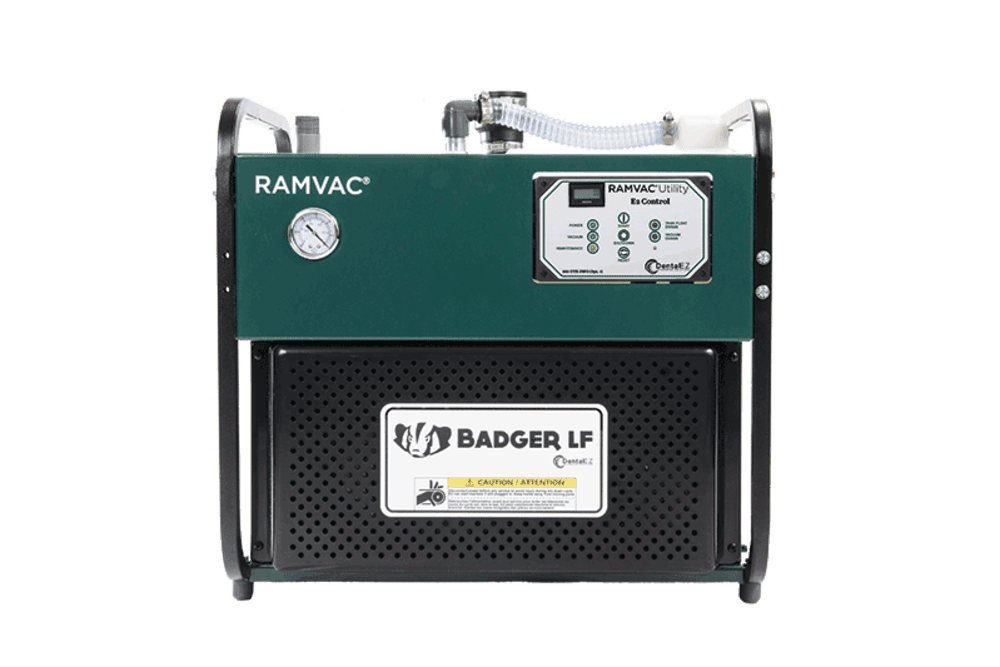

RAMVAC® Badger™ LF

The efficiently powerful lube-free dry vacuum system. Vacuum system to be used to remove liquid and debris from patients’ oral cavity while receiving dental services in a dentists' offices.

Let Us Show How It Works

Schedule a Demo

Financing Options Available

Request Financing

Description

Badger™ LF Features and Benefits
•   LubeFree and waterless
•   Small footprint
•   Open frame design for ease of maintenance
• Auto shut down ensures longevity of rotary vanes
•   5 Year / 10,000 Hour Warranty on pump
Includes: LubeFree rotary vane vacuum pump,
5 gallon integrated separation tank, and E2 control.

Meets the following requirements:
•   UL 60601-1
•   CSA C22.2 No. 601.1
•   NFPA 99c Level 3 Vacuum System

Specifications

Badger LF1 (BADGLF1) Users:1 Voltage: 208-230 VAC, Single Phase Full Load: 6.2 A Frequency: 60 Hz Hp: 1.5 Maximum Vacuum: 15 in Hg Preset Vacuum Level: 7 in Hg Tank Capacity: 5 Gallons Replacement Belt Kit: 8801-003 24.7"W x 18"D x 23.5"H Unit Weight: 175 lbs Shipping weight: 195 lbs Material: Polyethylene

Badger LF2 (BADGLF2) Users:2 Voltage: 208-230 VAC, Single Phase Full Load: 6.2 A Frequency: 60 Hz Hp: 1.5 Maximum Vacuum: 15 in Hg Preset Vacuum Level: 7 in Hg Tank Capacity: 5 Gallons Replacement Belt Kit: 8801-004 24.7"W x 18"D x 23.5"H Unit Weight: 175 lbs Shipping weight: 195 lbs Material: Polyethylene
