J. MORITA Veraview X800

J. MORITA Veraview X800 - Distributed by Henry Schein
J. MORITA Veraview X800 - Distributed by Henry Schein
J. MORITA Veraview X800 - Distributed by Henry Schein
J. MORITA Veraview X800 - Distributed by Henry Schein

Request a Quote

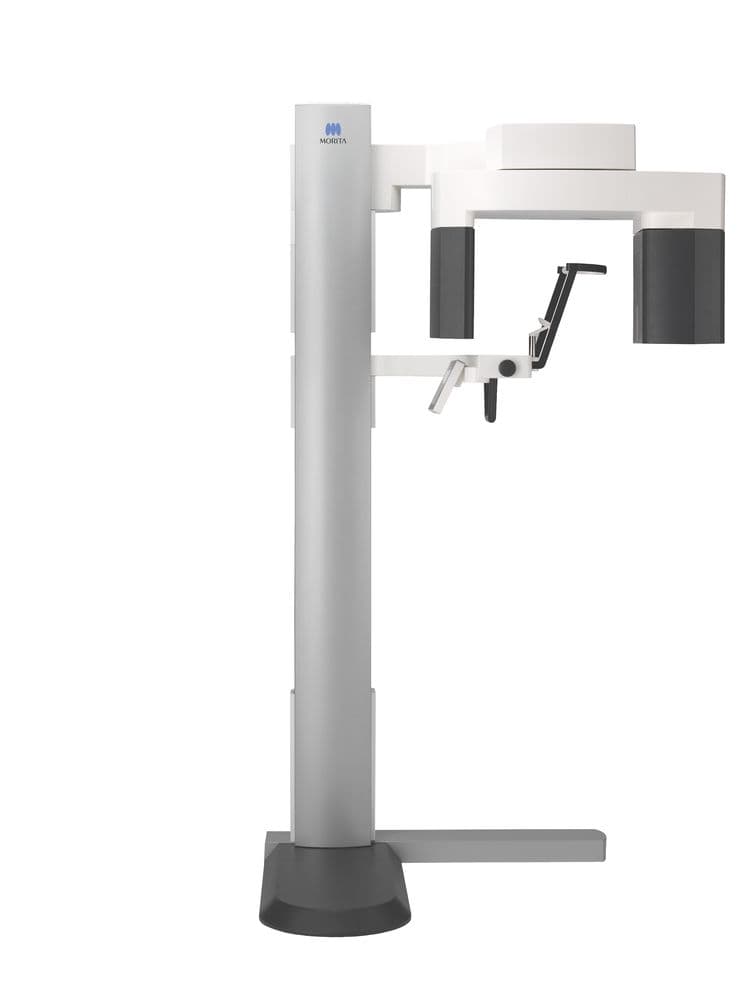

The Veraview X800 is an all-in-one dental X-ray unit that produces stunning images for panoramic, cephalometric, and CBCT evaluation.

Financing Opportunities

  • Finance Calculator

    Click to Request Product Financing Options

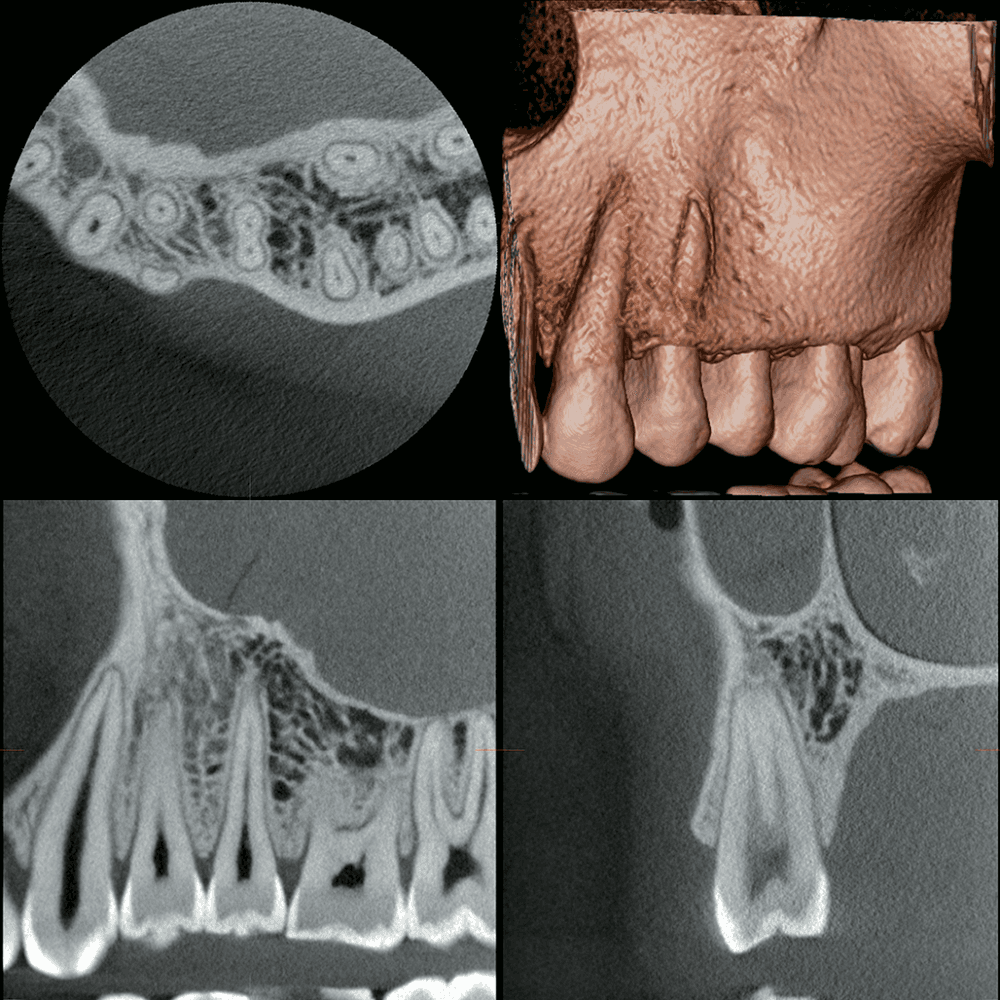

Veraview X800 is a total performance imaging system. Multi-functional, it offers superior image quality for both 3D and 2D evaluation. An innovative sensor positioning system automatically sets the optimal x-ray beam angle, horizontal for 3D or raised 5° for 2D panoramic images, improving clarity. This unit also offers a voxel size of 80µm and a resolution of 2.5 LP/mm. Additional features include: 360° or 180° rotation, panoramic scout for easy and precise positioning, dose reduction mode, zoom reconstruction (reduces retakes), and a free 3-year warranty.


Completely redesigned, the Veraview X800 is loaded with refined features that produce stunning images with remarkable clarity. Users will find a variety of new innovations for more control, accuracy, and ease of use.

• 3D & 2D imaging capability with superior quality due to innovative sensor positioning

• Enhanced image clarity of 80µm & resolution of 2.5 LP/mm

• 360° rotation for reduced artifacts, 180° option for dose reduction

• Panoramic scout for easy & precise patient positioning, especially helpful for targeting focused fields of view

• Uniquely shaped 3D Reuleaux full arch FOV reduces dose by excluding areas outside the region of interest

• Dose Reduction Mode – up to 40% reduced exposure*

• Zoom reconstruction reduces need for retakes

• 3-year warranty including remote software support

*Compared to exposure when Dose Reduction Mode is turned off.

Name: Veraview X800
Model: X800
Order Selection: F40/F80*/R100/F150
Rating: AC 120V, 60Hz; AC 220/230/240V, 50/60Hz
Power Consumption: 2.0 kVA
Weight: ~408 lbs. (185 kg); Ceph unit: ~485 lbs. (220 kg)
Manufacturer: J. MORITA MFG. CORP.
X-ray Tube Voltage: 60 - 100 kV (depending on exposure mode)
X-ray Tube Current: 2 - 10 mA (depending on exposure mode)
Nominal Focal Spot: 0.5
Panoramic Exposures: High Speed Mode (standard panoramic) ~ 7.4 seconds; High Definition (standard panoramic) ~14.8 seconds
Panoramic Regions: Standard Panoramic (standard, orthographic, shadowless); Pedodontic Panoramic (standard, orthographic, shadowless); Maxillary Sinus Panoramic (anterior, posterior); Quadruple TMJ, Partial Panoramic, Bite-wing Exposure
CBCT Exposure Time: ~9.4 seconds for 180 degrees; ~17.9 seconds for 360 degrees
CBCT Exposure Regions: Contact Henry Schein Representative

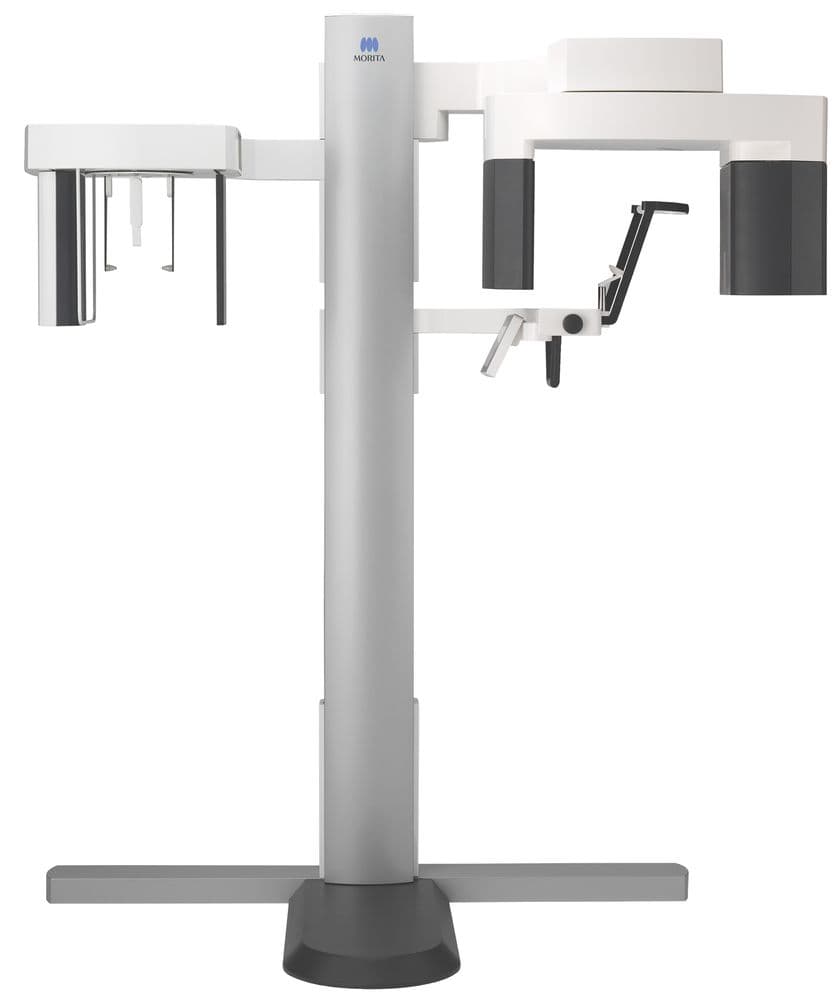

Cephalometric Exposures: F40CP/F80CP*/F100CP/F150CP
Direction and Size: LA 220 x 250; PA 220 x 200 mm
