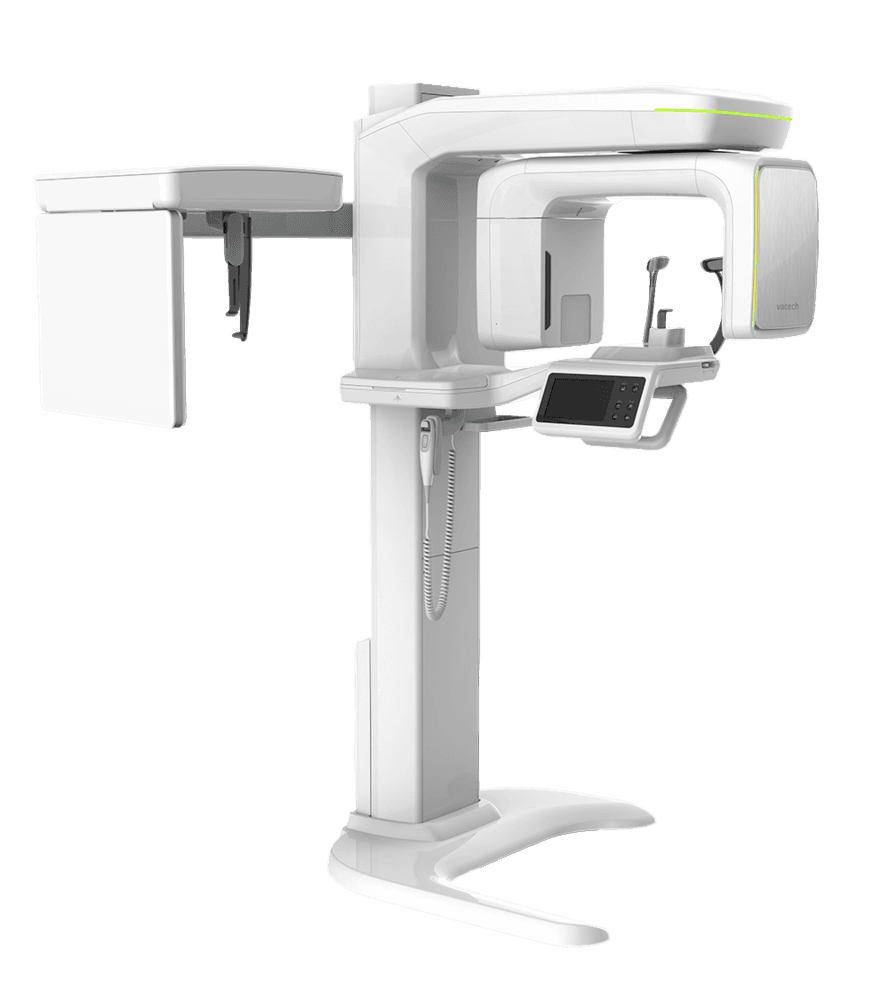

The Green CT 2 is an advanced digital X-ray imaging system that provides high quality images with lower radiation. It covers the full arch region, sinus, and left/right TMJ. It suits most oral surgery cases as well as multiple implant surgeries. The Green CT 2 minimizes motion artifact and enables faster workflow due to its scan time. It produces superb diagnostic images, which will be a source of pride for any dental practice.
|
FUNCTION |
FOCAL SPOT SIZE |
CT FOV SIZE |
VOXEL SIZE |
SCAN TIME |
GRAY SCALE |
TUBE VOLTAGE / CURRENT |
WEIGHT |
DIMENSIONS |
|
|
CT + Pano + Ceph + Model Scan |
0.5 mm (IEC60336) |
16x9 cm : Multi (5x5 / 8x9 / 12x9 / 16x9 cm) |
5x5 : 0.08 mm / 0.12 mm |
PANO 14.1 sec / 7.0 sec |
14 Bit |
60 - 99 kVp / 4 - 16 mA |
Without CEPH unit : 295.4 lbs - without the Base / 412.3 lbs - with the Base |
Without CEPH unit : 44.29" (L) x 58.61" (W) x 91.94" (H) |
|
|
With CEPH unit : 350.5 lbs - without the Base / 467.4 lbs - with the Base |
With CEPH unit : 73.78" (L) x 58.61" (W) x 91.94" (H) |
||||||||
|
|
|
||||||||
|
|
|
||||||||
|
|
|
