Vatech EzRay Air Wall

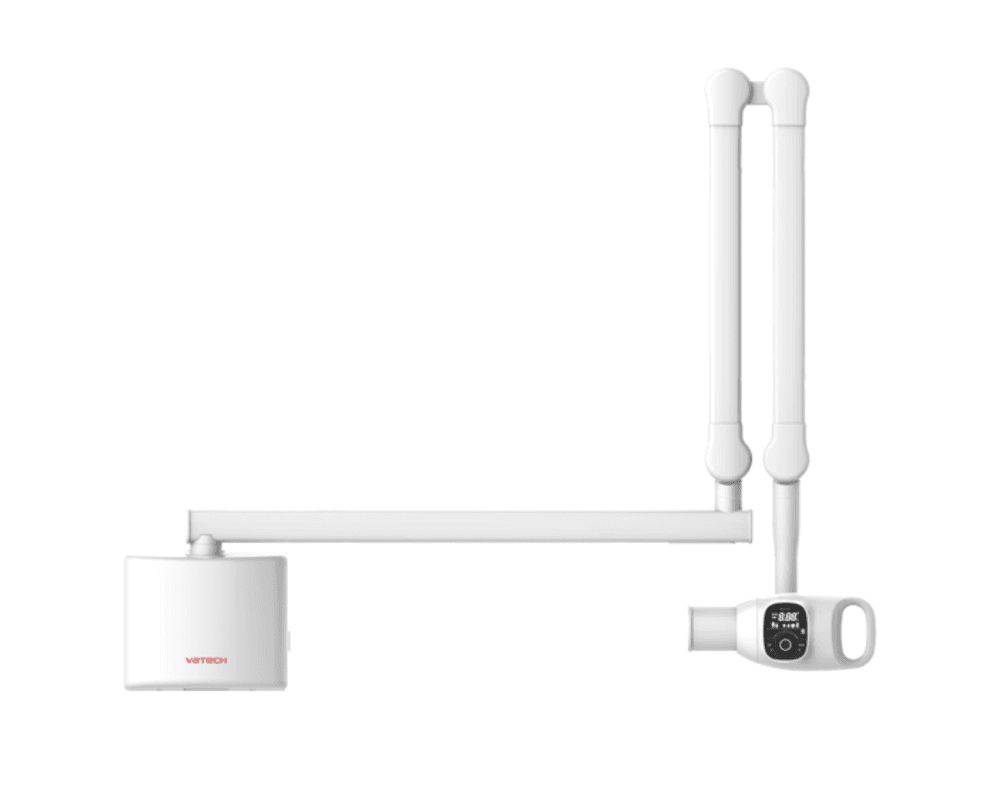

EzRay Air Wall is a wall-mounted lightweight x-ray device. Its round shape design, stable arm, and an ergonomic hand grip provides an accurate method of positioning. The unit is operated by a single Smart Dial, which creates simpler and faster workflow as there will be no need to remember complicated control buttons and configurations.
Financing Options Available
Request FinancingDescription
EzRay Air Wall is a wall-mounted lightweight x-ray device. Its round shape design, stable arm, and an ergonomic hand grip provides an accurate method of positioning. The unit is operated by a single Smart Dial, which creates simpler and faster workflow as there will be no need to remember complicated control buttons and configurations.
Specifications
|
FOCAL SPOT |
TUBE VOLTAGE |
TUBE CURRENT |
EXPOSURE TIME RANGE |
SOURCE TO SKIN DISTANCE |
X-RAY FIELD |
ARM LENGTH [OPTION] |
ACCESSORIES |
WEIGHT |
|
0.4 mm (IEC 60336) |
65 kVp |
3.0 mA |
0.05 ~ 0.5 (0.01s increment) |
Min. 7.9 inch |
Default: 60 mm Round, 30 x 40 mm Rectangular |
62”/ 68”/ 80” |
Remote Exposure Switch (Hand Switch / Doorbell Switch) |
56.9 Ib (Arm Length 62") |
|
Optional: 20 x 30 mm Rectangular |
58.0 Ib (Arm Length 68") |
|||||||
|
61.1 Ib (Arm Length 80") |
