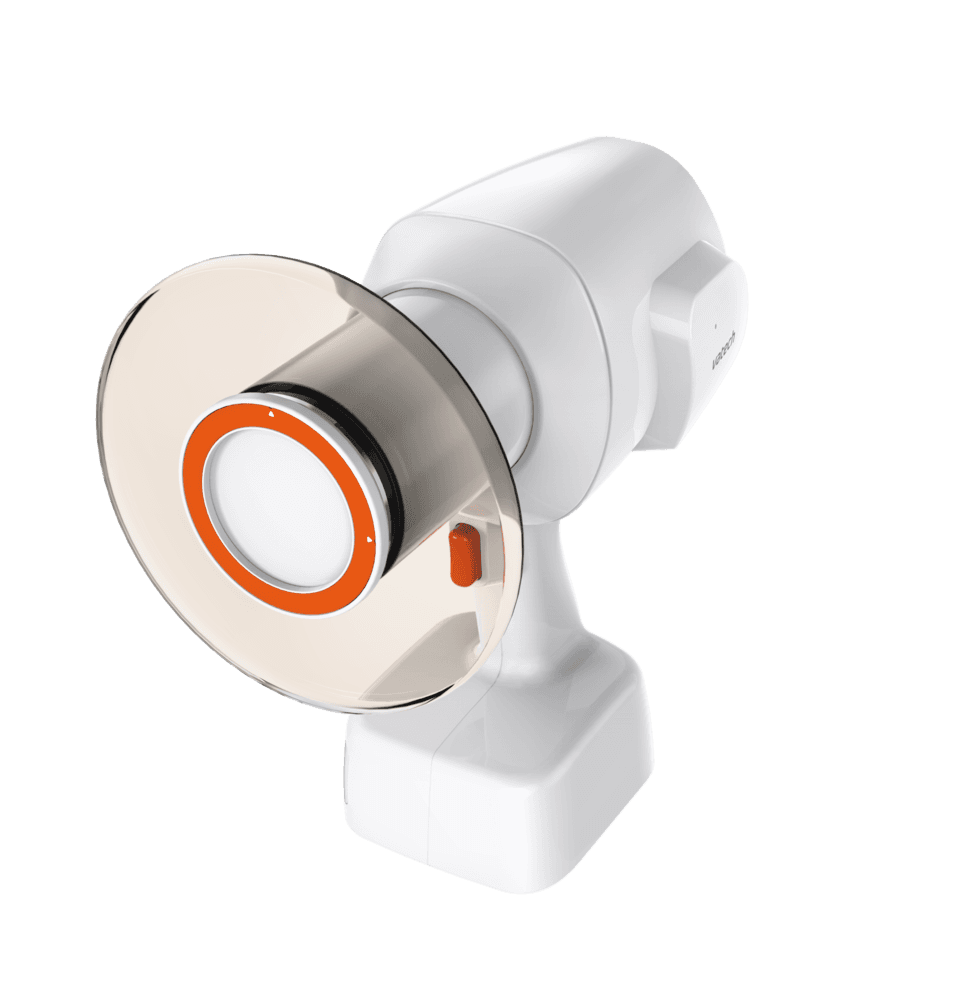

Vatech EzRay Air P
EzRay Air P is the world’s first dental application of carbon nano technology. The technology enables lightweight portable x-ray device that is designed for easy handling and stable positioning. It delivers optimal image quality and workflow for intraoral x-ray images.
Financing Options Available
Request FinancingDescription
EzRay Air P is the world’s first dental application of carbon nano technology. The technology enables lightweight portable x-ray device that is designed for easy handling and stable positioning. It delivers optimal image quality and workflow for intraoral x-ray images.
Specifications
FOCAL SPOT |
TUBE VOLTAGE (kV) |
TUBE CURRENT (mA) |
EXPOSURE TIME RANGE |
TOTAL FILTRATION |
SOURCE TO SKIN DISTANCE |
X-RAY FIELD |
MAXIMUM DUTY CYCLE |
POWER INPUT |
WEIGHT |
0.4 mm (IEC 60336) |
65 kV |
2.5 mA |
0.05 ~ 1.0 sec |
Min. 1.5 mm AI |
200 mm |
Default: 60 mm Round, 30 x 40 mm Rectangular |
0.083333333 |
21.6 V |
4.7 lbs. (2.1 kg) |
Optional: 20 x 30 mm Rectangular |
