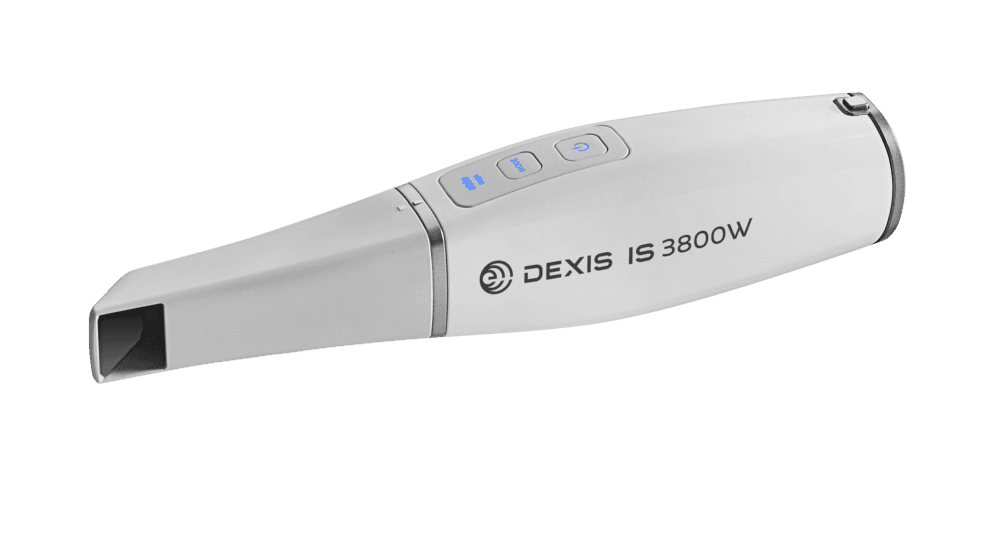

DEXIS™ IS 3800W Wireless Intraoral Scanner
Make the DEXIS IS 3800W your trusted partner for seamless intraoral scanning. Awarded the prestigious Red Dot Award for product design and innovation, this DEXIS intraoral scanner offers one hour of continuous wireless scanning capabilities, built-in gesture motion control, fast capture rates and more, making your workflows easier and more efficient.
Description

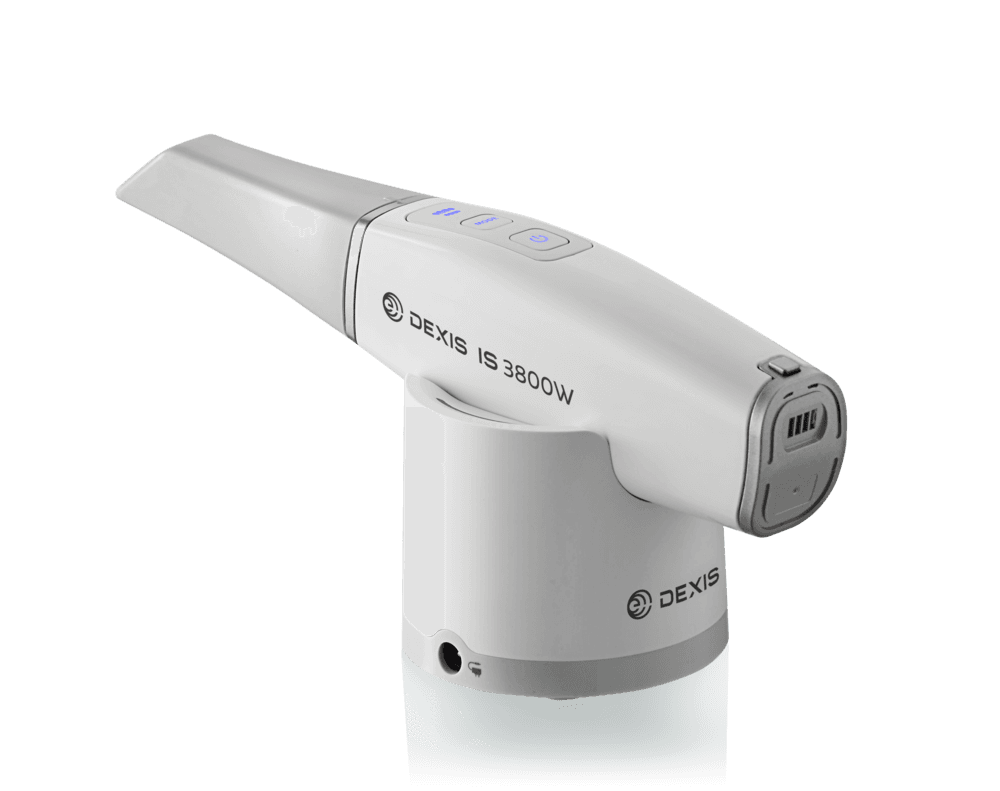

Enjoy uninterrupted freedom with the DEXIS IS 3800W wireless intraoral dental scanner. Weighing only 240 grams, this DEXIS scanner is both lightweight and compact, boasting an award-winning design crafted in collaboration with Studio F.A. Porsche. It offers up to one hour of continuous wireless scanning, with a range of accessories that ensure it’s always at the ready, including a smart charging station, a back-up power cable and an optional charging unit with extra batteries. With fast capture rates — just 25 seconds for a single arch* — and exceptional image quality, the DEXIS IS 3800W is poised to transform your practice, one scan at a time.
- Deep field of view. From interproximal areas to subgingival margins, the DEXIS IS 3800W wireless dental intraoral scanner has a large field of view (16 mm x 14 mm) and broad depth of field (21 mm), helping you capture digital dental impressions with incredible detail and clarity
- Reliable wireless connection. Offers dedicated point-to-point Wi-Fi access — simply plug in the Wi-Fi dongle, press the button and you’re ready to scan
- Gesture motion control. Built with an embedded sensor that has gesture motion control, enabling you to orient the on-screen digital model with a simple rotation of the scanner
- Interchangeable tips. This DEXIS intraoral scanner comes with three interchangeable tip styles for optimal comfort, each autoclavable up to 110 times
* Internal testing completed on a 3D model using recommended PC configuration.
Specifications
Sensor technology: ½. 9 inch CMOS
Illumination: LED: Amber, Blue, Green
Field of view:
16x14 mm
13x7 mm (posterior tip)
Depth of field: 2 to +16 mm
Anti-fogging technology: By airflow
Digital connection: Wi-Fi 5GHz, 802. 11ac
Dimensions without cable: 226x38x60 mm with normal tip or side tip
Weight: 240 g (with battery)
Handpiece: Input: 5V—5A (with backup power cable)
4.2V – 3A (with battery)
Handpiece Charger: Input 12V – 2.5A
Output 1 (charging port): 4.2V – 3A
Output 2 (port for backup power cable): 12V – 2.5A
Note: When the backup power cable is attached, Output 1 is disabled, and Output 2 is enabled.
Battery Charger:
Input: 12V – 2.5A
Output: 4.2V-- 3A
Note: When charging a single battery, the output is 3A. When charging two batteries at the same time, the output of each slot is limited to 2.4A, to prevent the power adapter from being overloaded.
Battery: Model: 1INR18/65
3.5 V/3500 mAh
Adapter: Model LXCP30A-120
Input: 100-240V~ 50/60Hz, 500mA
Output: 12.0V--2.5A
Wi-Fi Adapter: TP-LINK T9UH
Backup Power Cable: length: 2m
