DCI Edge

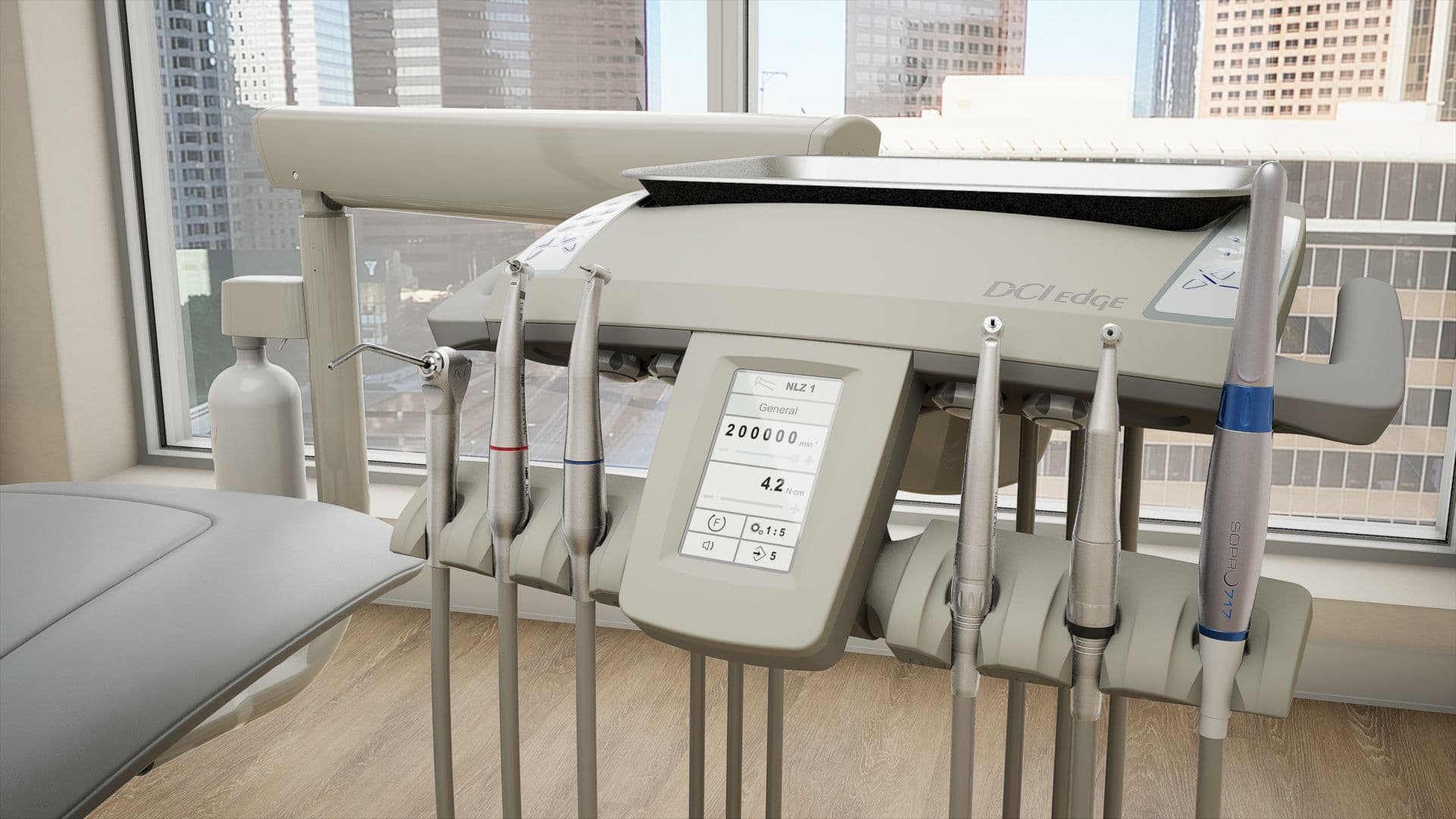

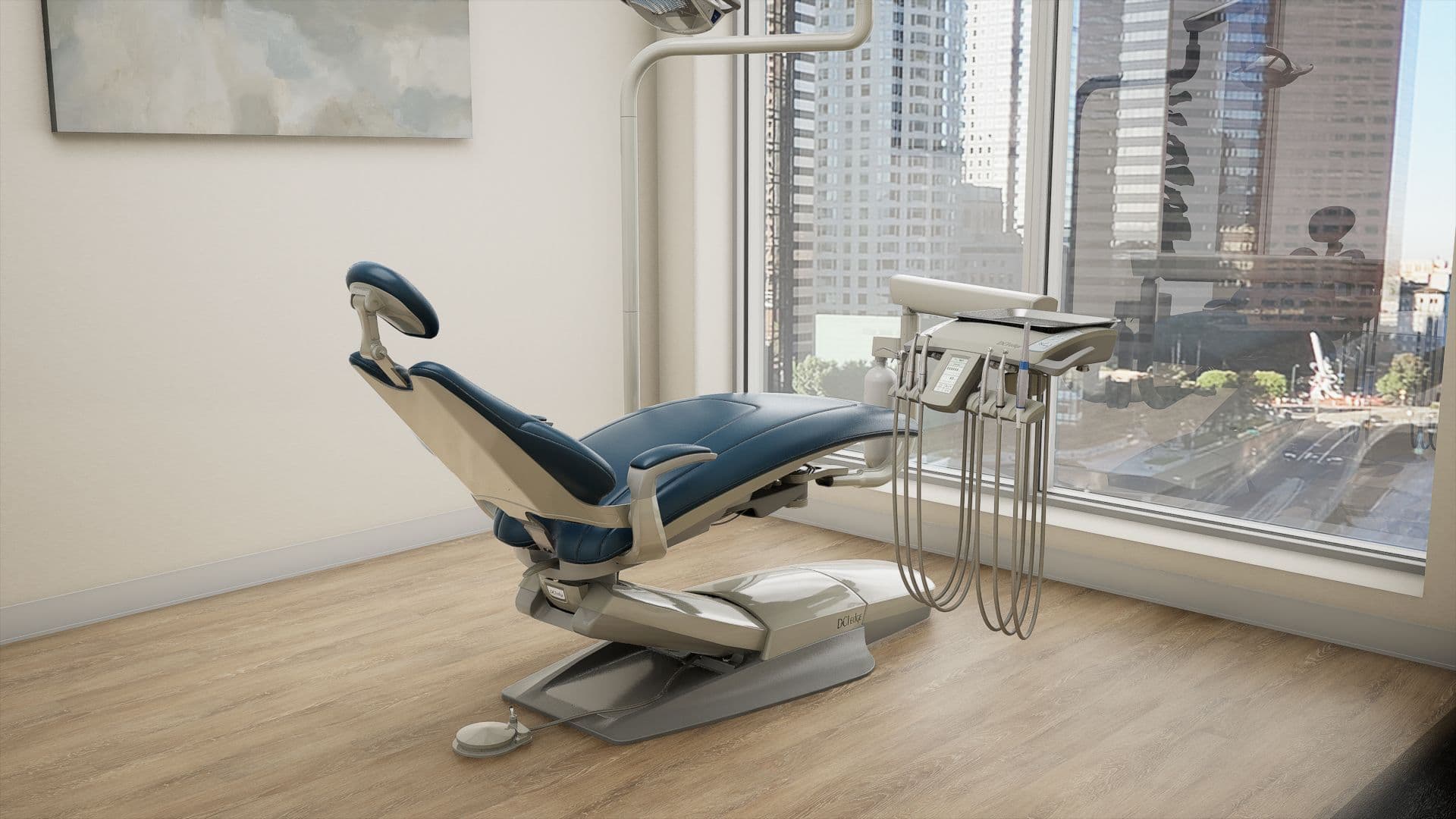

DCI Edge Series 5 Plus Delivery System

The DCI Edge Series 5 Plus Delivery with NSK NLZ PRO dual motor capability is a perfect fusion of elevated design, improved ergonomics, and advanced technology integration. Built with the modern practitioner in mind, the Series 5 Plus Delivery System delivers a seamless optimized experience, making every procedure more efficient and every detail more refined.

Financing Options Available
Request Financing

Description

  • Enjoy enhanced safety and efficiency that comes with the integrated NSK NLZ PRO Dual electric motor system. Compact design that is integrated into the Series 5 Plus to maximize your treatment potential.
  • The NSK NLZ PRO is designed to streamline your clinical procedures with dual motors making it easy to transition from high speed to low speed work—helping you maintain efficiency every step of the way.
  • With a speed of 100-40,000 rpm, the NLZ PRO provides 40% higher torque than existing motors, with a max of 4.2 Ncm.
  • Rotary and reciprocating functions enable efficient endodontic treatment.
  • Integrated handpiece holder with tool-free rotation adjustment.

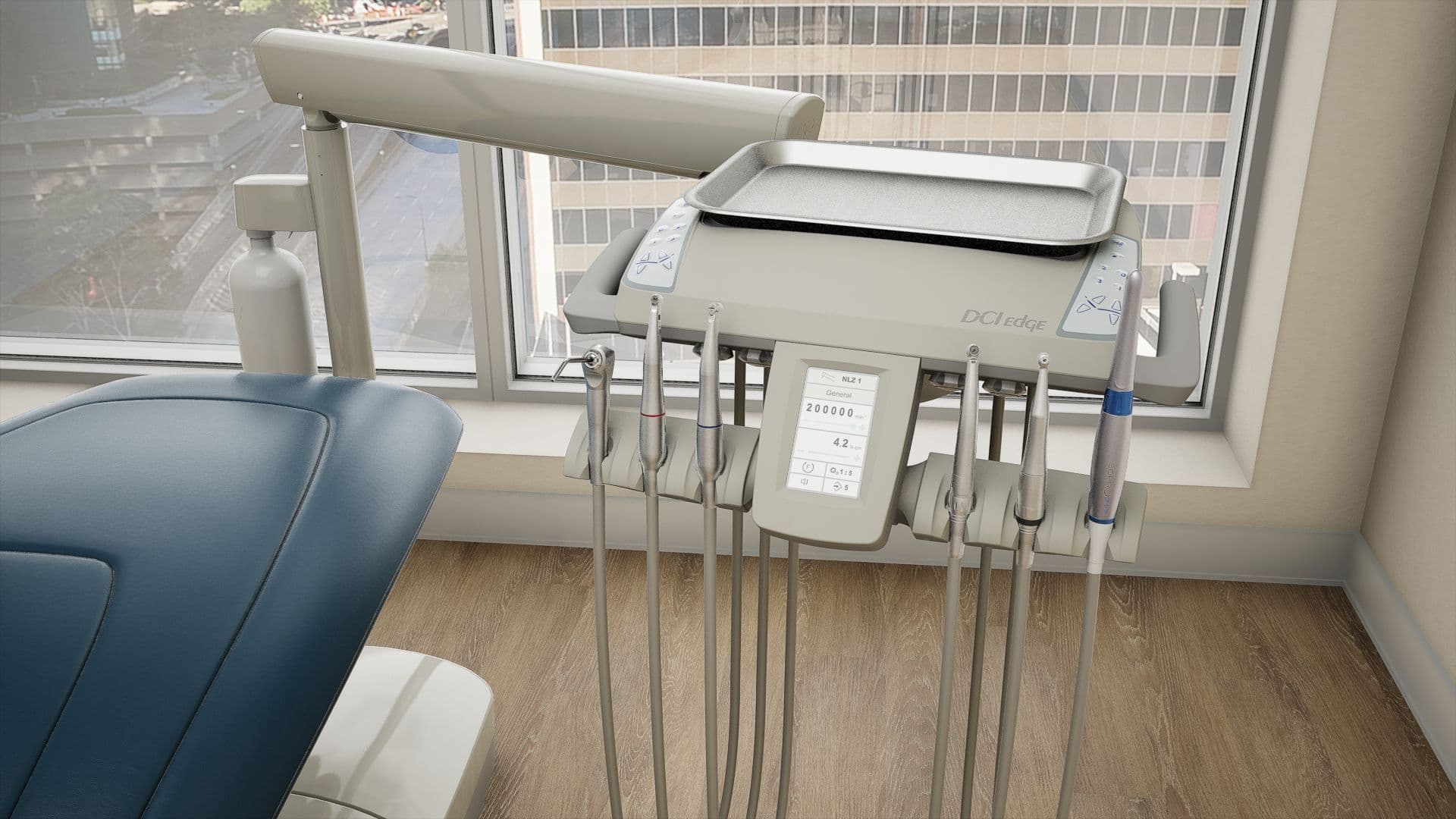

  • Mobile arm tray holder is positioned above the delivery system providing enhanced accessibility and extra workspace.
  • Dual integrated touchpads and soft grip brake handles. The touchpad features four programmable chair positions, manual chair lift and back tilt adjustment capability, last position controls, dental light operation, and access from either side.
  • Enhanced flex arm supports the added weight of new technology. The flex arm is larger, stronger, and more capable than ever.
  • Dual pivot point enables effortless positioning of the unit head.
  • Reliable components and enhanced room for integration of additional devices.
  • Organized tubing & cable management.
  • Forward positioned water combo valves are strategically placed at an angle for effortless adjustment.
  • USB hub within the delivery system keeps tools connected and powered.
  • Chair lockout feature prevents accidental movement of the chair when an instrument is in use.
  • Anti-retraction, built-in check valves for single direction water flow.
  • Available with single, dual, or triple intra-oral light source options.
  • Designed and assembled in the U.S.

Product Benefits:

  • Customizable with fully integrated single or dual NSK NLZ PRO electric motor capability as well as a variety of factory-installed options to easily access essential clinical and diagnostic devices.
  • Thoughtfully engineered to support natural movement and reduce physical strain. Its ergonomic design enhances comfort during long procedures, helping you work more efficiently with less fatigue.
  • Keeping things simple in every part of our product design, so you get a strong, dependable solution that delivers great value—at the right price and with low maintenance for years to come.
  • Built to withstand the demands of your busy practice, providing durability and long-lasting performance, backed by our 10-year warranty.

Specifications

  • Electrical Specifications
      ◦ Voltage: 100–240 VAC
      ◦ Current: 0.6 Amps
      ◦ Frequency: 50–60 Hz
      ◦ IEC Medical Classification: Class I
      ◦ Type: BF Power Optics
      ◦ Splash Protection: IPX0
  • Accessory Devices – Power Optics
      ◦ Operation: Intermittent
      ◦ Duty Cycle: 20 sec ON, 10 sec OFF, up to 10 times per hour
  • Air and Water Supply
     Air
      ◦ Pressure: 80–105 psi
    Water
    ◦ Hardness: 7.2 – 7.8 pH
    ◦ Pressure: 40–80 psi

Environmental Conditions
Operating:
◦ Temperature: 67–76°F
◦ Humidity: 20–60%
Shipping:
◦ Temperature: -68 – 122°F
◦ Humidity: 10–90%
