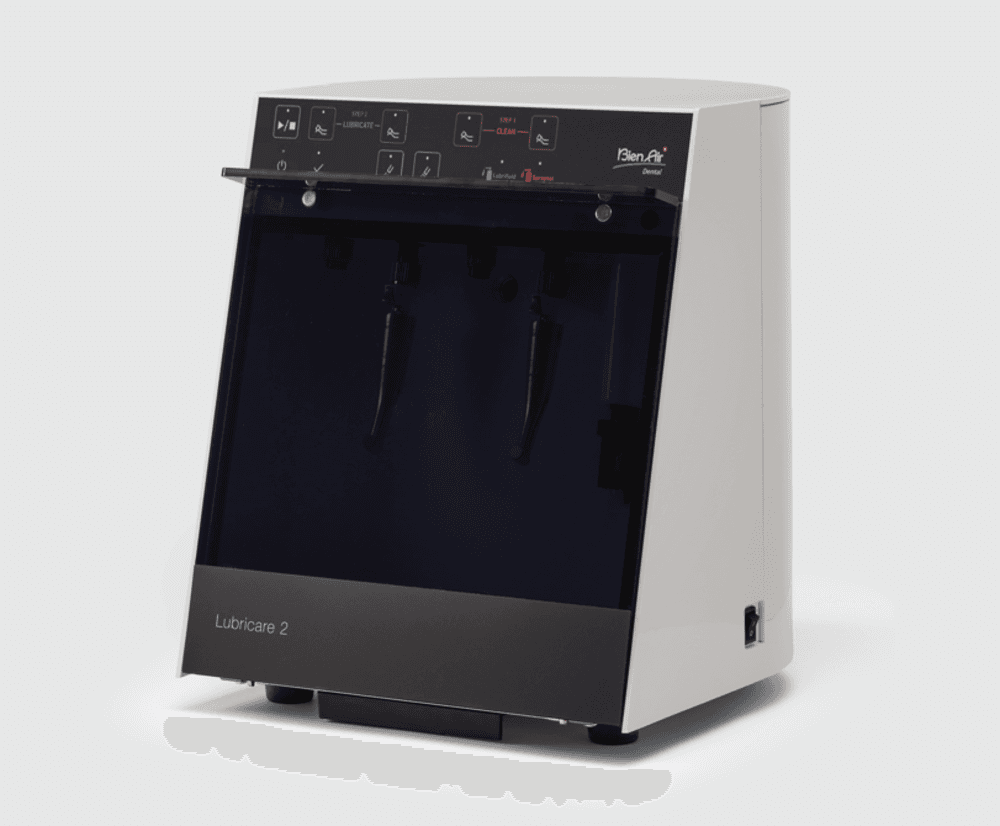

Bien-Air Lubricare 2® Handpiece Care and Maintenance System

Description

• Performs maintenance on up to four handpieces at a time (2 cleaning and 2 lubricating)

• Cleans air turbines in 20 seconds and contra-angles in 40 seconds

• Reduces oil consumption relative to manual procedures

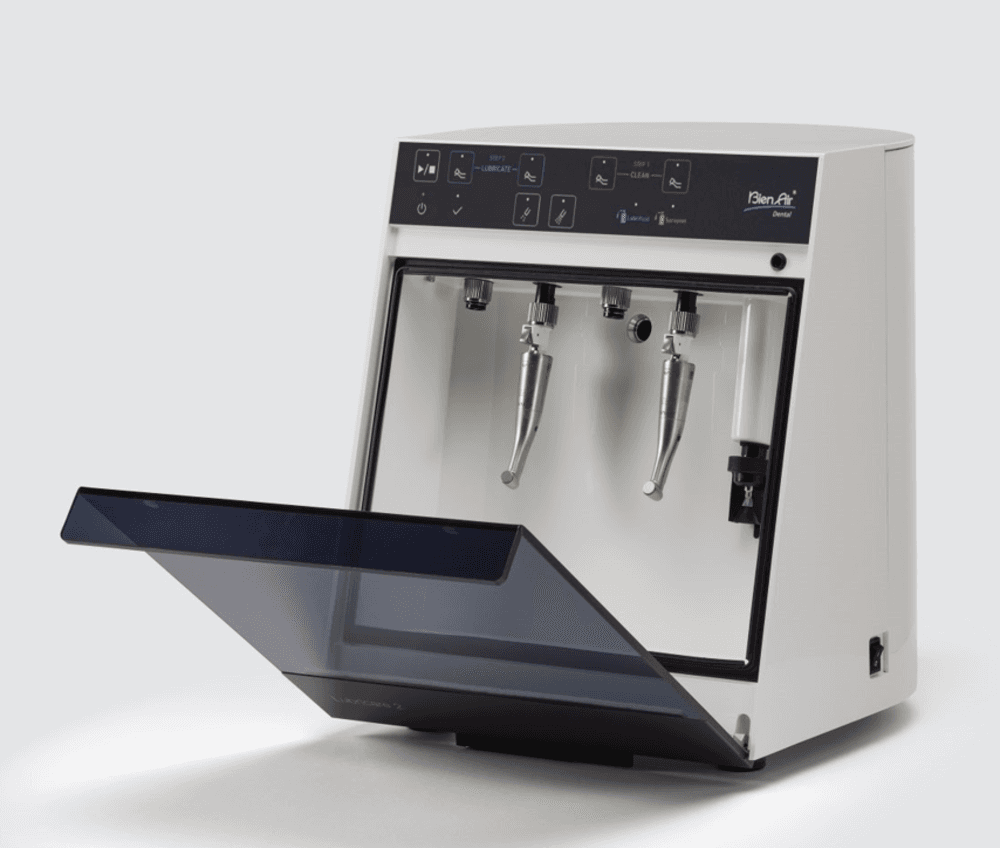

• Improves access with a removable front door

• Prevents aerosol diffusion while in use through a built-in oil mist suction mechanism

• Simplifies cleaning with a flat control panel

• Is compatible with E-type attachments from other manufacturers (additional components may be required)

• Dimensions: 11.81" L x 11.81" W x 14.37" H (300 mm x 300 mm x 365 mm). Shipping weight 22 lb (10 kg). Equipment Weight: 17.6 lb (8 kg)

Specifications

Compatibility	E-type attachments (additional couplings may be required)
Cycle Duration	20 s turbine, 40 s contra angle
Capacity	4 handpiece lanes (2 cleaning, 2 lubricating) and 1 chuck lane
Rating	AC 100 V–240 V 50–60 Hz
Power Consumption	10 VA–25 VA
Air Flow Rate	60 NL/min–100 NL/min (0.3 MPa–0.5 MPa)
Air Pressure	43.5 psi–72.5 psi (0.3 MPa–0.5 MPa) [58 psi (0.4 MPa) recommended]
Weight	Approx. 17 lb (8 kg)
Outer Dimensions	11.81" L x 11.81" W x 14.37" H (300 mm x 300 mm x 365 mm)
