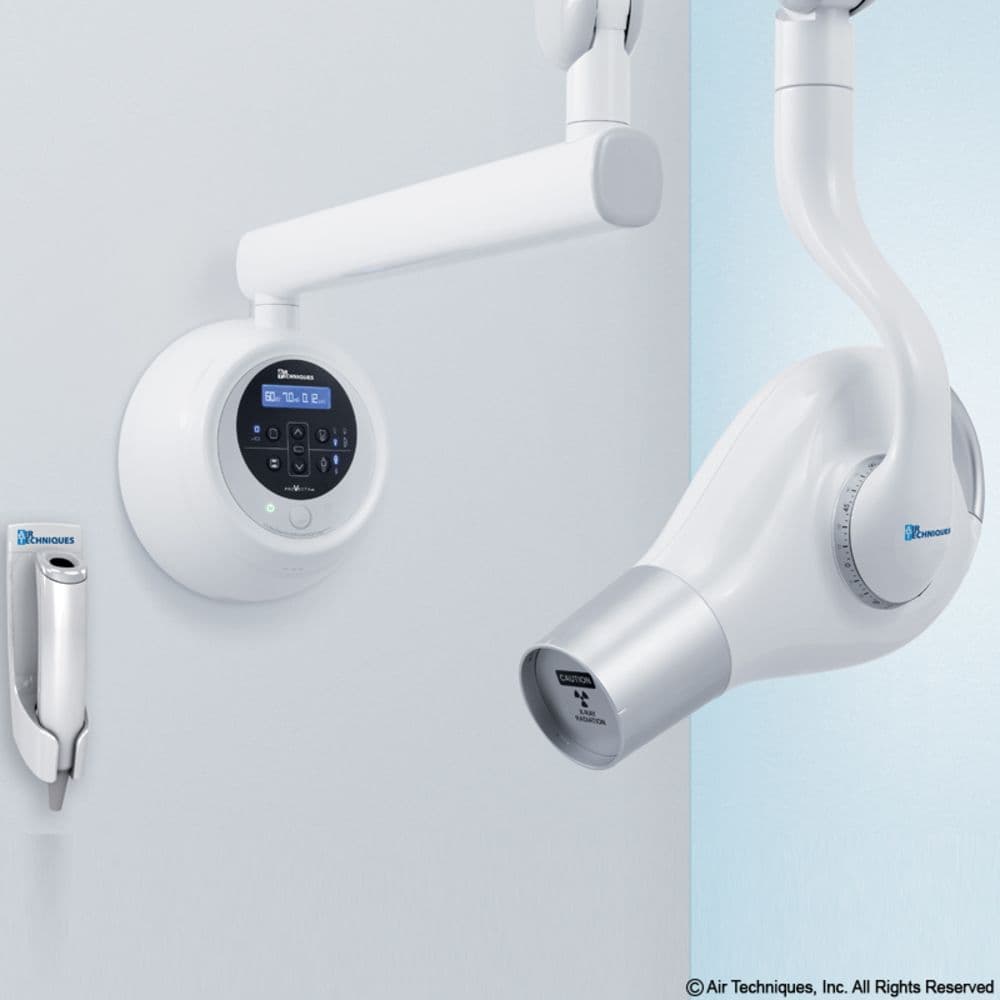

Air Techniques ProVecta HD Intraoral X-Ray
Air Techniques ProVecta HD Intraoral X-Ray
ProVecta HD Intraoral X-Ray: Perfect in Function & Design.Financing Options Available
Request FinancingDescription
- DC tube features a 0.4 mm focal point for maximum image sharpness
- The smaller the focal spot, the greater the contrast resolution, which provides sharper edge definition and finer details of internal structures
- ProVecta HD works with wired sensors, cordless flexible phosphor sensors (PSPs) and film
- Generator head handle allows precise positioning that stays in place
- Right-angle/parallel technology for precise alignment

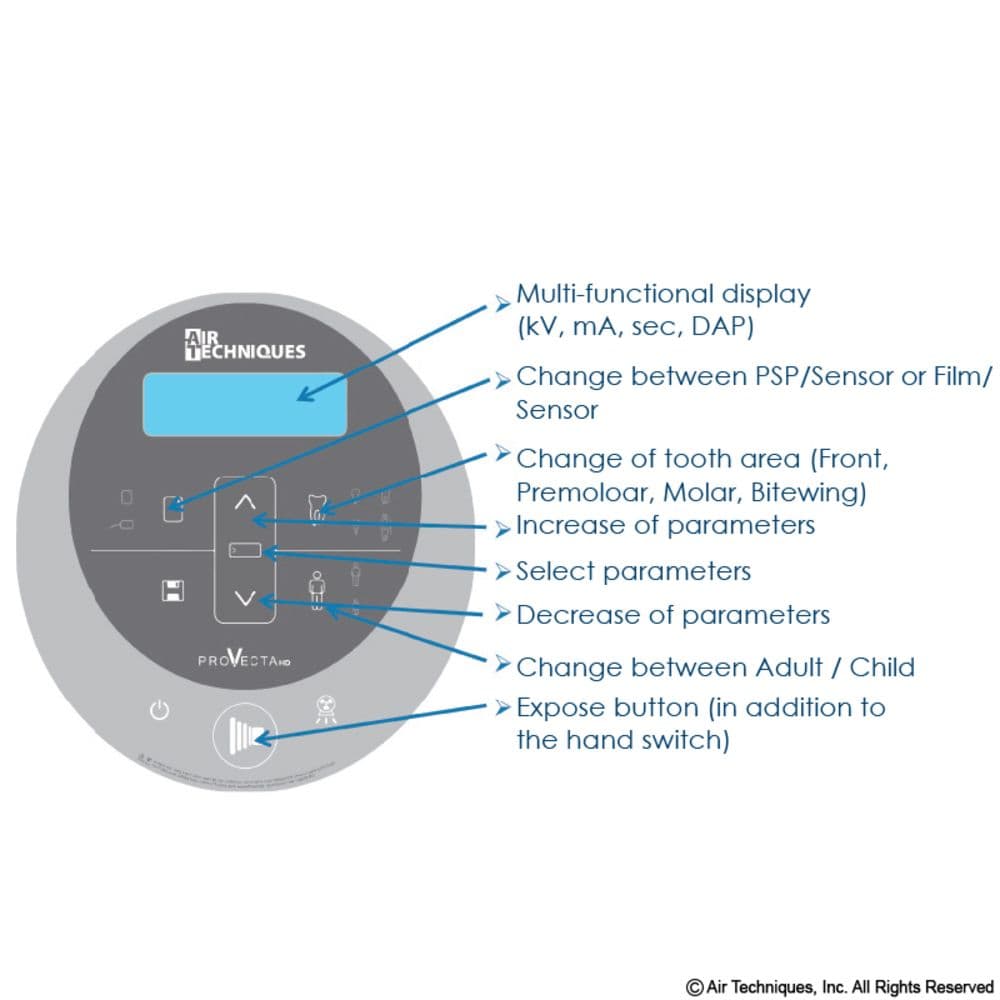

- Adjustable mA and kV and exposure time
- Optional rectangular radiation field collimator
- DC technology allows constant radiation levels to ensure reliable image quality
- Our special generator head handle not only allows precise positioning, it makes the process more comfortable for both the clinician and the patient

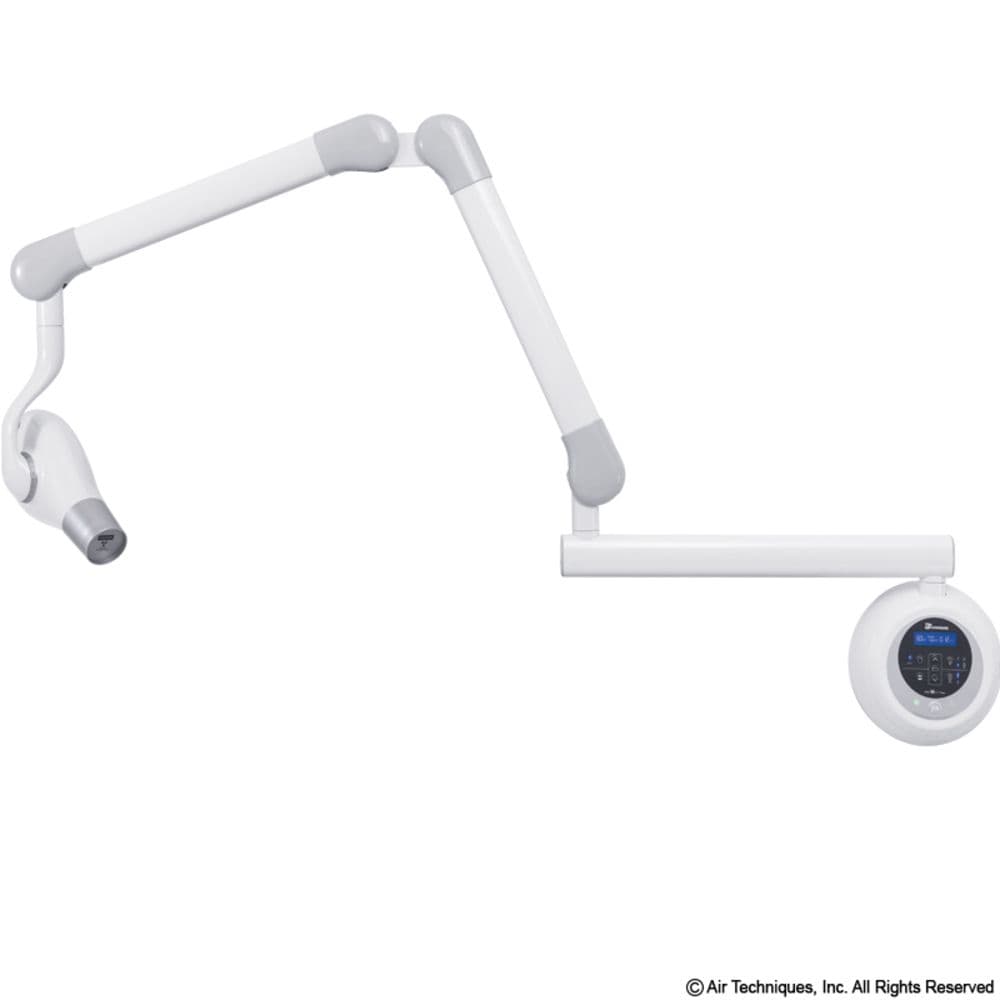

- Choose from 3 Extended arm lengths: short (68"), medium (74"), and long (86")
- The DC tube reduces the patient radiation dose by more than 25% in comparison to conventional AC units, ensuring greater safety for your patients and staff
- This state-of-the-art unit's small footprint, coupled with its right-angle/parallel technology, allows it to work its magic in less space than less-advanced units
- Factory programmed dosage specifically set for each view of teeth when using ScanX flexible phosphor sensors (PSP)
Specifications
| Part Number | |
| A6350-155 | ProVecta HD Intraoral X-ray Wall Mount Unit, 15" arm, Single Stud Wall Mount |
| A6350-24S | ProVecta HD Intraoral X-ray Wall Mount Unit, 24" arm, Single Stud Wall Mount |
| A6350-33S | ProVecta HD Intraoral X-ray Wall Mount Unit, 33" arm, Single Stud Wall Mount |
| A6350-15D | ProVecta HD Intraoral X-ray Wall Mount Unit, 15” arm, Double Stud Wall Mount |
| A6350-24D | ProVecta HD Intraoral X-ray Wall Mount Unit, 24” arm, Double Stud Wall Mount |
| A6350-33D | ProVecta HD Intraoral X-ray Wall Mount Unit, 33” arm, Double Stud Wall Mount |
| Power input | AC 100-240 V +/- 10 %, 50/60 Hz |
| Power rating (W) | 500 |
| Tube voltage (kVp) | 60 - 70 |
| Tube current (mA) | 4 - 7 |
| Tube length (in) | 8“ (12“ optional) |
| Radiation field limits (in) | 2.4“/1.2“ x 1.6“ (0.8“ x 1.2“ optional) |
| Exposure time (sec.) | 0.04 - 2 |
| Focal spot size (mm) | 0.4 (IEC 60336) |
| Total filtration (mm) | Min. 2.0 Al |
| Weight (lbs) | 55/56/59 lbs (short/medium/long arm) |
| Storage height (in) | 45“ |
| Extended arm length (in) | 74“ (68“ and 86“ optional) |
24 Months
This equipment is warranted to be free from defects in material and workmanship for a period of 24 months from the date of installation by authorized Air Techniques' dealer service personnel.
