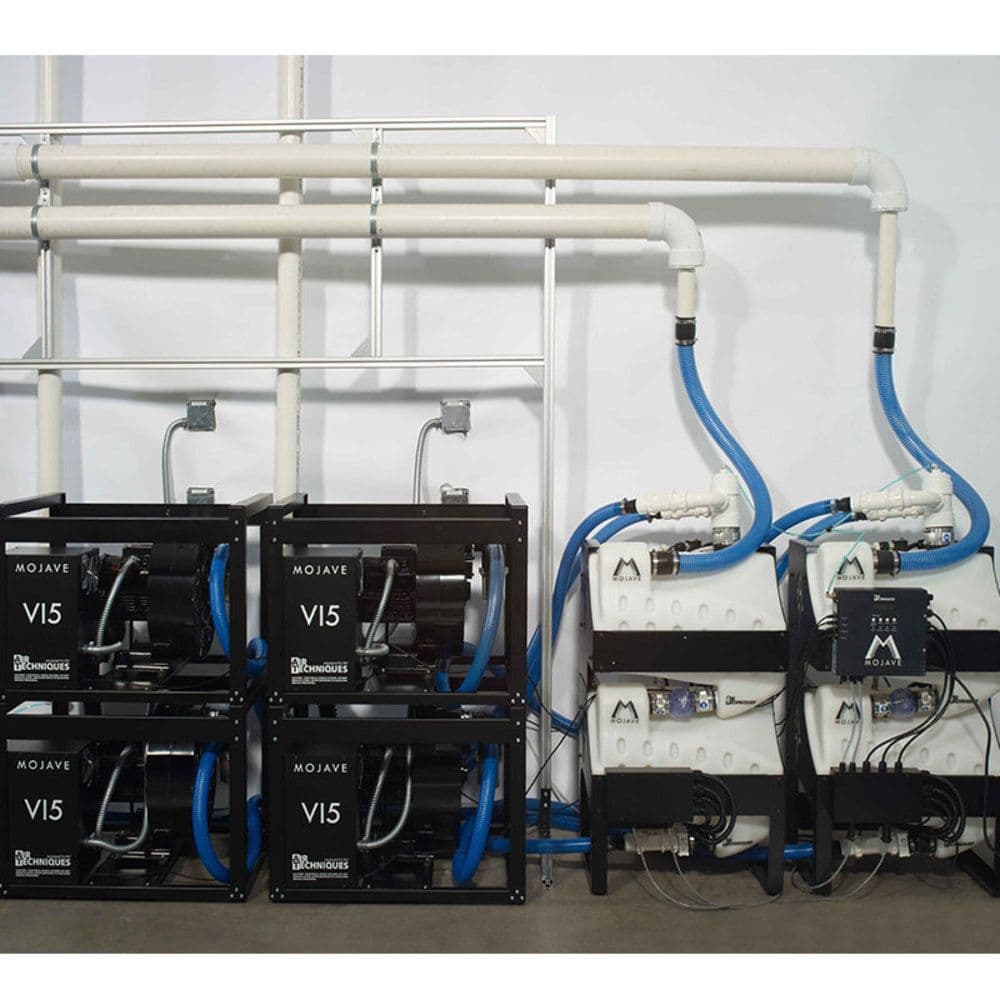

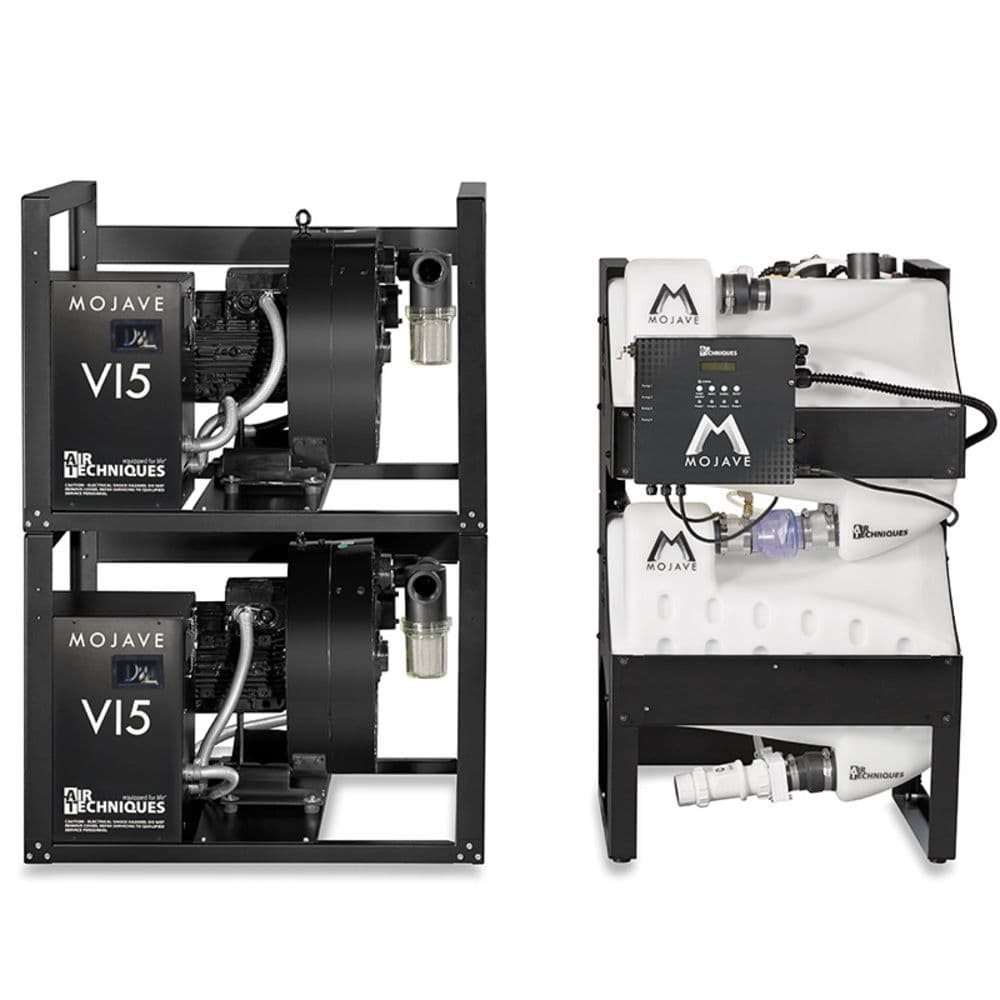

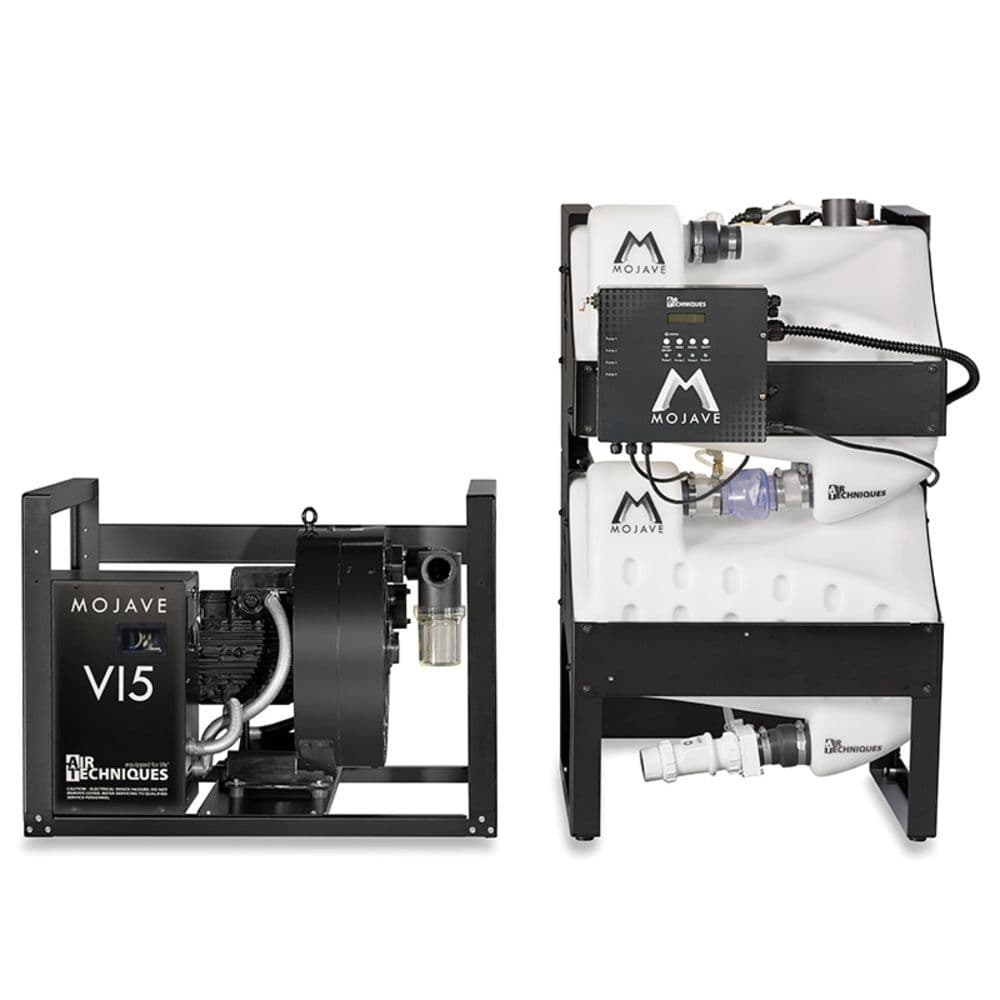

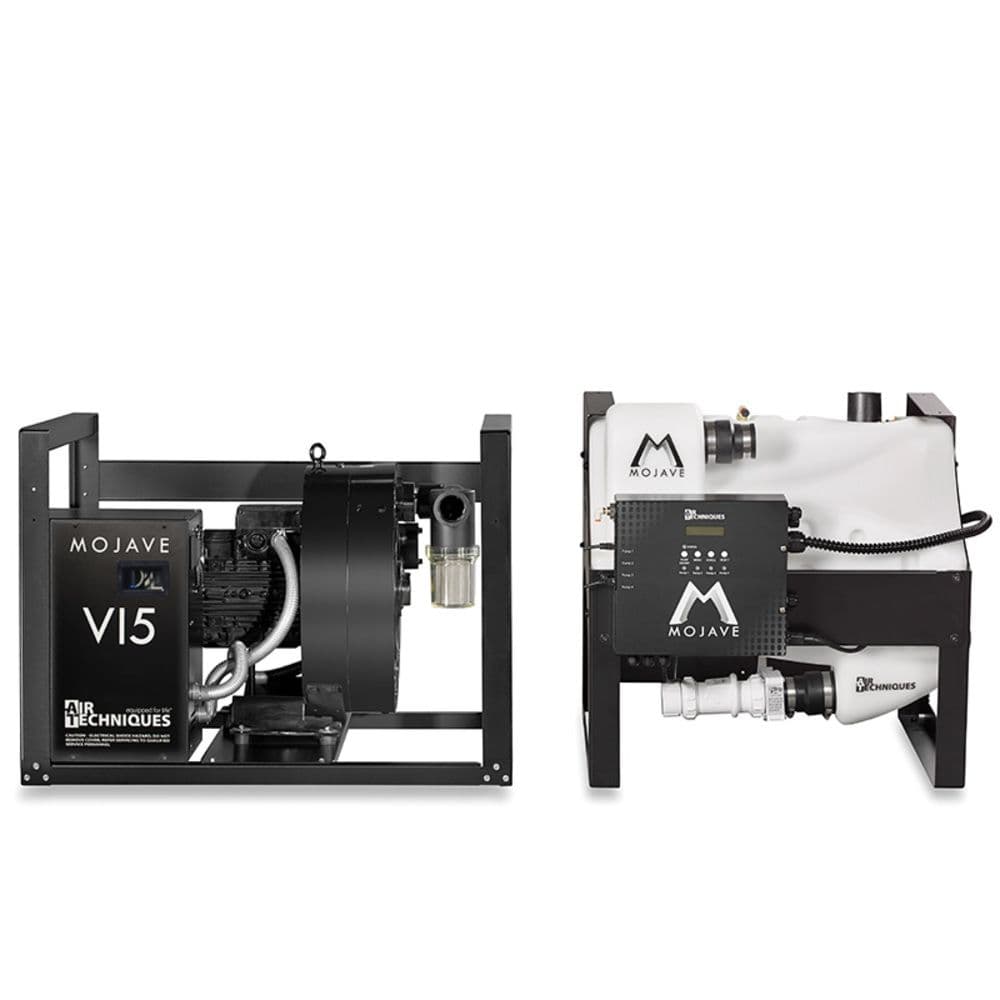

Air Techniques Mojave® Monitor V15M Vacuum System

Air Techniques is North America's largest manufacturer of air compressors and evacuation systems for dental offices. We provide more offices with air and vacuum systems than all other companies combined.

Why "dental air"? Dental Air is the term we use to describe air that is free from oil, particulates, bacteria and other oral contaminants so that it is not introduced into your patient's mouth nor contaminate preparations prior to bonding, cementation and other restorative procedures. Air Techniques was the first company to introduce oil-free compressors with desiccant drying and we are still the only company to provide advanced Membrane Dryer Technology.

• Our evacuation systems deliver best-in-class performance - wet-ring or dry vacuum. All models are designed for simple maintenance and continuous high-performance operation.
• Air and vacuum solutions for offices from as small as two operatories to as large as dental school clinics with 250 or more operatories.
• Our AS Series Clinical Compressors (AS 60/120) and VS Series Clinical Vacuum Systems (VS 200/300/400/500/600) provide high performance technology with low maintenance requirements.
• The newest Clinical Vacuum System is our Mojave V15 Series Dry Vacuum.
• Mojave V15 is a mid-sized solution for clinics smaller than 100 stations, virtually eliminating water consumption.
• When combined with their reduced power consumption features, Mojave is the leader in high performance, low energy consumption.
• Lower costs, higher performance, better for the environment.

The Smart Choice

Air Techniques Mojave® Monitor V15M Vacuum System are designed to provide high operational performance with low operating costs and virtually no maintenance, all in a compact footprint. Using intelligent components including a Variable Frequency Drive, the Mojave Master Controller, and direct integration with Vision Monitor IoT platform, you can feel confident your vacuum system will always deliver optimal performance based on your needs. Whether it’s time to replace your current vacuum, considering the refurbishment of your practice or even building a new facility, Mojave DryStar Monitor is your ideal solution.

Mojave Master Controller and Vision Monitor

The Mojave Master Controller (MMC-M) automatically adjusts the speed of the pump(s) to maintain vacuum level regardless of how many users come on-line. A vacuum transducer senses when a HVE or SE is opened, increasing the frequency of the 3-phase motor to quickly provide the flow rate needed on-demand.

Monitors and displays pump frequency, vacuum level and temperature on a color touchscreen.

• • Set vacuum level from 8 to 10 inHg (V15M models up to 15 inHg).
• • Records the run time in hours, of up to 4 connected pumps.
• • Balances the vacuum load equally across all running pumps prolonging the life of the pumps.
• • Displays any error/fault codes and sends error/fault codes to users through Vision Monitor.
• • Controls the washout and diagnosis functions.
• • Allows remote monitoring and access through the Vision Monitor Cloud platform.

Vision Monitor Features:

• • IoT Condition Monitoring system with web-based user interface (on web and mobile

App: Apple & Android)

• • Alarms and (pre-) warnings are reported immediately to the desktop and by email
• • Remote access to practice equipment via Cloud: easy, safe and secure device

configuration

• • Legacy equipment monitoring for older or Classic, non-networked devices

(Connect Box)
