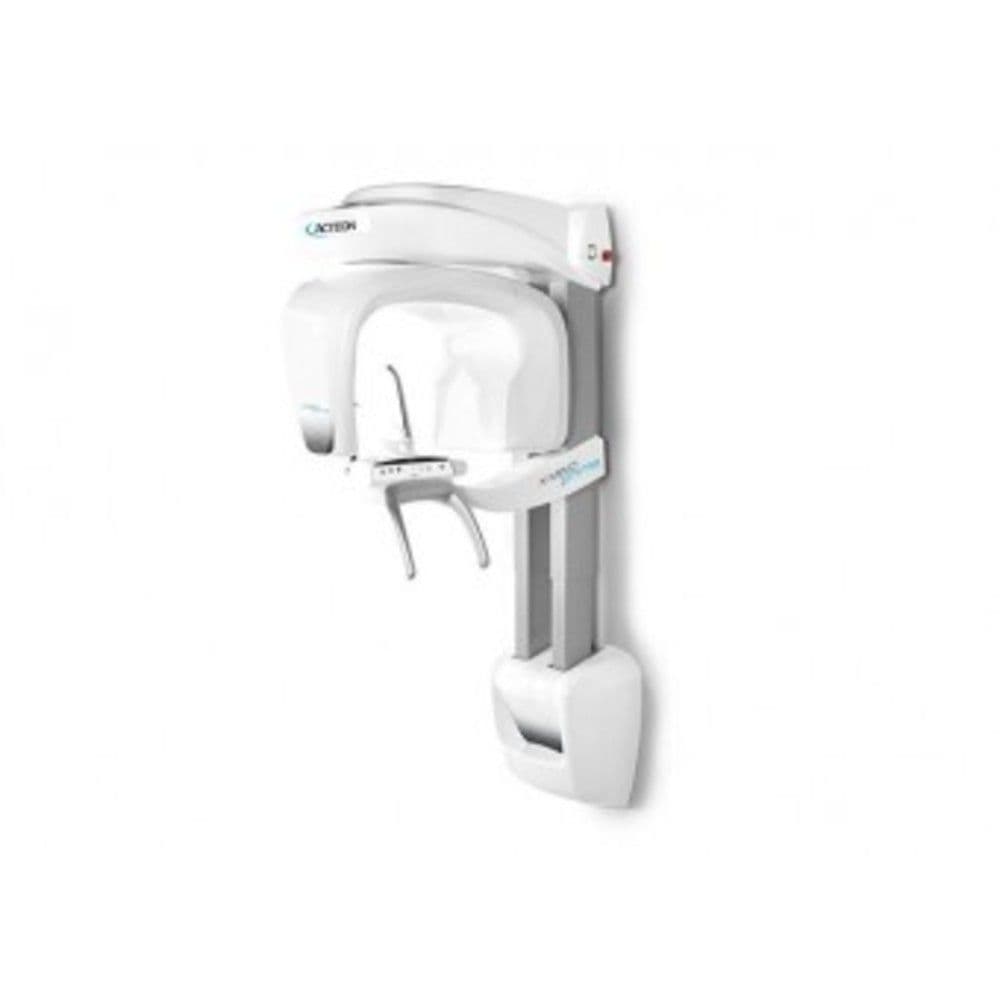

ACTEON X-Mind Prime 2D
Description
X-Mind® prime offers a full set of panoramic exams tailored to meet all your dental clinical applications. It provides all the panoramic exams required for general dentistry: dental panoramic, temporomandibular joints, sinuses.
Panoramic
- Standard
- Half Panoramic (right/left)
- Frontal Dentition
- Low Dose
- Ortho Rad
Bitewing
- Single (right/left)
- Bilateral
- Sinus
TMJ
- Standard
- Single phase
X-Mind® prime is ready to install! Delivered completely assembled at your practice, you are all set-up in only one hour. As simple as one box, one technician, two steps and that’s it! It does not interrupt the daily work and operations of the office, helping you to save time.
Specifications
X-Mind® prime 2D:
X-RAY SOURCES
Tube type: D-058 (Toshiba)
Total filtration: 2.0 mm AI eq. @ 70kVp
Tube voltage: 60 - 70 kV
Anodic current: 2-7.1 mA
Focal spot: 0.5 mm
SENSOR
Type: CCD
Pixel size: 48 μm
ACQUISITION
PAN Programs: Panoramic (adult/child) - TMJ open/closed mouth in lateral projection - Maxillary sinuses (P-A) - Half panoramic (left/right). Low dose panoramic - Frontal dentition - Ortho Rad Panoramic - Bitewing (left/right/double)
Exposure time: up to 14.4 sec
Grey levels: 4096 - 12 bits
MECHANICAL DATA
Footprint: 43.6’’ x 37.5’’
Height: Max 86.2 inches
Weight: 137 lbs
IEC
Class & Type: Class I with type B applied parts according to IEC 60601-1 classification. X-Mind® prime is manufactured by Villa Sistemi Medicali and distributed by ACTEON.
WORKSTATION MINIMUM REQUIREMENTS
PAN/CEPH WINDOWS (WORKSTATION):
Processor: Intel i5
Hard Disk: 1TB 7200 rpm
RAM: 8 GB
Graphics card: OPEN GL 2.1 compatible (suggested an NVIDIA GT/GTX)
Screen resolution: 1600 x 1024
Network card: INTEL CT 1000 pro
Operating system: Windows 7 Professional 64 bits
CLIENT WINDOWS:
Processor: Intel i5
Hard Disk: 300 GB
RAM: 4 GB or 8 GB (for big FOV DICOM stacks)
Graphics card: Nvidia Geforce or Nvidia Quadro with 1 GB dedicated RAM
Screen resolution: 1600 x 1024
Network card: 100 Mb for PAN/CEPH
Operating system: Windows 7 64 bits
CLIENT MAC OS
Processor: Quadcore 2.6 GHz
Hard Disk: 300 GB
RAM: 4 GB or 8 GB (for big FOV DICOM stacks)
Graphics card: Nvidia Geforce or Nvidia Quadro with 1 GB dedicated RAM
Screen resolution: 1600 x 1024
Network card: 100 Mb for PAN/CEPH
Operating system: OS X Sierra (10.12)
