ACTEON PSPIX2 Digital X-Ray Processor

Acteon PSPIX Digital X-Ray Processor

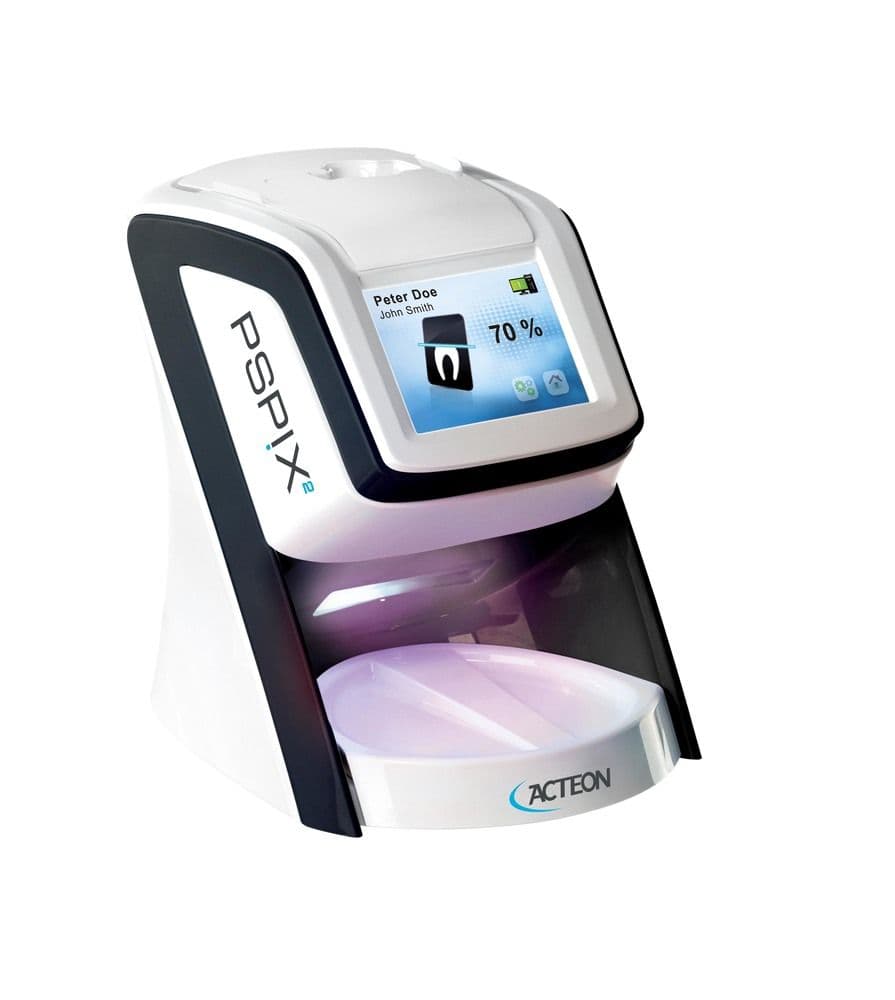

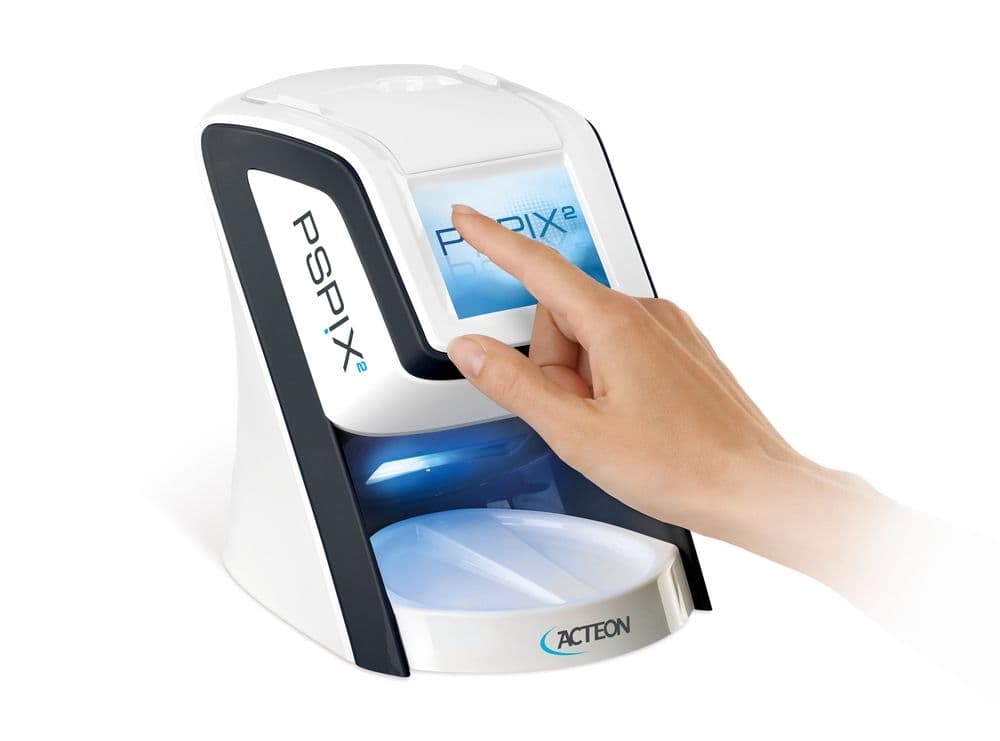

PSPIX offers cutting-edge technology and design with a large color touchscreen that provides intuitive indications for quick and easy use. Its Sopro Imaging software is compatible with MAC and Windows, and provides accurate, sharp, and contrasted images to ensure reliable clinical diagnosis.

Request Quote

Let Us Show How It Works

Schedule a Demo

Financing Options Available

Request Financing

Description

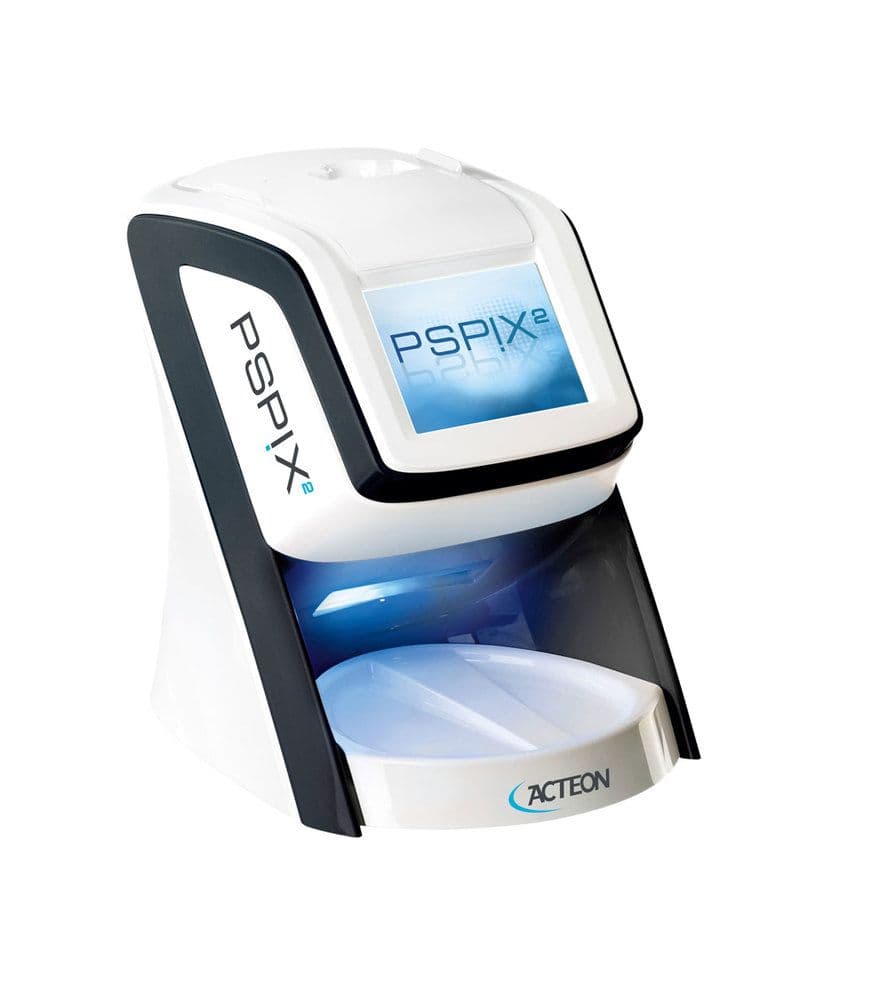

ACTEON created PSPIX2 to be the first personal imaging plate scanner on the market. The single- user, digital phosphor plate imaging scanner provides images within a few seconds, saving time and increasing the efficiency of the intraoral imaging process.

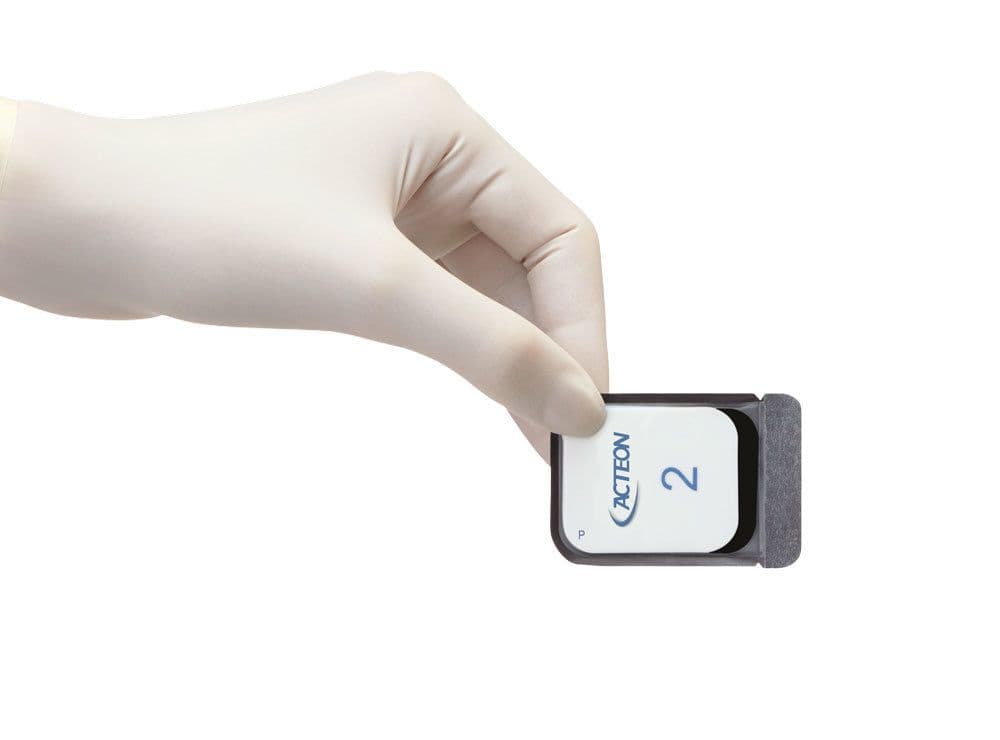

Hygiene is at the core of PSPIX. Hygiene bags provide a protective cover for the imaging plates, and the touch-screen stylus also allows for hygienic use. PSPIX’s removable parts comply with the latest disinfection standards, and optional autoclavable parts are available to eliminate the risk of infection.

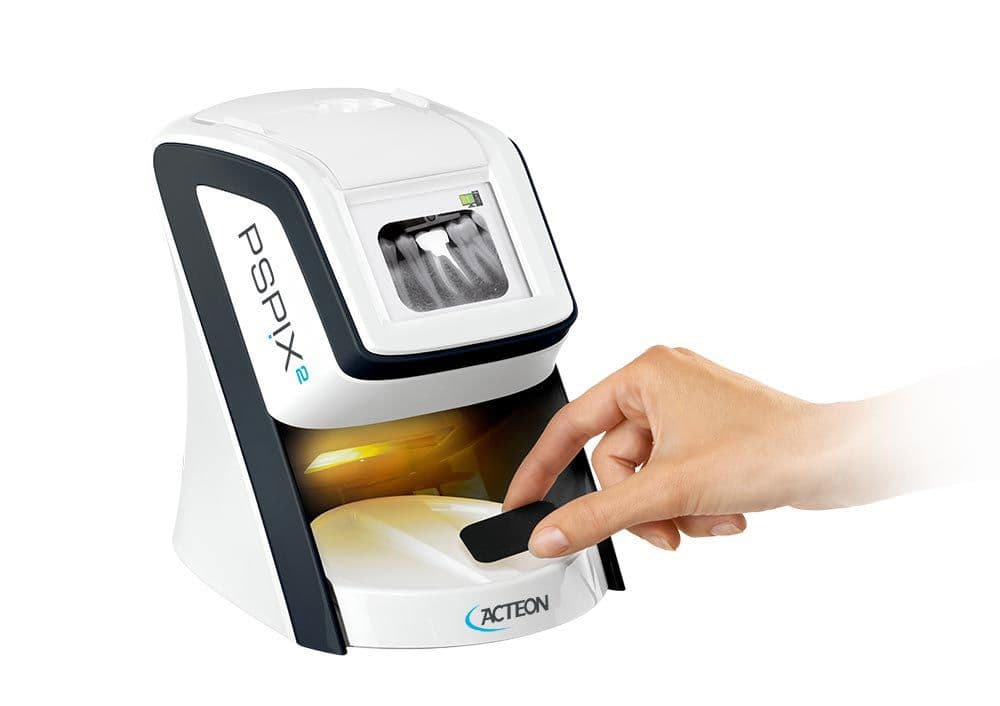

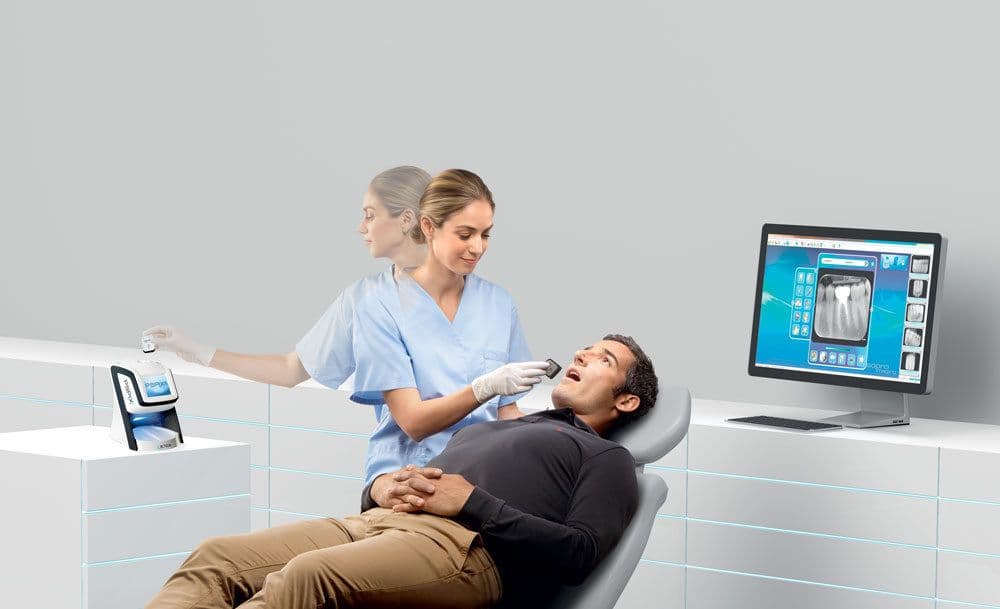

PSPIX has a compact footprint and is designed to be placed chairside in each operatory. Its “Click and Scan” concept saves time by automatically detecting the imaging plate’s size and optimizing the image before displaying it on the correct workstation. The imaging plate is automatically erased and ejected for immediate reuse.

Specifications

PSPIX DEVICE
Theoretical resolution - 20 lp/mm
Scan Time (fast mode) - 1.6s - 2.7s
Scan Time (high definition mode) - 2.1s - 3.6s
Connection Ethernet - RJ-45
Dimensions - L. 154 x D. 204 x H. 193mm
Weight - 2.6kg / 5.732lbs
Operating voltage - 100 ~ 240V, 50/60Hz

WINDOWS® MINIMUM CONFIGURATION REQUIRED
Operating system - Windows XP Pro SP3
Processor - Intel® Pentium IV – 1.3GHz
RAM - 512MB
Hard disk - 250GB
Graphic card - 32MB RAM unshared memory compatible DirectX 9
Screen resolution - 1024 x 768
Ethernet board - 100Mb\s - 1Gb\s

WINDOWS® RECOMMENDED CONFIGURATION
Operating system - Windows 7 Pro SP1
Processor - Intel Core i3
RAM - 2GB
Hard disk - 500GB
Graphic card - Chipset Nvidia® or ATI®
512MB unshared memory compatible DirectX 9 or more
Screen resolution - 1280 x 1024 or more
Ethernet board - 1Gb\s

MAC® MINIMUM CONFIGURATION REQUIRED
Computer - MacBook® Pro 13.3” or iMac® 21.5”
Operating system - Mac OS X Mavericks
Processor - Intel® Core 2
RAM - 2GB
Ethernet board - 1Gb\s

MAC® RECOMMENDED CONFIGURATION
Computer - iMac 27”
Operating system - Mac OS X Mavericks or later
Processor - Intel Core i7
RAM - 4GB
Ethernet board - 1Gb\s

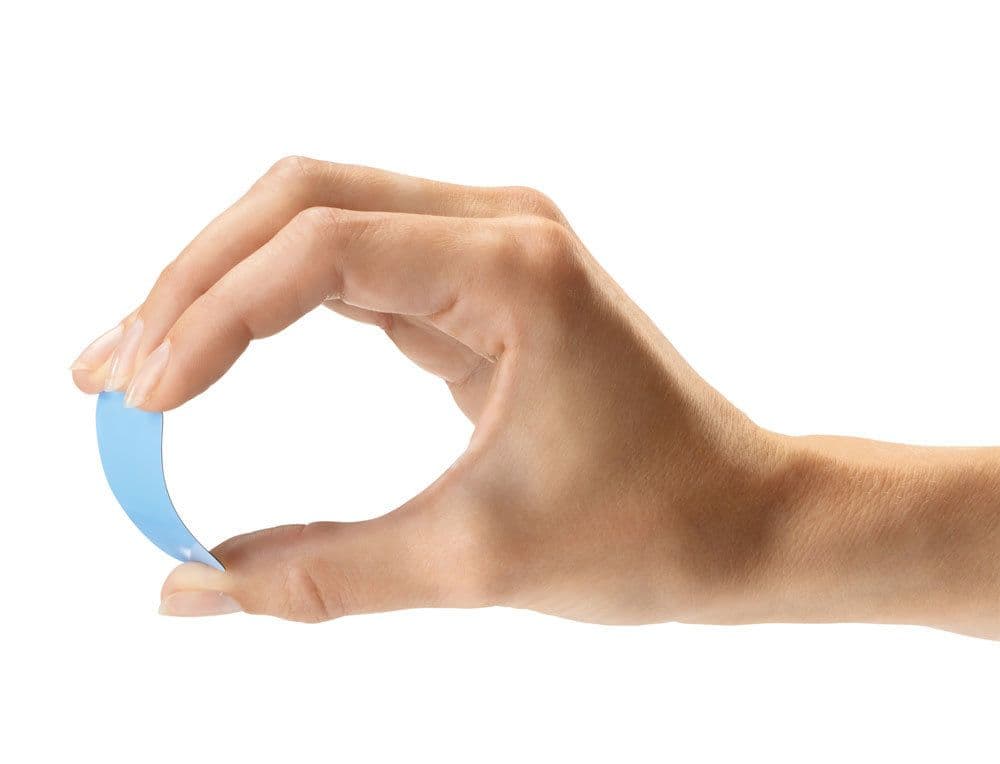

IMAGING PLATES
Dimensions IP Size 0 - 22 x 35mm
Dimensions IP Size 1 - 24 x 40mm
Dimensions IP Size 2 - 31 x 41mm
Dimensions IP Size 3 - 27 x 54mm
Dimensions IP Size 4 (2 x size3) - 52 x 54mm
