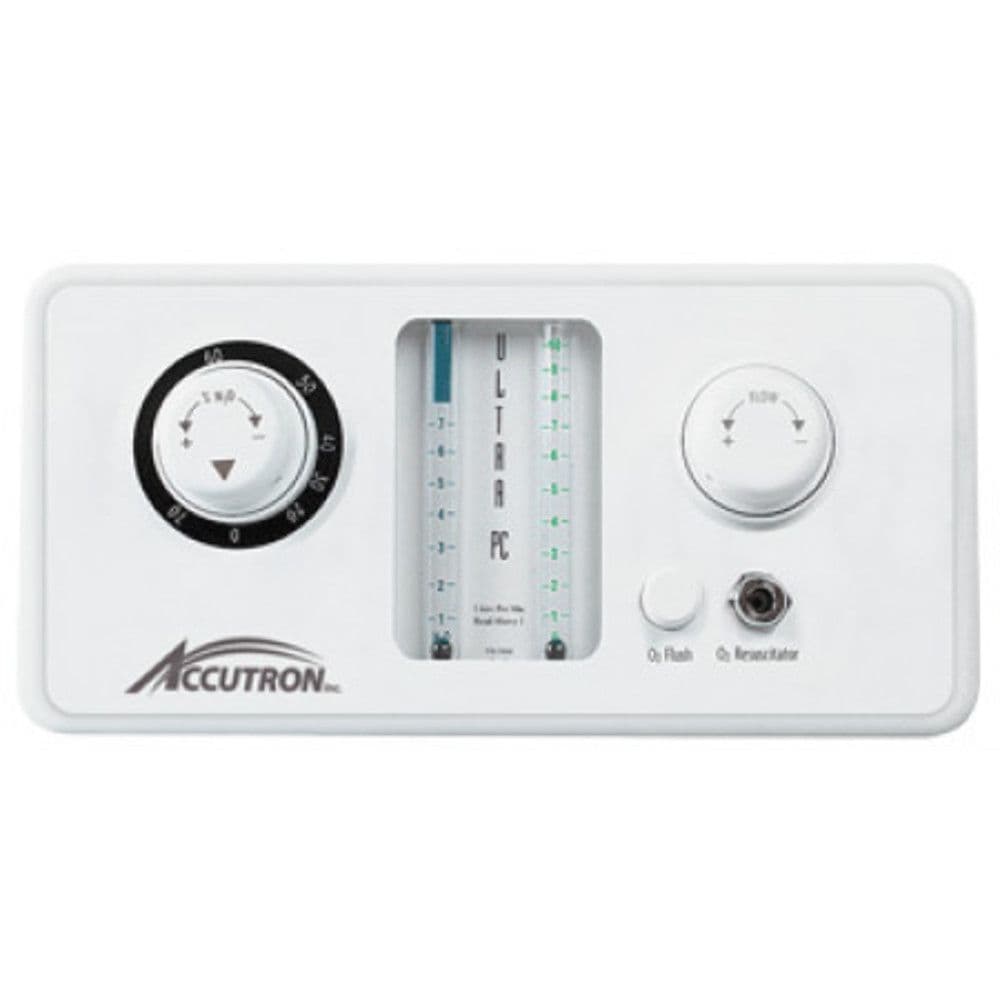

Accutron™ Ultra PC™ Cabinet Mount Flowmeter

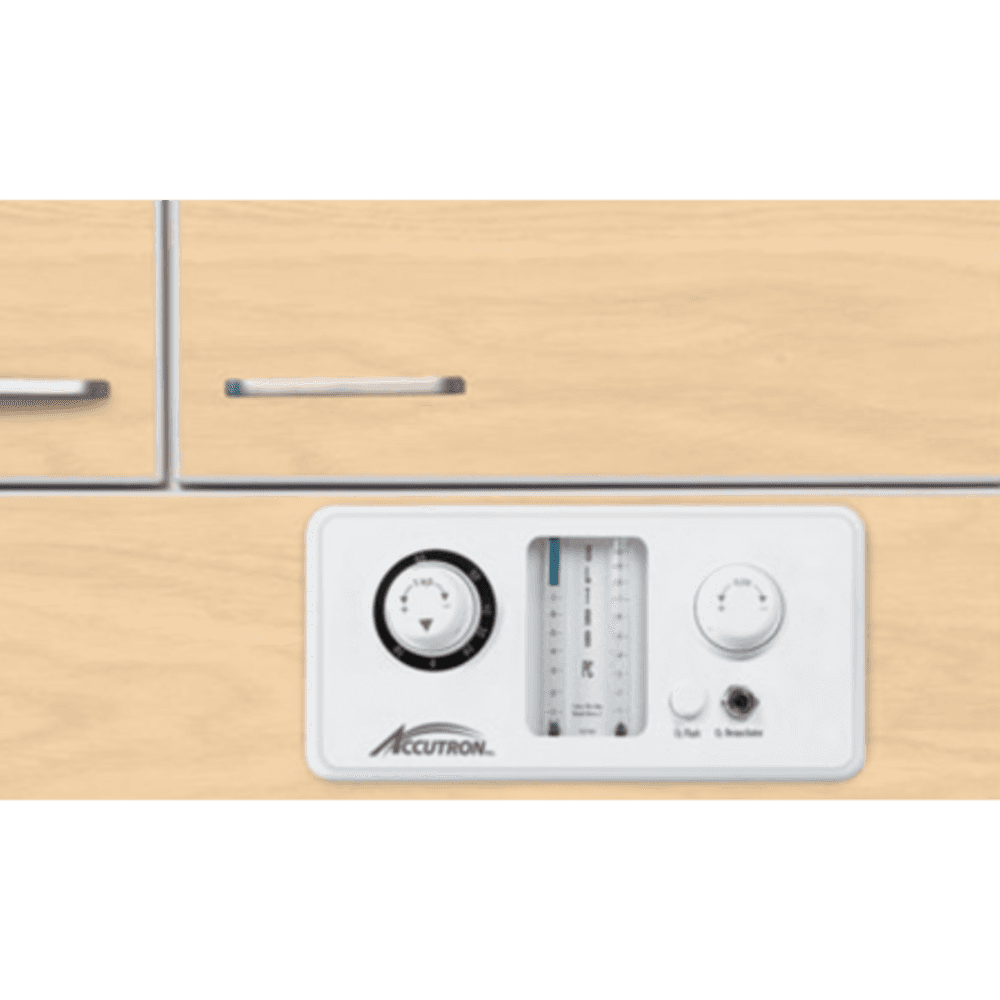

The Ultra PC™ % Cabinet Mount is a flowmeter used to control and monitor the delivery of nitrous oxide and oxygen to a patient. It is intended to be mounted into cabinetry. Three different central system package configurations are available.

Financing Options Available

Request Financing

Description

The Ultra PC™ % Cabinet Mount Flowmeter offers a solution to the increasingly complex issue of operatory space planning. The low-profile unit complements modern operatory design and can be built into a variety of office cabinetry configurations. Three different central system packages are available.

All Accutron flowmeters carry a 2-year warranty – the longest flowmeter warranty in the dental industry.

Specifications

Dimensions (W x H x D): 9 3/4" x 4 3/4" x 3 1/2" or 24,8 cm x 12,1 cm x 8,9 cm

Mounted Dimensions (W x H x D): 9 3/4" x 4 3/4" x 1 1/4" (to end of knobs) or 24,8 cm x 12,1 cm x 3,2 cm (to end of knobs) and 9 3/4" x 4 3/4" x 1/4" (front plate only) or 24,8 cm x 12,1 cm x 0,6 cm (front plate only)

Weight: 6 lb (2.7 kg)

Mixed Gas Outlet Diameter: 7/8" nominal (22 mm)

Oxygen Inlet: Male DISS (CGA 1240)

Nitrous Oxide Inlet: Male DISS (CGA 1040)

Nitrous Oxide Mix Ratio Range: 0-70%

Oxygen Flow Range: 1-10 LPM

Nitrous Oxide Flow Range: 0-7 LPM

Inlet Pressure (each gas): 50-55 psi

Resuscitator Connector: Quick Connect (1/4" Imperial)

Resuscitator Connector Flow: 100 LPM Oxygen
