Accutron™ Digital Newport Flowmeter System™
Accutron™ Digital Newport Flowmeter System™
HuFriedyGroup

Accutron™ Digital Newport Flowmeter System™

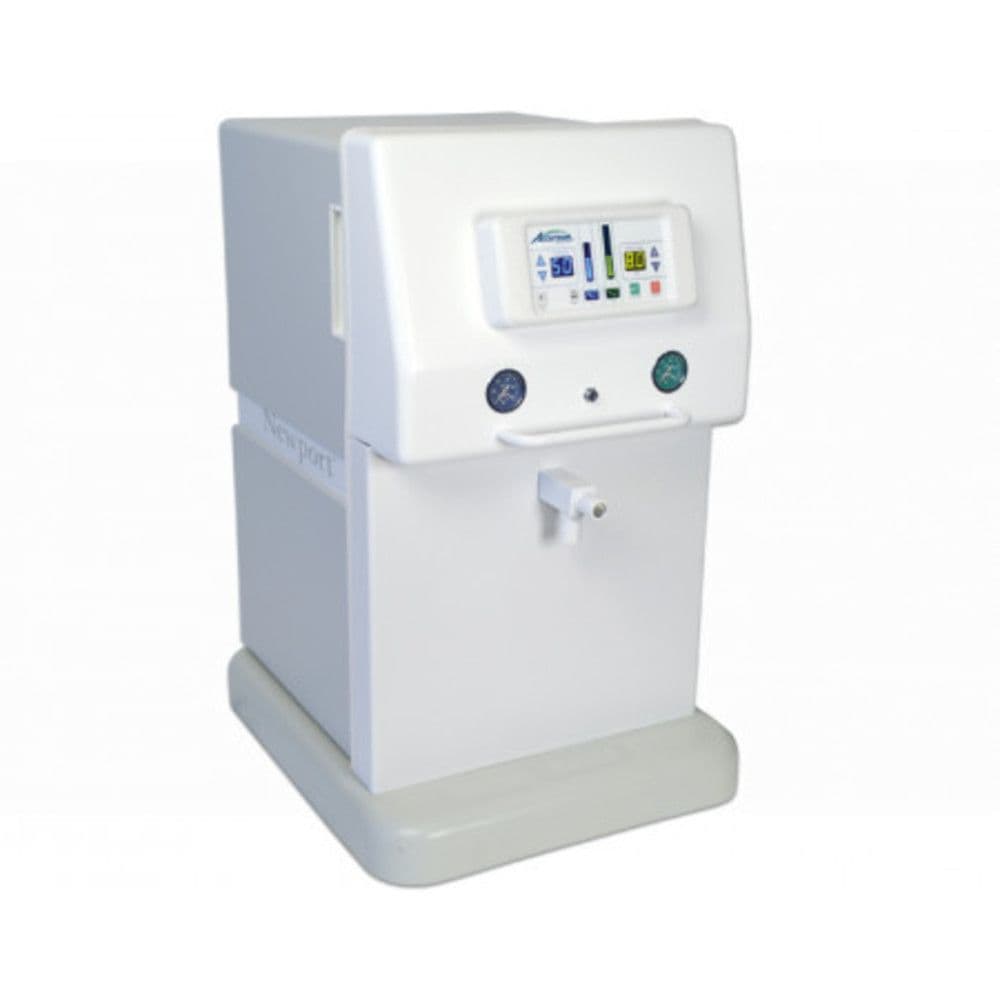

The Digital Newport Flowmeter System™ is used to control and monitor the delivery of nitrous oxide and oxygen to a patient. Parameters are brightly lit via LED and displayed digitally. It is an enclosed 4-cylinder portable system.
Financing Options Available
Request Financing

Description

The Digital Newport Flowmeter System™ houses a percentage flowmeter that has all of the operating features of the Digital Ultra™ Flowmeter, plus its enclosed 4-cylinder design makes it a user-friendly portable that can easily be moved from operatory to operatory. The unit's height allows it to be stored under counter space that is open below; if not stored its flat surface can function as additional counter space.

All Accutron flowmeters carry a 2-year warranty – the longest flowmeter warranty in the dental industry.

Specifications

Dimensions: 19 1/4" x 31 3/4" x 24" (48,9 cm x 80,6 cm x 61 cm)

Weight: 75 lb (34kg)

Mixed Gas Outlet Diameter: 7/8" Nominal (22 mm)

Oxygen Inlet: Male DISS (CGA-1240)

Nitrous Oxide Inlet: Male DISS (CGA-1040)

Nitrous Oxide Ratio Range: 0-70%

Nitrous Oxide Flow Range: 0-6.9 LPM

Resuscitator Connector: Quick Connect (1/4" Imperial)

Resuscitator Connector Flow: 100 LPM Oxygen
