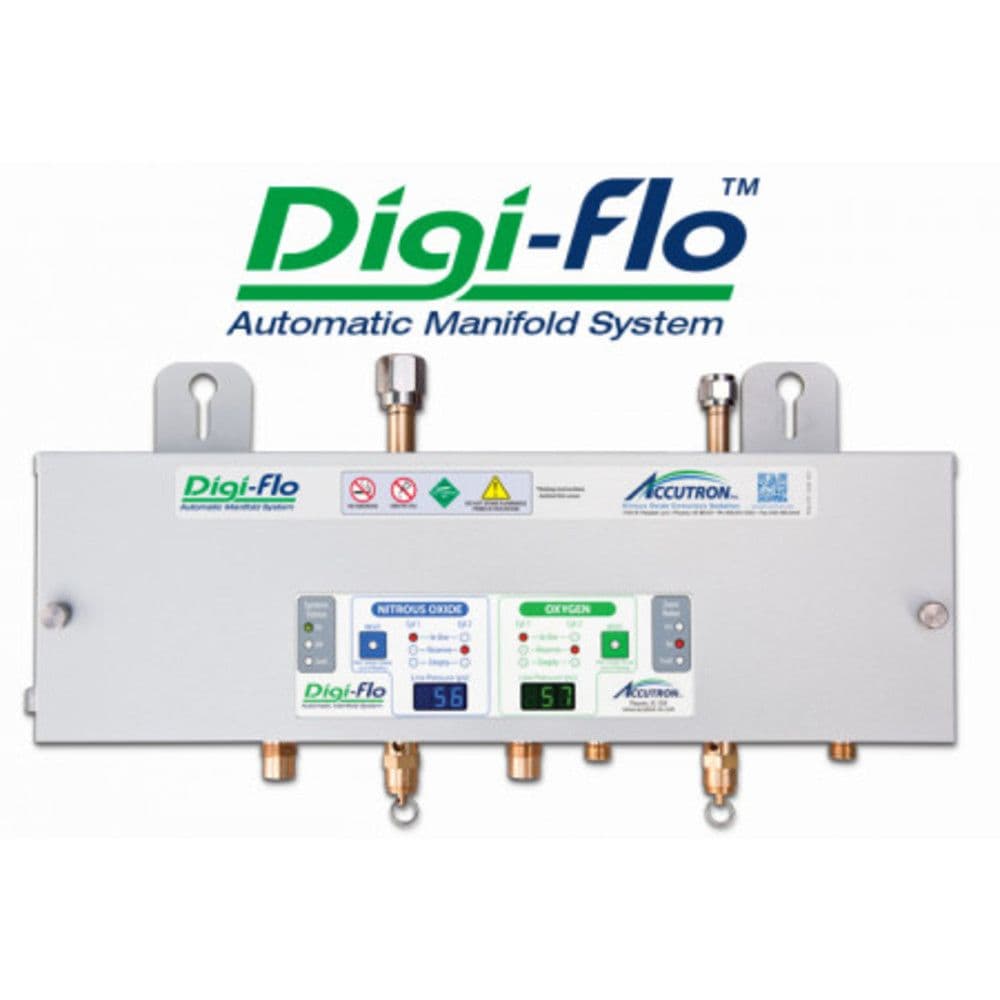

Accutron™ Digi-Flo™ Automatic Switching Manifold System
Description
The Digi-Flo™ Automatic Switching Manifold/Alarm is designed to safely and economically deliver nitrous oxide and oxygen gases to dental operatories. Regulators control the gas line pressure at 50-55 psi, and a pressure relief valve protects the gas lines and equipment against excessive line pressure. In the event of line pressure changes, the alarm system provides audio and visual alerts. Cylinder switching is an automatic process. Other unique features include:
- Clear and precise LED numeric line pressure readings
- Single or multiple zone valve/s and/or alarm panel capacity
- Easily accessible components; field upgradeable software
- Optional conduit adapter box available if local codes require wiring inside conduit
Note: A zone valve is required when installed in a remote location.
Specifications
Dimensions with cover: 18" x 9" x 3" (46 cm x 23 cm x 8 cm)
Working Pressure:
50-55 psi Hose Length: 4 ft.
N2O Outlet: N2O DISS
O2 Outlet: O2 DISS
Primary Voltage: 120 volts
Cable: Category 6, Shielded, Ethernet 4 twisted pr., RJ-45 end connectors
