Green X
Vatech

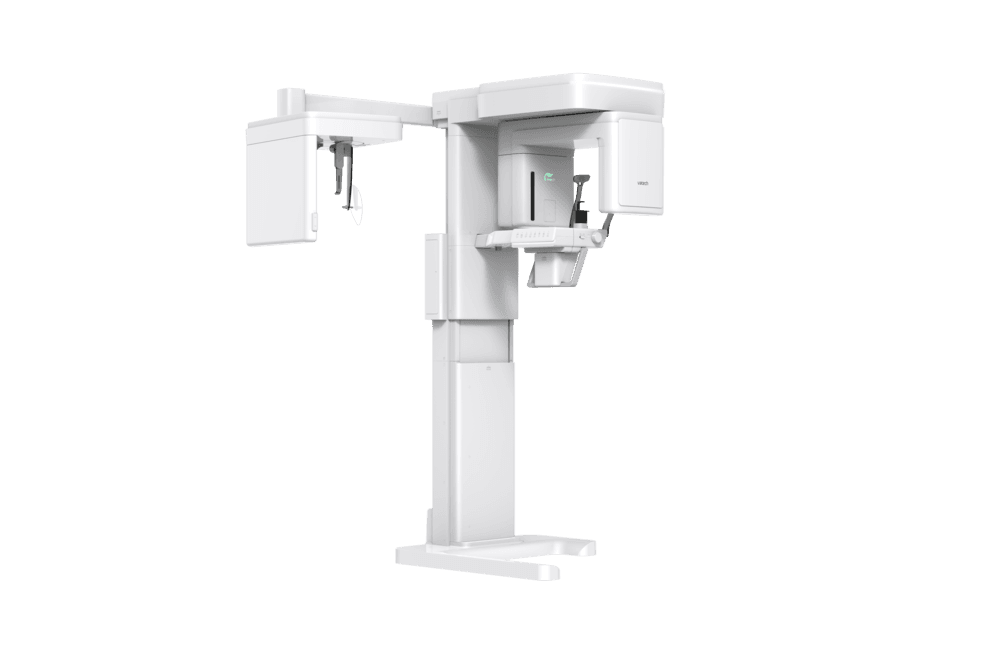

Vatech Green X

The Green X is an advanced digital X-ray imaging system that provides high quality images with lower radiation. The Green X offers a range of selectable field of view. The multi FOV option allows users to select the optimum FOV mode while minimizing exposure to areas that are not in the region of interest.
Financing Options Available
Request Financing

Description

The Green X is an advanced digital X-ray imaging system that provides high quality images with lower radiation. The Green X offers a range of selectable field of view. The multi FOV option allows users to select the optimum FOV mode while minimizing exposure to areas that are not in the region of interest. With its 4cm x 4cm volume and 50-micron voxel size, the Endo more will optimize treatment of highly-focused regions of interest. It is ideal for endodontic use because the dentist can achieve an extraordinary image in a high-resolution voxel size.

Specifications

FUNCTION

FOCAL SPOT SIZE

CT FOV SIZE

VOXEL SIZE

SCAN TIME

GRAY SCALE

TUBE VOLTAGE / CURRENT

WEIGHT

DIMENSIONS

CT + Pano + Ceph + Model Scan

0.5 mm (IEC 60336)

4x4, 5x5, 8x5, 8x8, 12x9, 16x11, 18x15 cm

4x4 : 0.05 mm
5x5 : 0.08 mm / 0.12 mm
8x5 / 8x8 : 0.12 mm / 0.2 mm
12x9 / 16x9 / 16x11 / 18x15 : 0.2 mm / 0.3 mm

PANO 4.0 sec / 14.1 sec
CEPH 1.9 sec / 4.9 sec
CBCT 2.9 sec (5x5-8x8) / 9.0 sec (12x9-18x15) / 18.0 sec (4x4)

14 Bit

60 - 99 kVp / 4 - 16 mA

Without CEPH unit:
 365.74 lbs - without Base / 487.00 lbs - with Base

Without CEPH unit:
 42.716” (L) x 52.893” (W) x 91.157” (H) - without Base
 42.716” (L) x 52.893” (W) x 92.338” (H) - with Base

With CEPH unit:
 420.86 lbs - without Base / 542.11 lbs - with Base


With CEPH unit:
 75.019” (L) x 54.129” (W) x 91.157” (H) - without Base
 75.019” (L) x 54.129” (W) x 92.338” (H) - with Base
