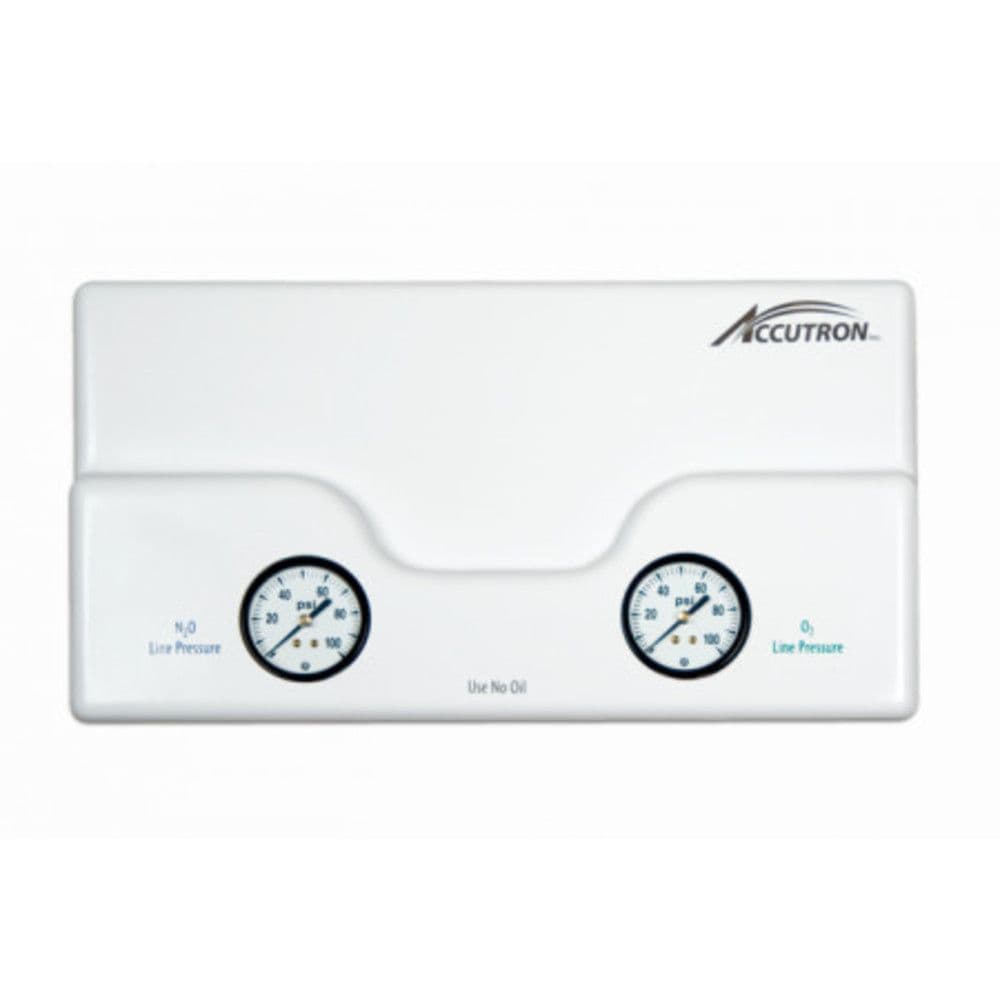

The Guardian Monitor™ Conventional Manifold/Alarm is an easy-to-use operator controlled system. It is designed to safely and economically deliver nitrous oxide and oxygen gases to dental operatories. Regulators control the gas line pressure at 50-55 psi, and a pressure relief valve protects the gas lines and equipment against excessive line pressure. In the event of line pressure changes, the alarm system provides audio and visual alerts. Switching cylinders is done manually.
Note: A zone valve is required when installed in a remote location.
Dimensions with cover: 15" x 8.5" x 3.5" (38 cm x 22 cm x 9 cm)
Working Pressure: 50-55 psi
Hose Length: 3 ft.
N2O Outlet: N2O DISS
O2 Outlet: O2 DISS
