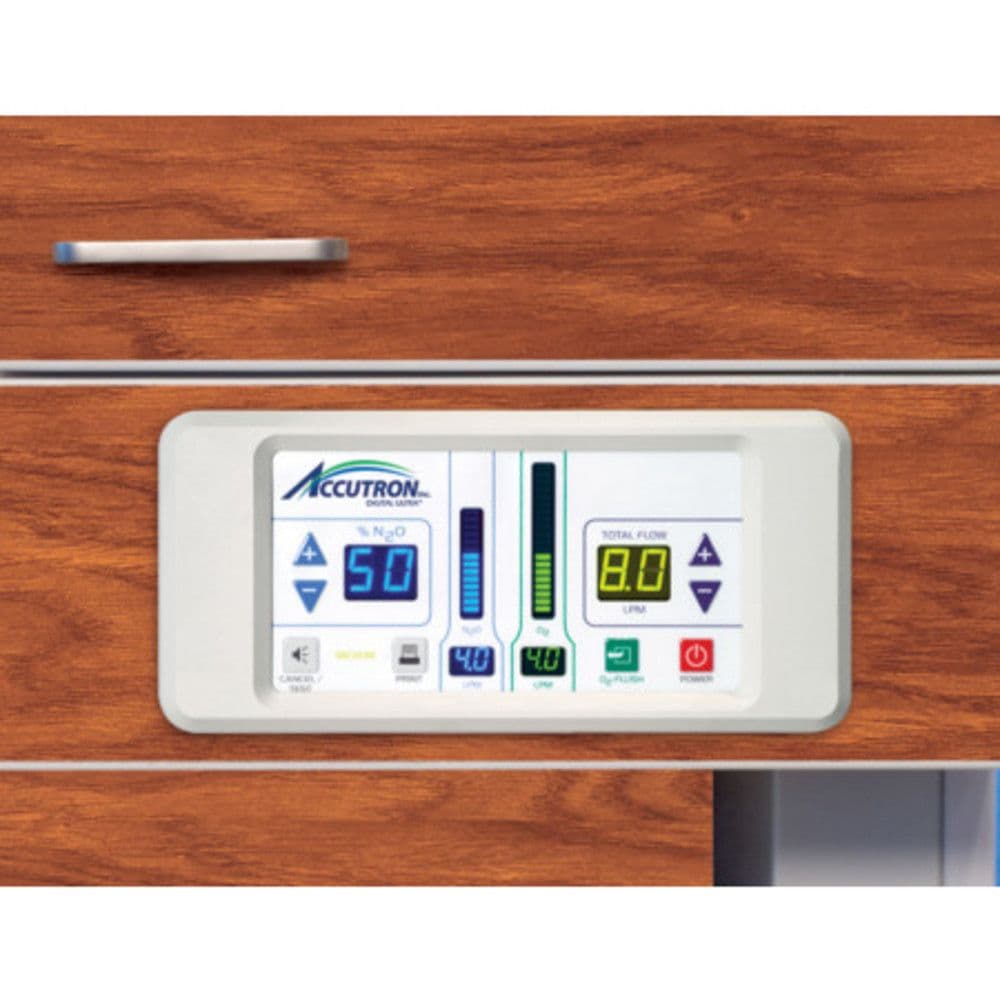

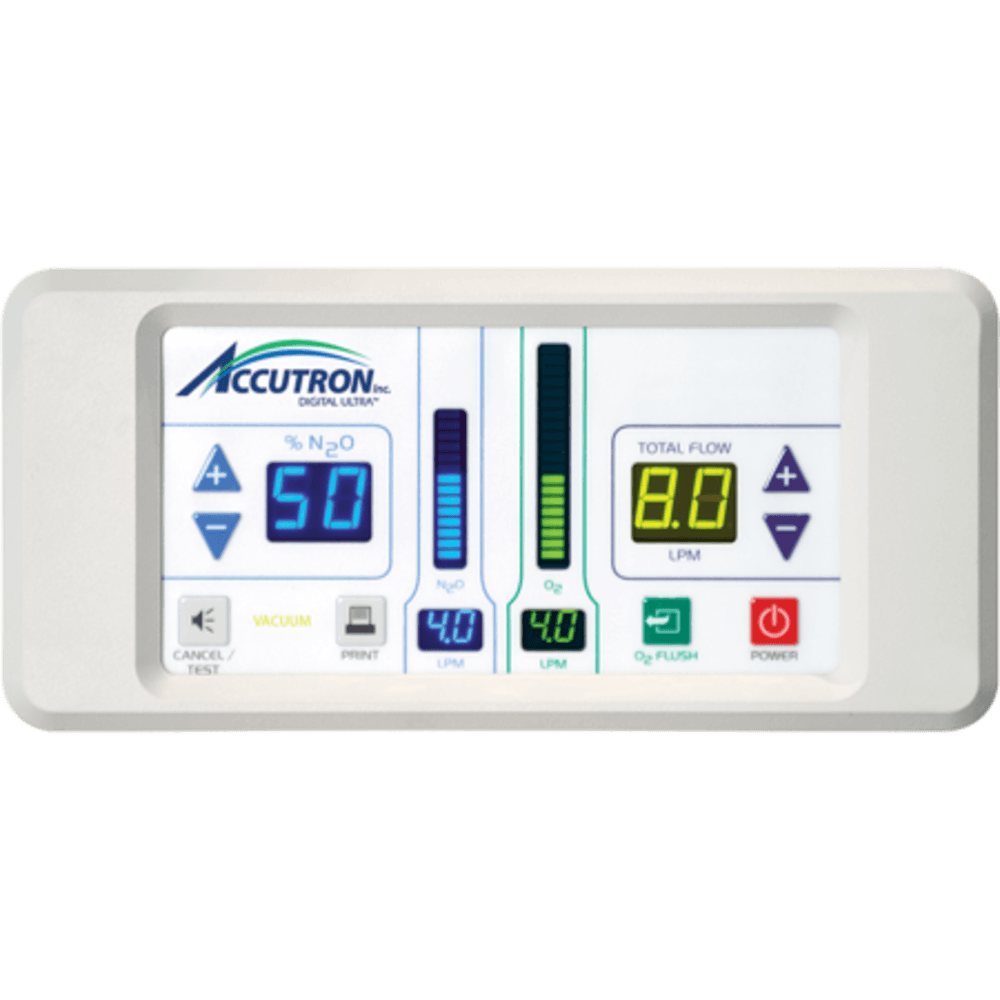

The Accutron™ Digital Ultra™ Flushmount Flowmeter is the right choice for clinicians who prefer to work in a digital environment but want critical nitrous oxide and oxygen parameters displayed both numerically and as electronic flow tubes. Enjoy the ease of color-coded, fingertip controls and a sealed flush surface to disinfect or barrier-protect. Four different configurations with central system packages are available.
All Accutron flowmeters carry a 2-year warranty – the longest flowmeter warranty in the dental industry.
Dimensions (W x H x D) Flushmount Control Module: 9 1/4" x 4" x 1 1/2" (23,5 cm x 10,8 cm x 3,8 cm)
Dimensions (W x H x D) Remote Main Module: 8" x 4" x 7 1/2" (18,4 cm x 8,9 cm x 19,1 cm) Mounted Dimensions (W x H x D): 9 1/2" x 4 1/4" x 1/4"
Weight Flushmount Control Module: 1.3 lbs (0.6 kg)
Weight Remote Main Module: 6.1 lbs (2.8 kg)
Mixed Gas Outlet Diameter: 7/8" Nominal (22 mm)
Oxygen Inlet: Male DISS (CGA 1240)
Nitrous Oxide Inlet: Male DISS (CGA 1040)
Nitrous Oxide Mixed Ratio Range: 0-70%
Oxygen Flow Range: 1.0-9.9 LPM
Nitrous Oxide Flow Range: 0-6.9 LPM
Inlet Pressure (each gas): 50-55 psi
Resuscitator Connector: Quick Connect (1/4" Imperial) at Remote Outlet
Resuscitator Connector Flow: 100 LPM Oxygen
Power Requirements: 100-240 Volt AC; 50-60 Hz
-
