  • Midmark ClearVision® CR Digital Radiography Reader
ClearVision® CR
ClearVision® CR
ClearVision® CR

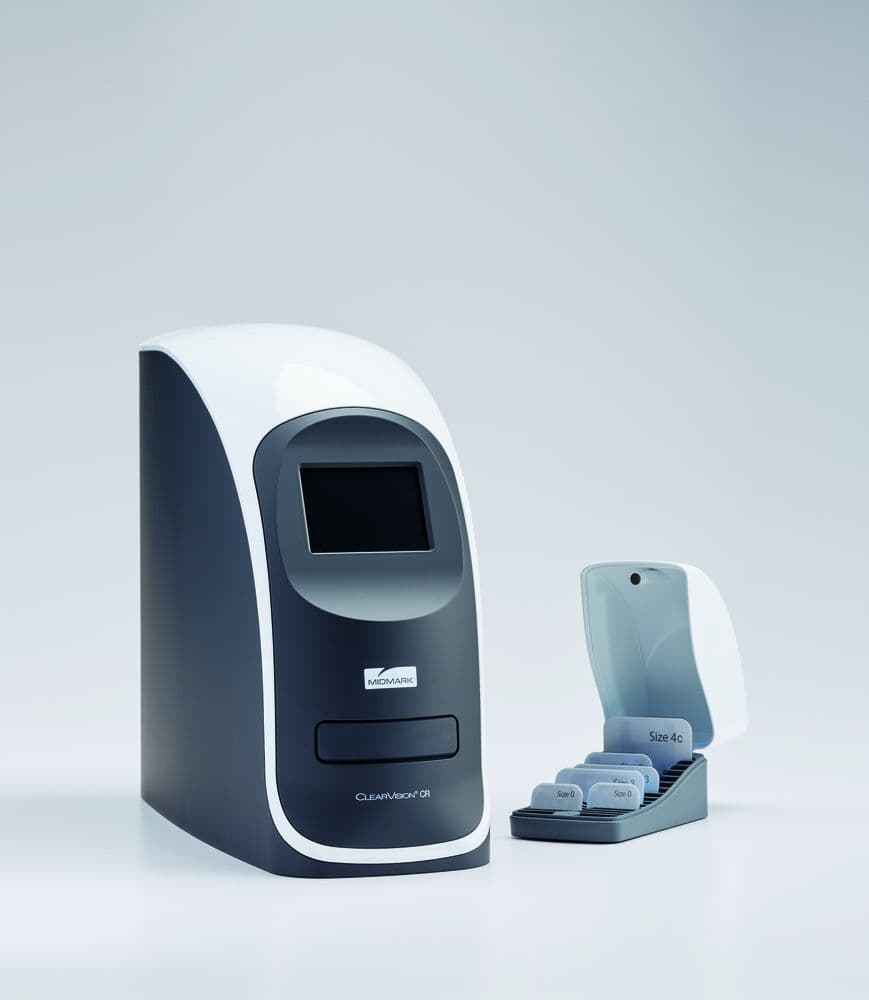

ClearVision® CR Family
Midmark

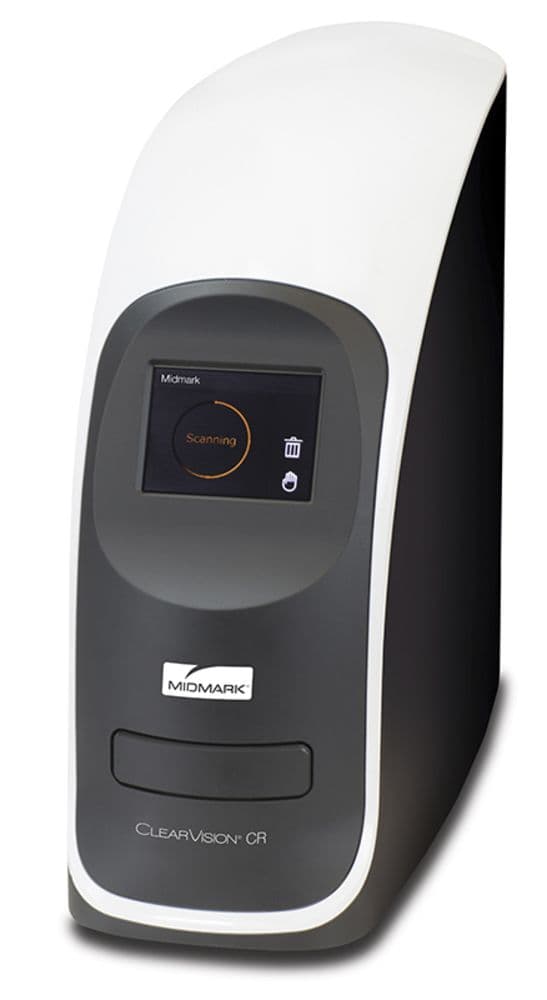

Midmark ClearVision® CR Digital Radiography Reader

With its small footprint and elegant design, the ClearVision® CR Digital Reader fits seamlessly into even the smallest dental offices and exam rooms. Familiar workflow, and accessories comparable to those for film, allow for seamless integration into your practice.
Let Us Show How It Works
Schedule a Demo
Financing Options Available
Request Financing

Description

EFFORTLESS OPERATION

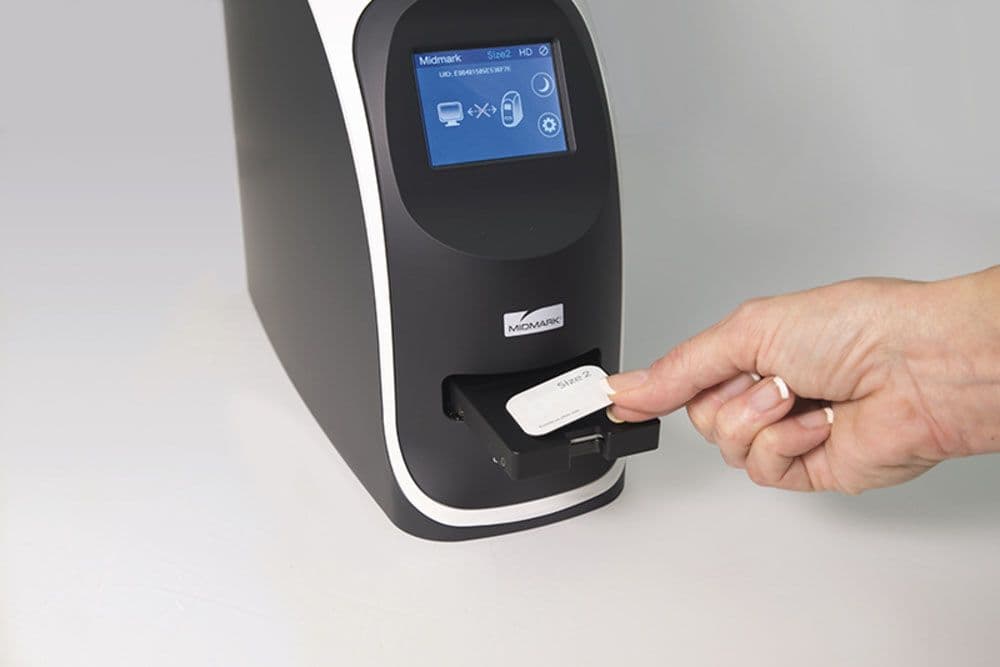

The automated, magnetized feeding tray offers push-and-go functionality, making it effortless to operate and an ideal imaging solution for computed radiography.



LCD DISPLAY

A clear LCD screen intuitively guides users through unit operation and offers image previews. Provides device activity status and auto-sleep/auto-start options to conserve energy.



THIN, FLEXIBLE AND REUSABLE IMAGING PLATES

A full range of reusable plates, including size 4C, are standard. Imaging plates offer 100% active area.

Specifications

Specifications

  • Selectable pixel size: High 35μm - Standard 64μm
  • Sampling pixel pitch (35μm): 14.3 lp/mm
  • Readout time: 4.1 - 7.2 sec
  • Resolution: Data Capture 16-bits per pixel, 65,000 graytones
  • Eraser: Embedded
  • Dimensions 10.4" (H) x 4.7" (W) x 12.5" (D)/265 (H) x 120 (W) x 318 (D) mm
  • Weight: 10.4 lb (4.7 kg)
  • System configuration: Tabletop
  • Interface: USB 2.0 High speed (480 Mbps)
  • Computer workstation minimum requirements (CR Dental Reader Only): 2GB RAM Windows® 7 & Windows® 8 (32-bit & 64-bit)
  • 2.0 High Speed USB
  • Please refer to Progeny® Imaging Computer Requirements for additional requirements relating to imaging software.
  • Power Requirements: 100 ~ 240V/50 ~ 60Hz, 30W - UPS required
