Smart Plus
Vatech

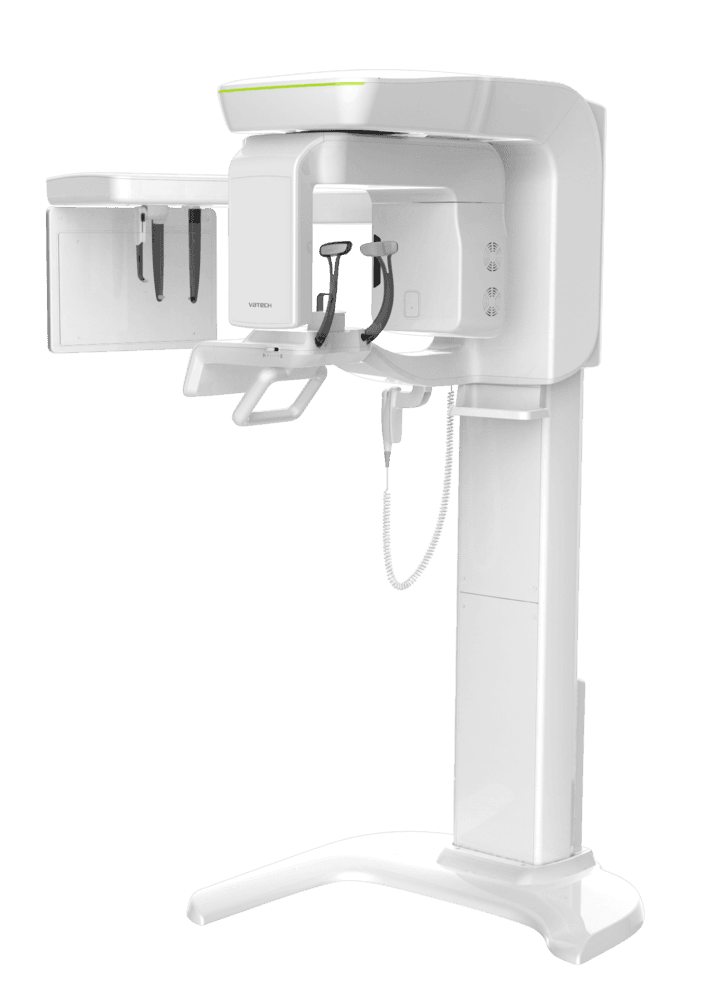

Vatech Smart Plus

Smart Plus gives user a CT and Auto Pano image with a single scan. The user may view 2D and 3D images together with a single software. Also, the innovative FOC of the Smart Plus provides an arch-shaped volume, which shows a wider view of dentition compared to other devices with the same FOV.
Request Quote
Financing Options Available
Request Financing

Description

Smart Plus gives user a CT and Auto Pano image with a single scan. The user may view 2D and 3D images together with a single software. Also, the innovative FOC of the Smart Plus provides an arch-shaped volume, which shows a wider view of dentition compared to other devices with the same FOV. The arch-shaped volume of the Smart Plus provides the clinician with all the necessary dentition for a through diagnosis.

Features
A9
Best for: Implant planning; capturing both maxillary and mandibular arches in a single scan
Smart Plus
Best for: Comprehensive dentition coverage using arch-shaped FOV; metal artifact reduction
Green X
Best for: Dedicated endodontic imaging; high-resolution single-tooth diagnosis; complex implant planning
Green X 21
Best for: Multiple specialties including general dentistry, implantology, oral surgery, orthodontics, and endodontics
Technical Specifications
CT Field of View (FOV) Size Ø8 x 8 cm Ø5 x 5 to 10 x 8.5 cm (Anatomical 12 x 9 cm) Ø4 x 4 to 18 x 15 cm Ø4 x 4 to 21 x 19 cm
Focal Spot 0.5 mm (IEC 60336) 0.5 mm (IEC 60336) 0.5 mm (IEC 60336) 0.5 mm (IEC 60336)
3D Voxel Size 0.2 / 0.3 mm 0.08 to 0.3 mm 0.05 to 0.3 mm 0.05 to 0.3 mm
Gray Scale 14 bit 14 bit 14 bit 16 bit
CT Scan Time 18s 18s 2.9s (Ø5 x 5 - 8 x 8) / 9s (Ø12 x 9 - 18 x 15) / 18s (Ø4 x 4) 7s (Ø5 x 5 - 12 x 9) / 15.2s (Ø18 x 15, 21 x 19) / 18s (Ø4 x 4)
Pano Scan Time 11.9 / 14.1s 14.1 / 7.0s 4.0 / 14.1s 4.0 / 14.1s
X-Ray Generator 60-99 kV, 4-10 mA 60-99 kVp, 4-16 mA 60-99 kVp, 4-16 mA 60-99 kVp, 4-16 mA
Imaging Technologies
CBCT ✓ ✓ ✓ ✓
Pano ✓ ✓ ✓ ✓
Model Scan ✕ ✓ ✓ ✓
Magic Pan Technology ✓ ✕ ✕ ✕
Compressed Sensing Technology ✕ ✓ ✓ ✕
Arch-Shaped FOV ✕ ✓ ✕ ✕
Multi FOV Selection ✕ ✓ ✓ ✓
Clever One Software Compatibility
Integrates panoramic, CBCT, intraoral, facial, and STL scan data within a single viewer using AI technology
 ✓ ✓ ✓ ✓
Additional Features
Cephalometric Arm Add-On (Optional) ✓ ✓ ✓ ✓
Ceph Scan Time (If Included) 1.9s / 3.9s 1.9s / 3.9s 1.9s / 4.9s 0.9s
AI-Powered Diagnostics (through Clever One Software)
Ex: AI lesion/pathology detection; root canal analysis tools; 3D segmentation; implant and endo simulations; Cloud integration
 ✓ ✓ ✓ ✓

Specifications

FUNCTION

FOCAL SPOT SIZE

CT FOV SIZE

VOXEL SIZE

SCAN TIME

GRAY SCALE

TUBE VOLTAGE / CURRENT

WEIGHT

DIMENSIONS

CT + Pano + Ceph + Model Scan

0.5 mm (IEC60336)

16x9 cm : Multi (5x5 / 8x9 / 12x9 / 16x9 cm)
18x10 cm : Multi (5x5 / 8x9 / 13x10 / 18x10cm)

5x5 : 0.08 mm / 0.12 mm
8x9 : 0.12 mm / 0.2 mm
12x9 :  13x10 : 0.2 mm / 0.3 mm
 16x9 : 0.2 mm / 0.3 mm
18x10 : 0.2 mm / 0.3 mm

PANO 14.1 sec / 7.0 sec
CEPH 3.9 sec / 1.9 sec
CBCT 9.0 sec (12x9 - 18x10) / 4.9 sec (5x5 - 8x9)

14 Bit

60 - 99 kVp / 4 - 16 mA

Without CEPH unit : 295.4 lbs - without the Base / 412.3 lbs - with the Base

Without CEPH unit : 44.29" (L) x 58.61" (W) x 91.94" (H)

With CEPH unit : 350.5 lbs - without the Base / 467.4 lbs - with the Base

With CEPH unit : 73.78" (L) x 58.61" (W) x 91.94" (H)
