Request a Quote

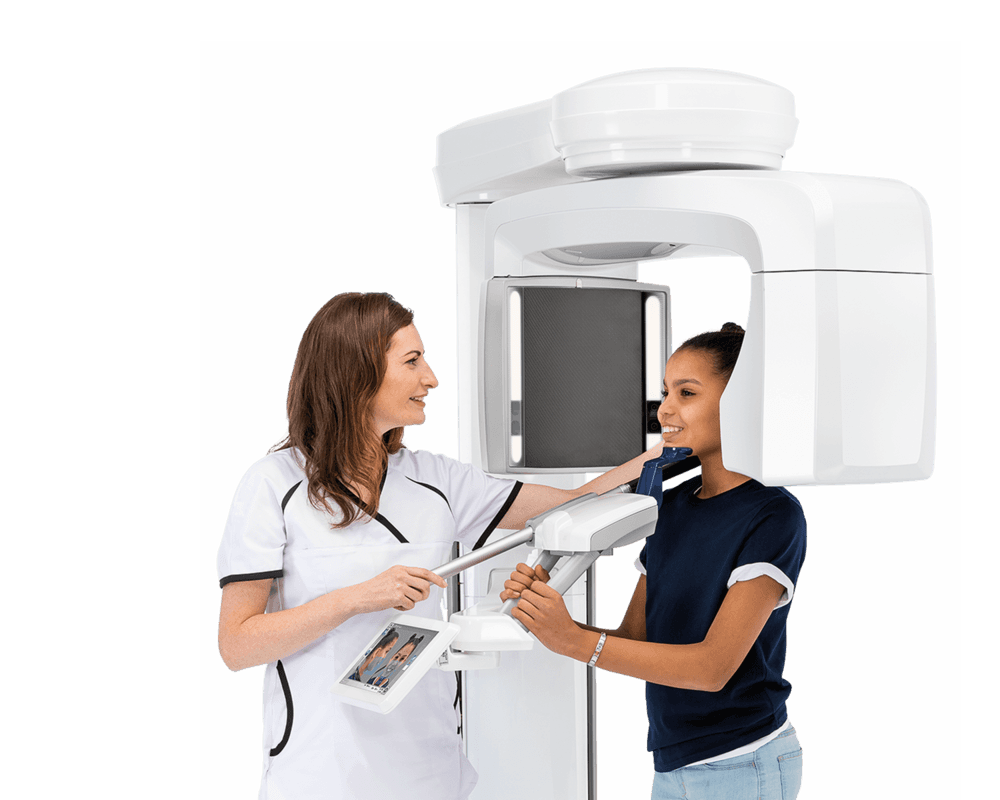

Blending patient comfort with unparalleled performance, the Planmeca Viso Series CBCT unit is engineered to offer 2D, cephalostat and 3D imaging capabilities.

Financing Opportunities

  • Finance Calculator

    Click to Request Product Financing Options

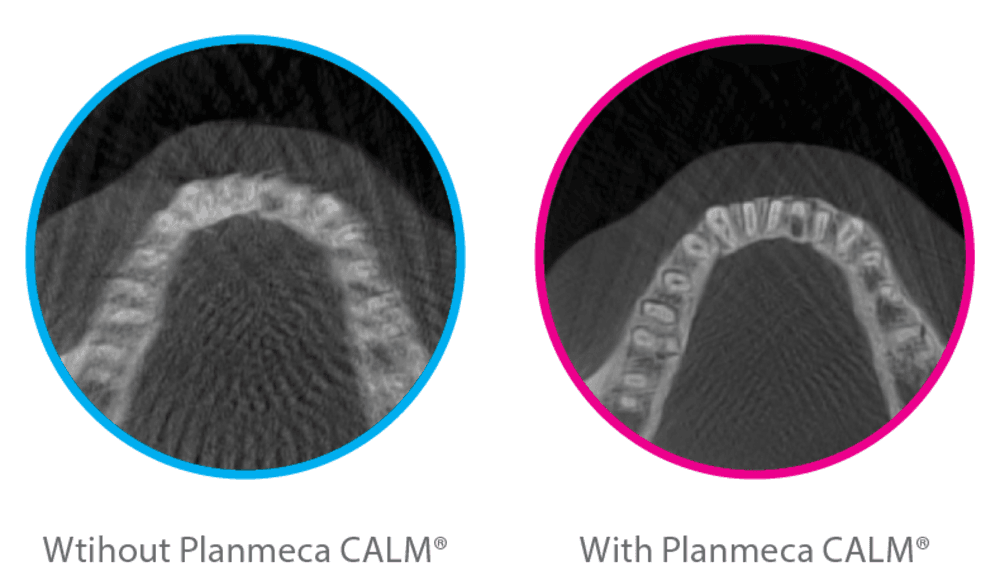

Designed to deliver exceptional 2D, 3D and optional one-shot cephalostat image quality, the Planmeca Viso Series CBCT unit offers the versatility needed for a wide range of treatment options. Featuring Planmeca CALM® technology that eliminates the effects of patient movement, along with occipital head support for more comfortable patient positioning, the Planmeca Viso is ideal for anxiety-prone patients and for those who have trouble remaining completely still. A perfect blend of patient comfort and unparalleled performance, this versatile CBCT unit ensures the ultimate in diagnostic flexibility — all in one groundbreaking device.

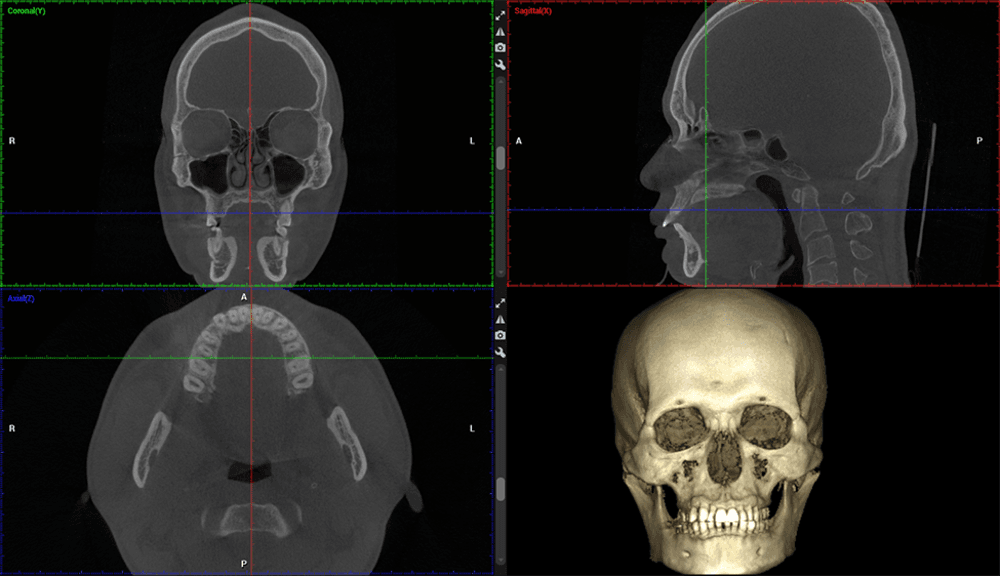

  • Multi-use. Captures a range of 3D images — from a single tooth to a full skull — making it suitable for specialties ranging from general practice to endodontics
  • Intuitive. Equipped with four built-in cameras and LED light strips for live patient positioning and pinpointing the exact region of interest
  • Precise. Features a 120 kV tube voltage option that reduces 3D imaging artifacts, particularly on challenging imaging cases

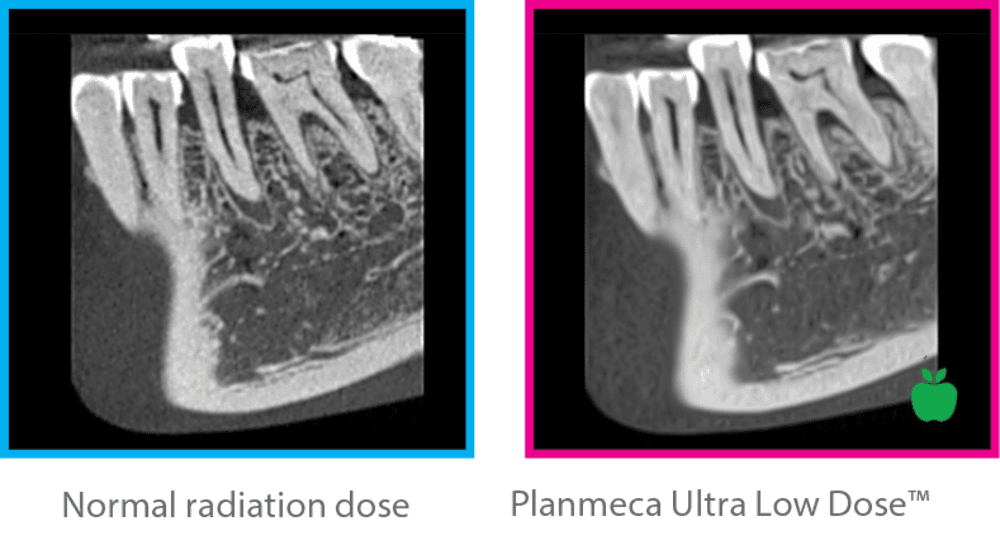

  • Proactive. Utilizes Planmeca Ultra Low Dose™ imaging technology to capture high-quality 3D images at significantly lower effective patient doses — all without sacrificing image quality
  • Adaptable. Offers flexible field of view options, including ø3x3 cm to ø20x17 cm (Viso G5) and ø3x3 cm to ø30x30 cm (Viso G7)

FREQUENTLY ASKED QUESTIONS

1. Is the Planmeca Viso Series CBCT unit suitable for endodontics?

Yes. The Planmeca Viso Series CBCT unit is equipped with a 3D endodontic imaging mode that reduces the effects of noise — an issue typically associated with high resolution image capture. By utilizing this 3D imaging mode, clinicians can experience clear and smooth CBCT scans, making it particularly helpful for endodontics.

Note: This 3D imaging mode is also available for existing units with a software update.

2. What is the field of view positioning feature?

Patient positioning can be performed directly from the Planmeca Viso’s control panel using the CBCT unit’s integrated cameras and live patient view, allowing for exact and flexible field of view adjustments.

3. Is the cephalostat imaging an optional add-on?

Yes. The Planmeca Viso Series CBCT unit can be equipped with the Planmeca ProCeph™ one-shot cephalostat as an optional add-on. It offers short exposure time and a wide range of image sizes (up to ø30x25 cm with magnification), delivering low patient doses with minimal motion artifacts.

Anode voltage 60–120 kV

Anode current 1–16 mA

Focal spot 0.5 mm, fixed anode

Image detector Flat panel

Image acquisition 200 / 360 degree rotation

Scan time 1–36 s

Typical reconstruction time 2–55 s



Physcial Space Requirement

Width 155 cm (61 in.)

Depth 152 cm (60 in.),

Height* 240 cm (95 in.)

Weight 165 kg (lbs 364 )



With cephalostat:

Width 216 cm (85 in.)

Depth 154 cm (61 in.)

Height*180 cm (95 in.)

Weight 180 kg (lbs 397)

*The maximum height of the unit can be adjusted for offices with limited ceiling space.

Planmeca Viso® G7

Planmeca Viso® G5

Maximum volume with a single scan:

Ø30 x 20

Maximum volume with a single scan:

Ø20 x 10

Maximum volume with multiple vertical scans:

Ø30 x 30

Maximum volume with multiple vertical scans:

Ø20 x 17

Dental Programs

Tooth

Ø3 x 3 – Ø6 x 6

Teeth

Ø7 x 3 – Ø12 x 10

Jaw

Ø13 x 3 – Ø17 x 17

Face

Ø14 x 12 – Ø30 x 20

Skull

Ø20 x 22 – Ø30 x 30



Dental Programs

Tooth

Ø3 x 3 – Ø6 x 6

Teeth

Ø7 x 3 – Ø9 x 9

Jaw

Ø10 x 3 – Ø20 x 10

Face

Ø14 x 13 – Ø20 x 17



Ear, Nose and Throat programs

Nose

Ø7 x 5 – 12 x 10

Sinus

Ø10 x 10 – 17 x 20

Middle ear

Ø3 x 3 – 6 x 6

Temporal bone

Ø7 x 5 – 12 x 10

Airways

Ø8 x 8 – 10 x 14

Vertebrae

Ø8 x 8 – 10 x 14



Ear, Nose and Throat programs

Nose

Ø7 x 5 – 9 x 9

Sinus

Ø10 x 11 – 20 x 150

Middle ear

Ø3 x 3 – 6 x 6

Temporal bone

Ø7 x 5 – 9 x 9

Airways

Ø9 x 8 – 11 x 10

Vertebrae

Ø9 x 8 – 11 x 10
