Vatech Green X

Financing Options Available

Description

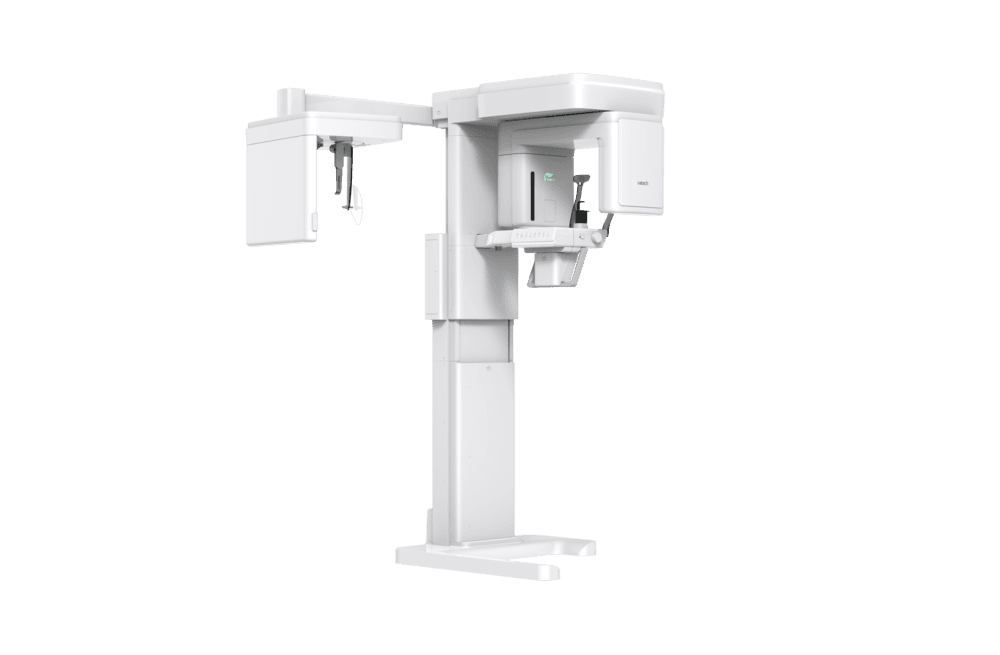

The Green X is an advanced digital X-ray imaging system that provides high quality images with lower radiation. The Green X offers a range of selectable field of view. The multi FOV option allows users to select the optimum FOV mode while minimizing exposure to areas that are not in the region of interest. With its 4cm x 4cm volume and 50-micron voxel size, the Endo more will optimize treatment of highly-focused regions of interest. It is ideal for endodontic use because the dentist can achieve an extraordinary image in a high-resolution voxel size.

Specifications

FUNCTION	FOCAL SPOT SIZE	CT FOV SIZE	VOXEL SIZE	SCAN TIME	GRAY SCALE	TUBE VOLTAGE / CURRENT	WEIGHT	DIMENSIONS
CT + Pano + Ceph + Model Scan	0.5 mm (IEC 60336)	4x4, 5x5, 8x5, 8x8, 12x9, 16x11, 18x15 cm	4x4 : 0.05 mm 5x5 : 0.08 mm / 0.12 mm 8x5 / 8x8 : 0.12 mm / 0.2 mm 12x9 / 16x9 / 16x11 / 18x15 : 0.2 mm / 0.3 mm	PANO 4.0 sec / 14.1 sec CEPH 1.9 sec / 4.9 sec CBCT 2.9 sec (5x5-8x8) / 9.0 sec (12x9-18x15) / 18.0 sec (4x4)	14 Bit	60 - 99 kVp / 4 - 16 mA	Without CEPH unit: 365.74 lbs - without Base / 487.00 lbs - with Base	Without CEPH unit: 42.716” (L) x 52.893” (W) x 91.157” (H) - without Base 42.716” (L) x 52.893” (W) x 92.338” (H) - with Base

							With CEPH unit: 420.86 lbs - without Base / 542.11 lbs - with Base	With CEPH unit: 75.019” (L) x 54.129” (W) x 91.157” (H) - without Base 75.019” (L) x 54.129” (W) x 92.338” (H) - with Base
