The ProVecta S-Pan Ceph elevates your extraoral imaging capabilities with perfected extraoral imaging.

ProVecta® X-Ray Systems from Air Techniques provide the perfect combination of image quality, efficiency and design. Our revolutionary technology delivers unmatched sharpness and clarity with unmatched ease.

Financing Opportunities

  • Finance Calculator

    Click to Request Product Financing Options

The ProVecta S-Pan Ceph elevates your extraoral imaging capabilities with perfected extraoral imaging.

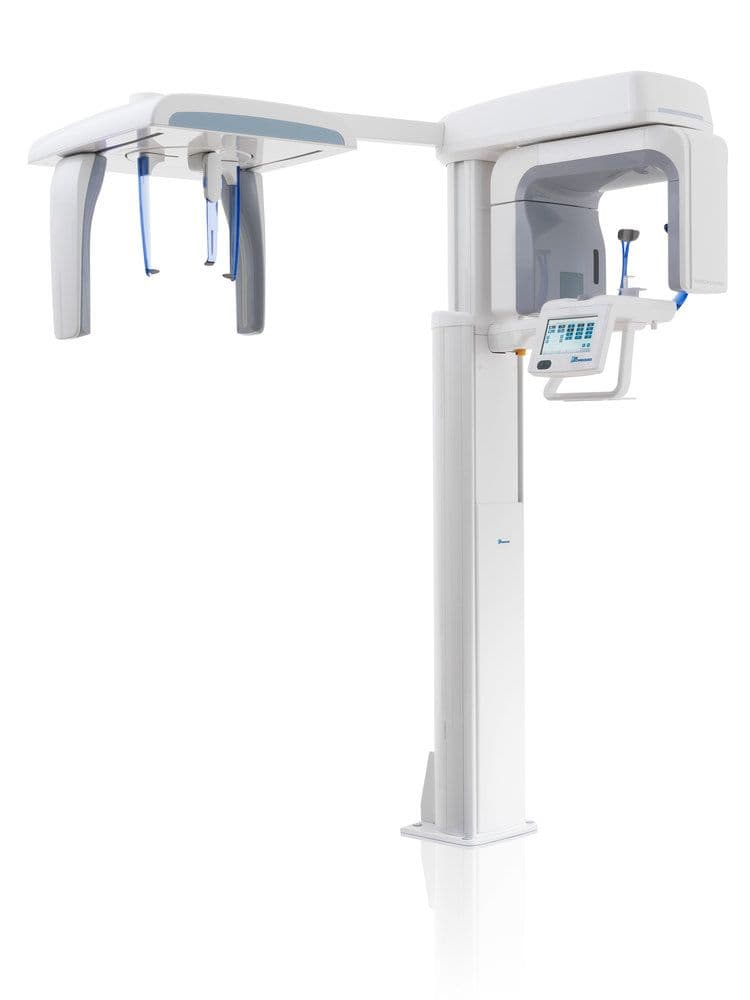

The 2D panoramic and cephalometric X-ray system offers ease of handling and optimal workflow, supported by an innovative 7” touch display. The system also comes with 2 high-end, modern CsI sensors that eliminate the tedious switching between panoramic X-ray and the cephalometric arm, reducing the risk of damaging the sensors or needing costly repairs from usage over time.

Take advantage of the increased deduction limit for Section 179. You may deduct the full cost of dental equipment from your 2016 taxes up to $500,000. Please consult with your tax advisor for further information.

LOW X-RAY DOSE – HIGH EFFICIENCY

  • Very fast scan in 4.1 seconds (lat. head)
  • Exceptional image quality
  • Low radiation dose
  • No sensor change from pan to ceph, 2 high-end CsI sensors are integrated
  • ProVecta S-Pan Ceph owes its excellent imaging performance to two innovative technologies: the high-end CsI sensor and the S-Pan technology, only available from Air Techniques
  • The modern and high-end CsI sensor technology enables better image quality and hence, significantly easier diagnosis

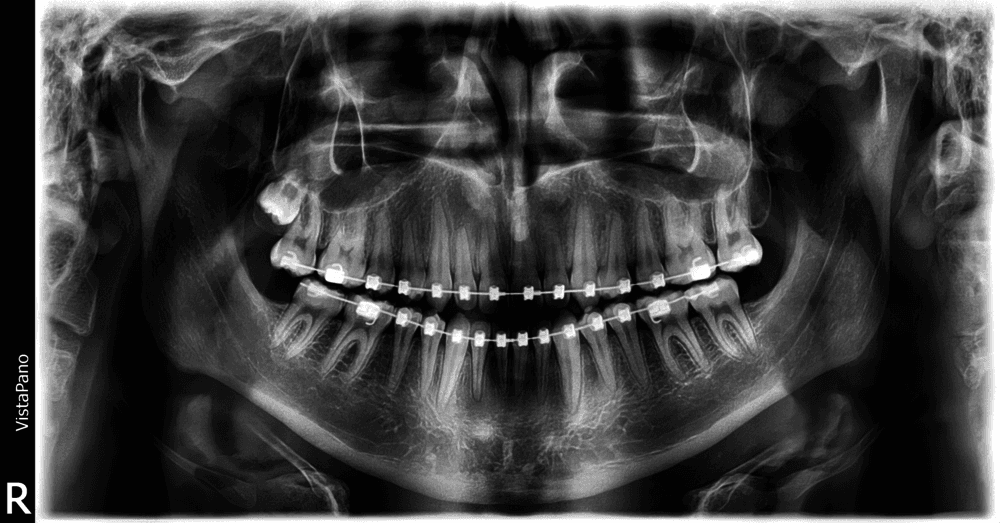

  • S-Pan technology uses a unique algorithm to compile 20 separate images into one pin sharp panoramic image at any spatial position of the tooth and jaw
  • From a single exposure, the system acquires 20 layers and slices them into 20,000 fragments, compiling them into the clearest, best image atomically

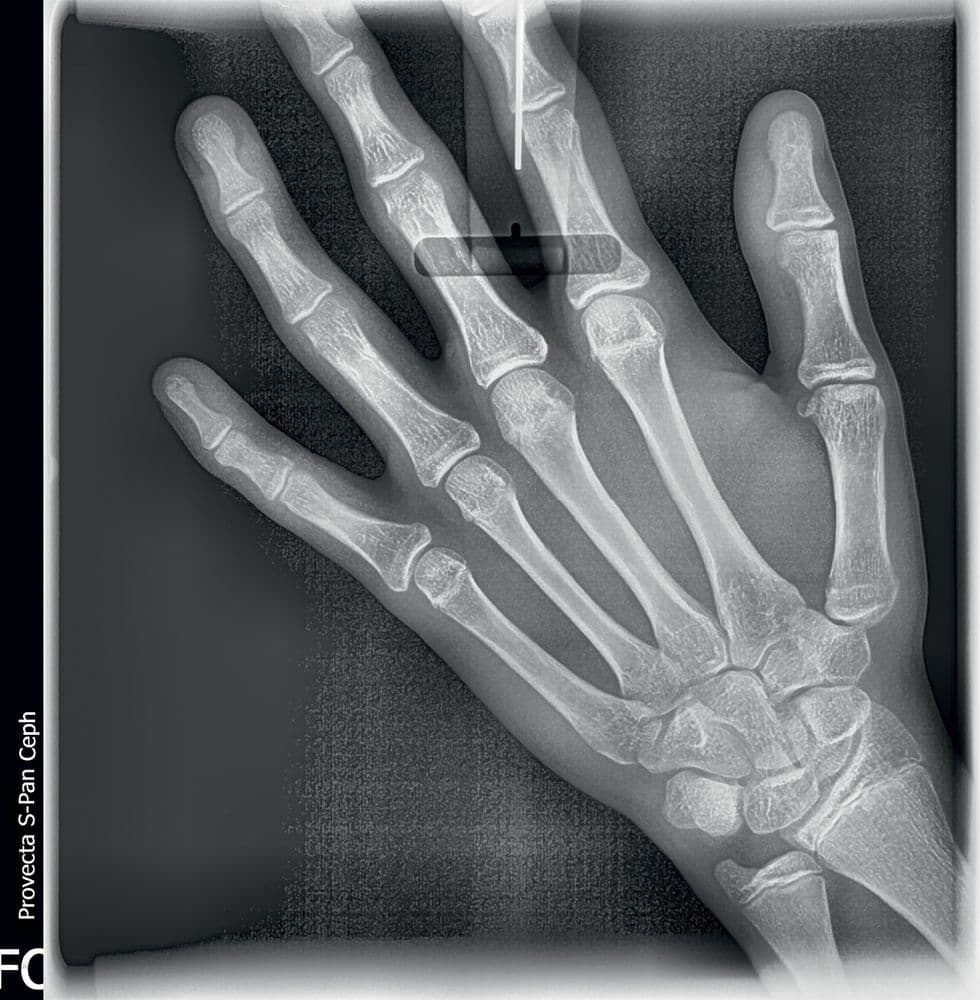

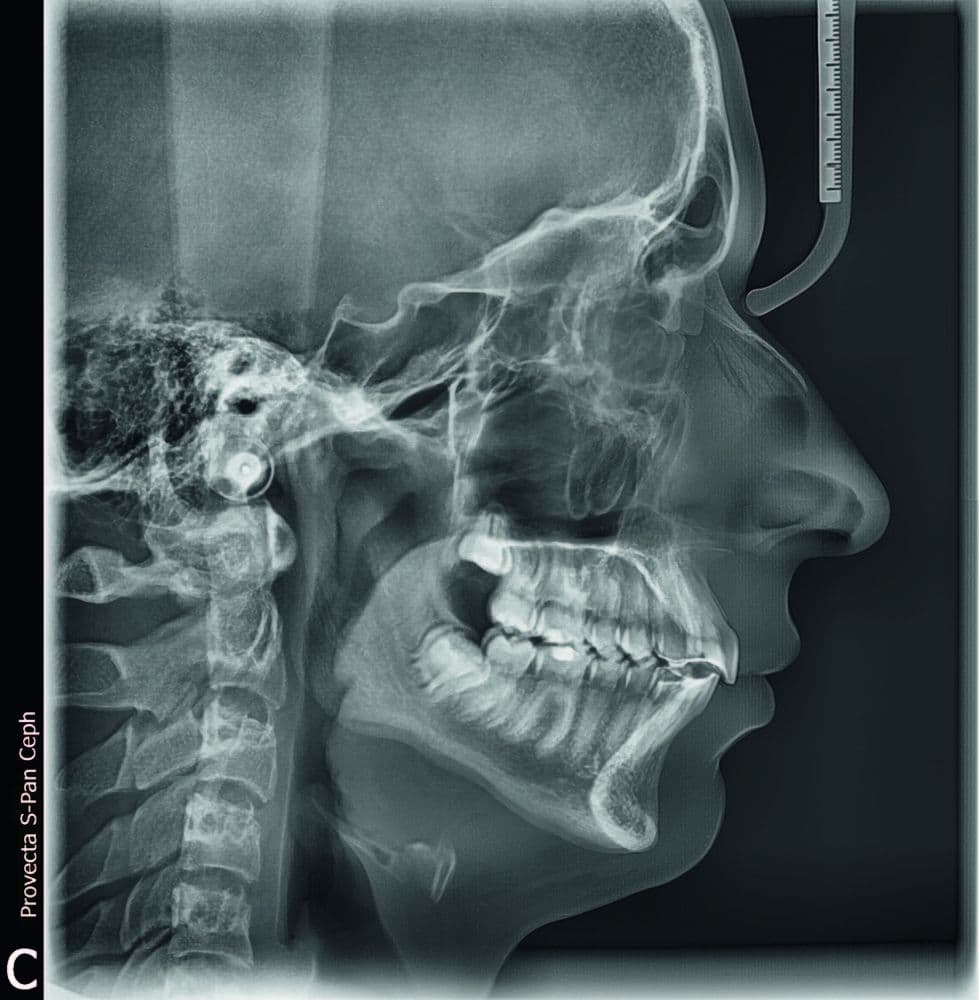

  • There are 17 panoramic programs + 5 programs for cephalometric X-ray recordings: Lateral head L, PA head, SMV (submentovertex), Waters view, and Hand

TAKE ADVANTAGE OF THE INCREASED DEDUCTION LIMIT FOR SECTION 179

You may deduct the full cost of dental equipment from your 2016 taxes up to $500,000. Please consult with your tax advisor for further information.


SPECIFICATIONS

Part Number  A7550
Maximum height  90"
Weight without pedestal  284 lbs
Weight with pedestal  394 lbs
Height adjustment range  28"
Dimensions including rotation (WxDxH)  77" x 48"- 51" x 90"
Installaton  Wall Mount (Pedestal  Optional)
Mains voltage  208-240 VAC
Frequency  50/60 Hz
Rated power  2.2 kVA
Magnification factor  1.3 (1.14 for Ceph)
X-ray HV Generator
Tube voltage and current  60-80 kV, 4-16 mA
X-ray Tub
Focal spot size  0.5 mm (IEC60336)
Total filtration  2.8 mm AL
Image Detector
Model  CsI Sensor
Pixel Size  100 µm
 Active sensor surface  6x150.4 mm (Pan), 200 fps (Ceph)
 Frame Rate  300 fps (Pan), 200 fps (Ceph)

Package Includes: Complete Panoramic Xray with Ceph arm and installation requirements. Optional floor mount sold separately.
