ProVecta S-Pan Panoramic X-Ray

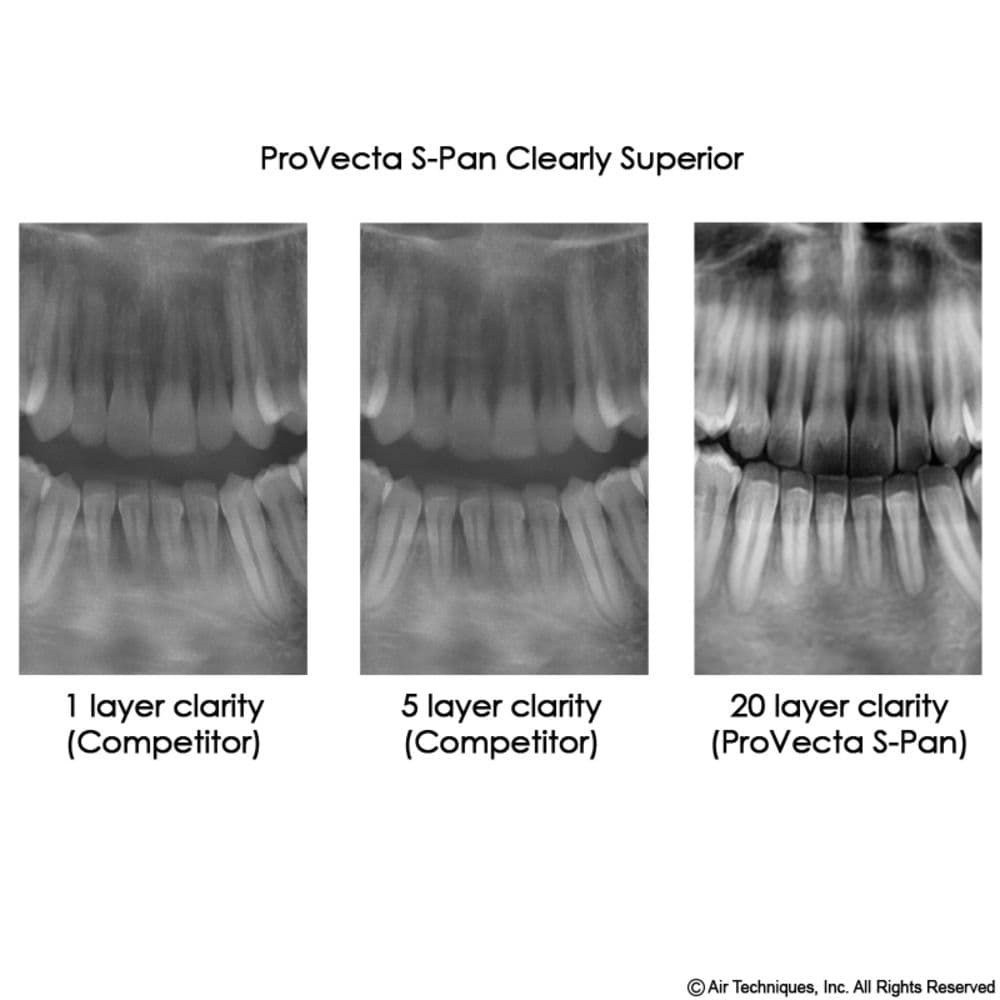

ProVecta S-Span produces an image for adults within only 7 seconds, thereby reducing radiation dose. From the single exposure, only S-Pan acquires 20 layers of images and slices them into 20,000 fragments. The best are selected and compiled to generate a single, exceptionally sharp panoramic image--automatically!

Financing Opportunities

  • Finance Calculator

    Click to Request Product Financing Options

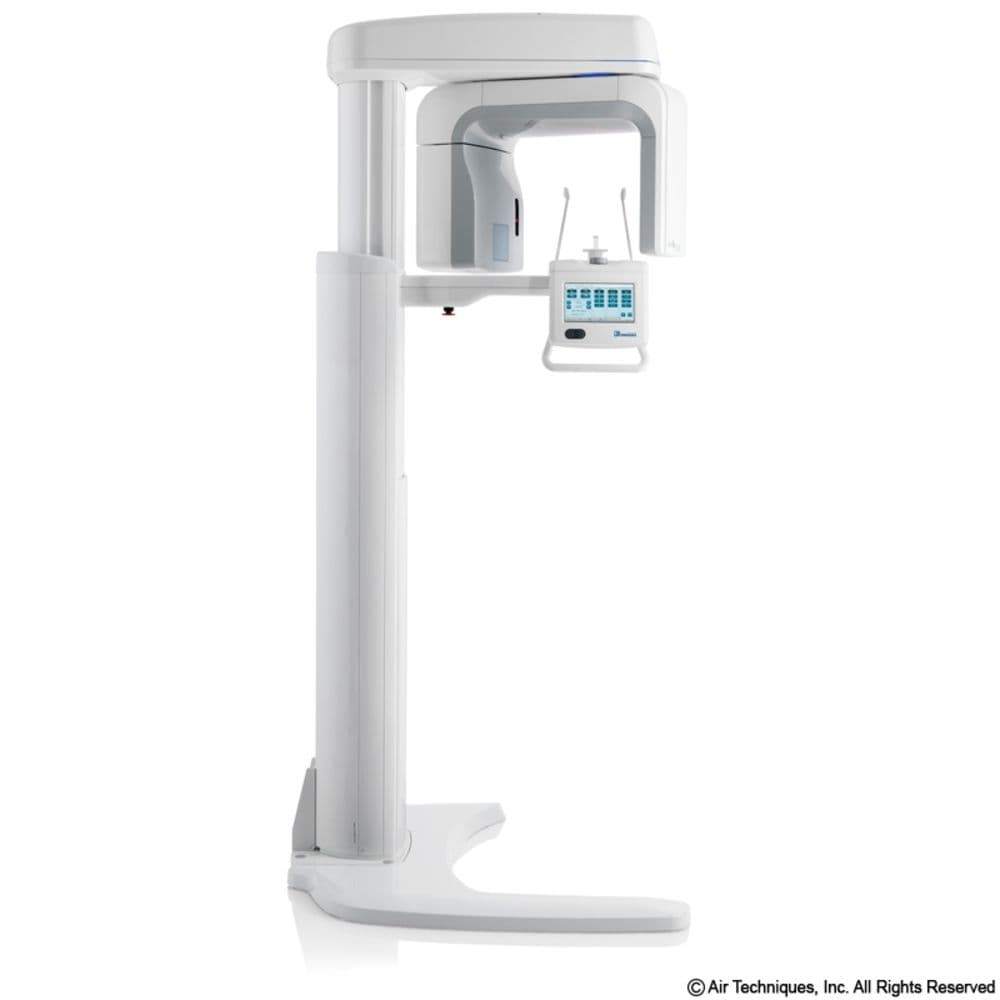

The ProVecta S-Pan from Air Techniques sets a new standard in sharpness of extraoral imaging.

This 2D panoramic system offers ease of handling and optimal workflow, supported by an innovative 7” touch display. The ProVecta S-Pan owes its excellent imaging performance to two innovative technologies. First, the modern CsI sensor technology which enables better image quality and, hence, significantly easier diagnosis. Second, the S-Pan technology which considers the individual patient’s anatomy and several accordingly aligned layers to create a pin sharp panoramic image …

HIGH-SPEED SCANNING WITH LOW X-RAY DOSE

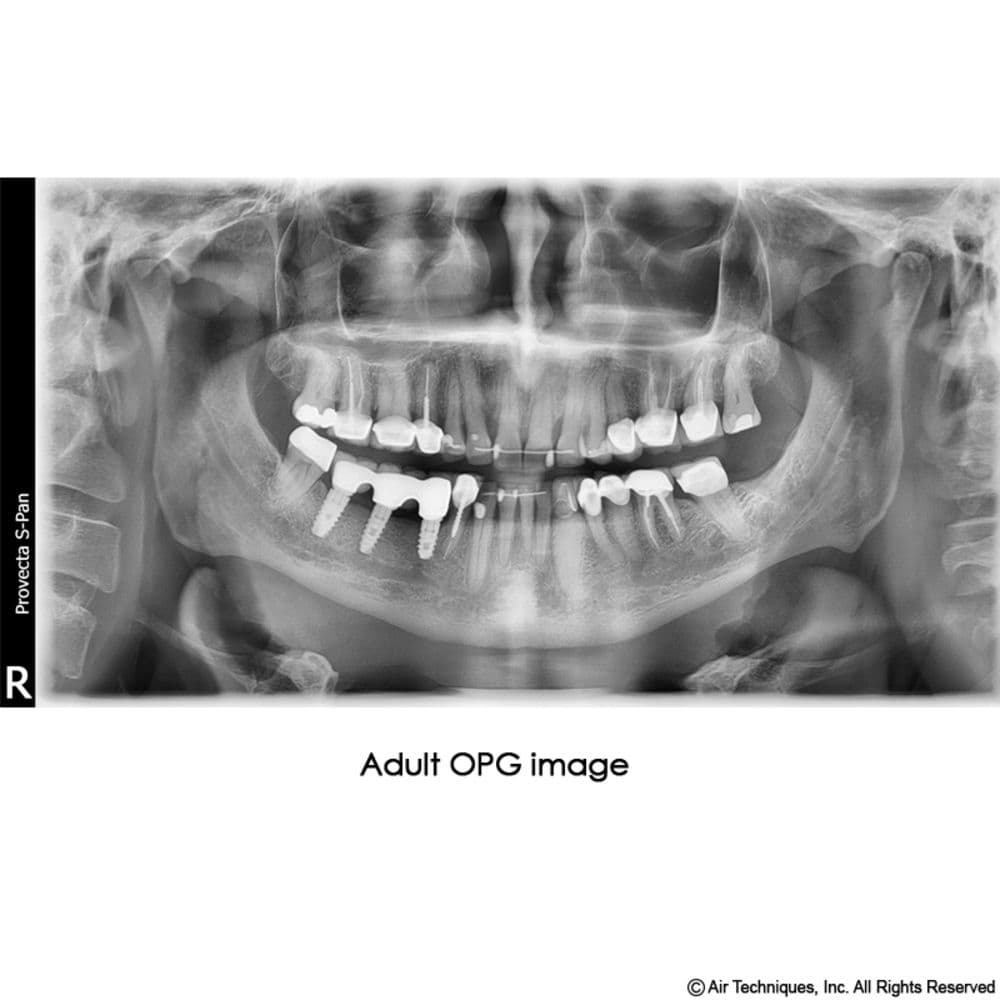

  • Extremely fast: OPG image from 7 seconds – with especially low dose.
  • Important diagnostic information is sharply displayed, including the mandibular canal and bone structure

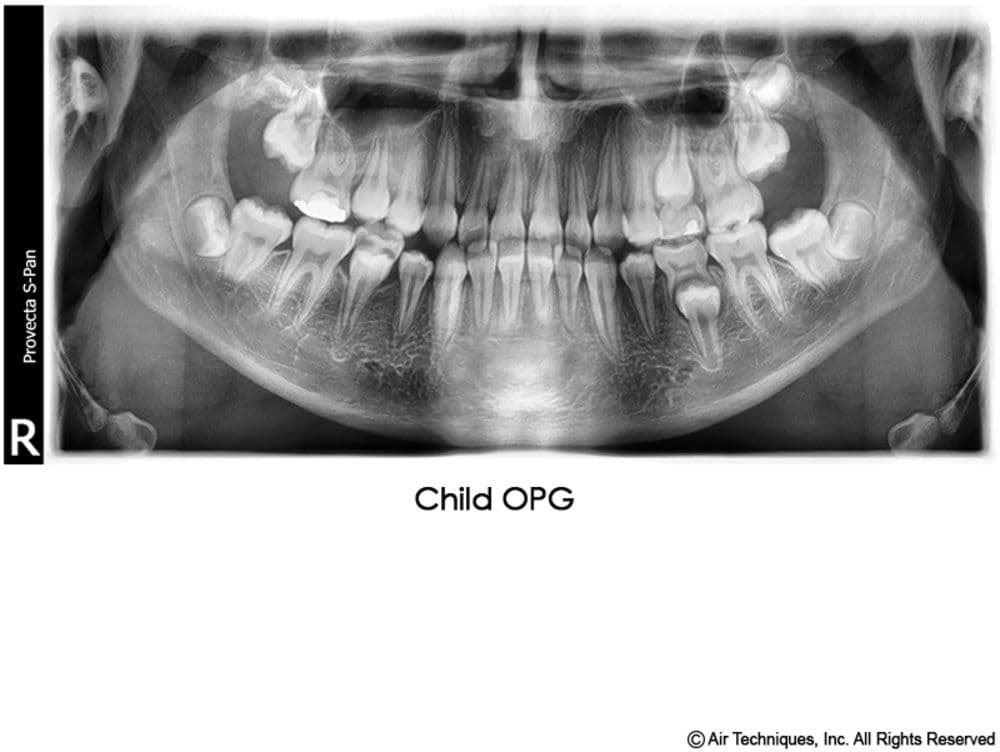

  • The child modes reduce the dose by 45-56% and shorten the scan time, without loss of diagnostic information
  • Stabilizing handles compensate for patient movement
  • Audio announcements for staff and patients
  • Long vertical path accommodates tall patients and wheelchair users
  • TWAIN-compliant imaging software



KEYS TO PANORAMIC PERFECTION

  • S-Pan technology for simpler diagnosis and unmatched image quality
  • CsI sensor for better image quality and reduced radiation
  • Automatically selects the sharpest areas, resulting in sharper images and faster, easier diagnosis

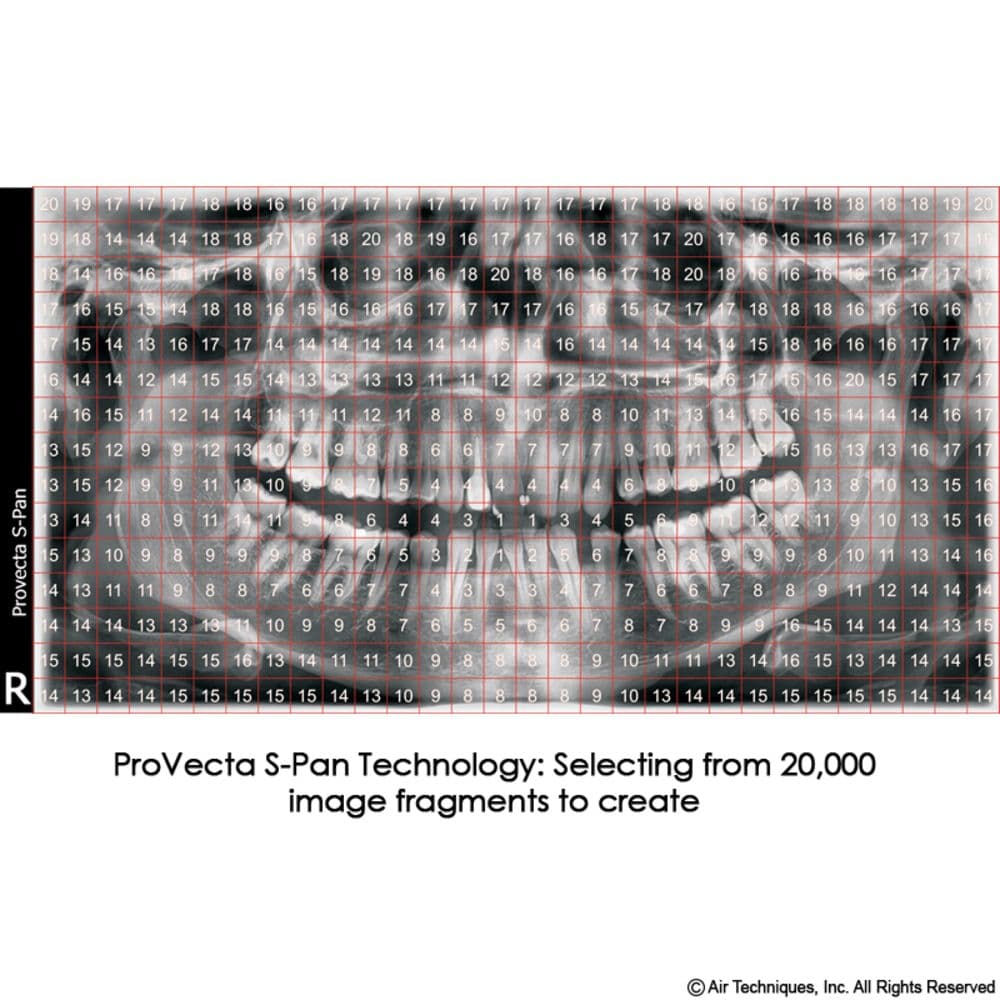

  • Selects from 20,000 image fragments to create one exceptional image

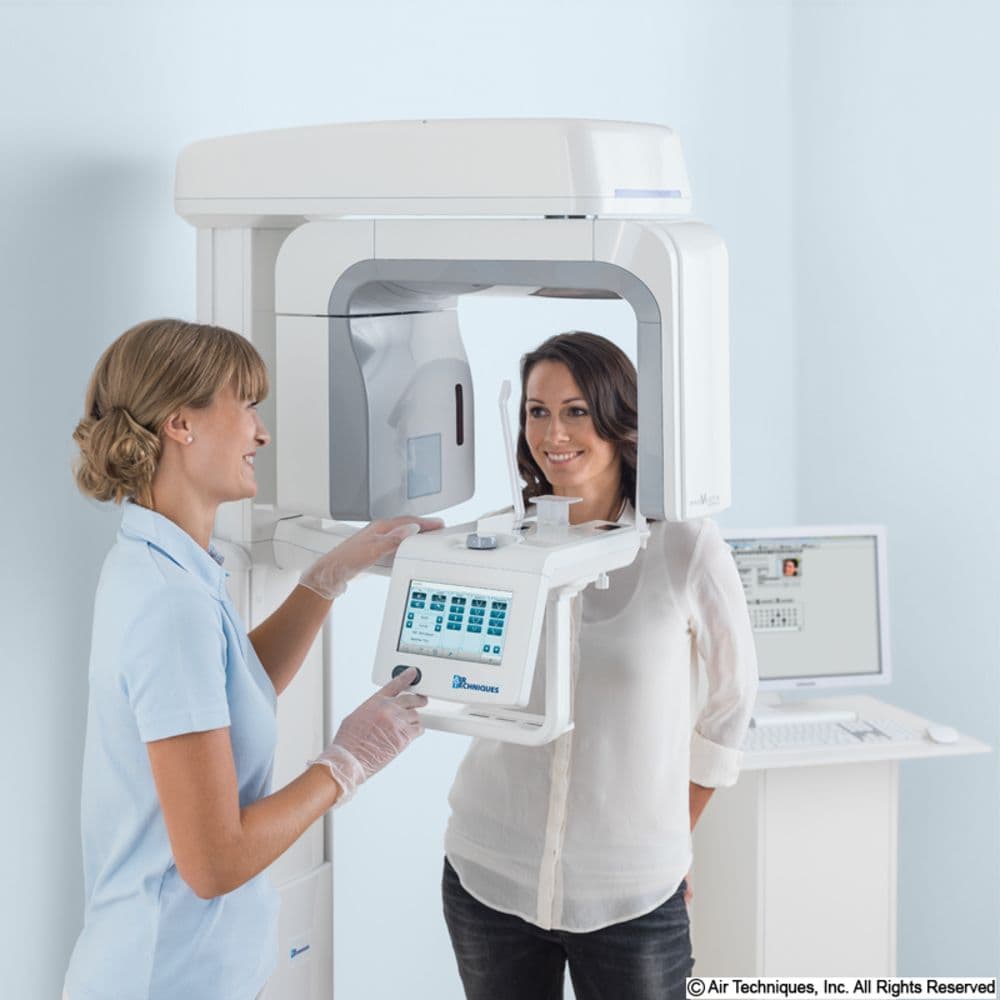

  • 7” touch display for intuitive handling – Easy face-to-face positioning, 3 positioning lasers
  • Slim design, small footprint

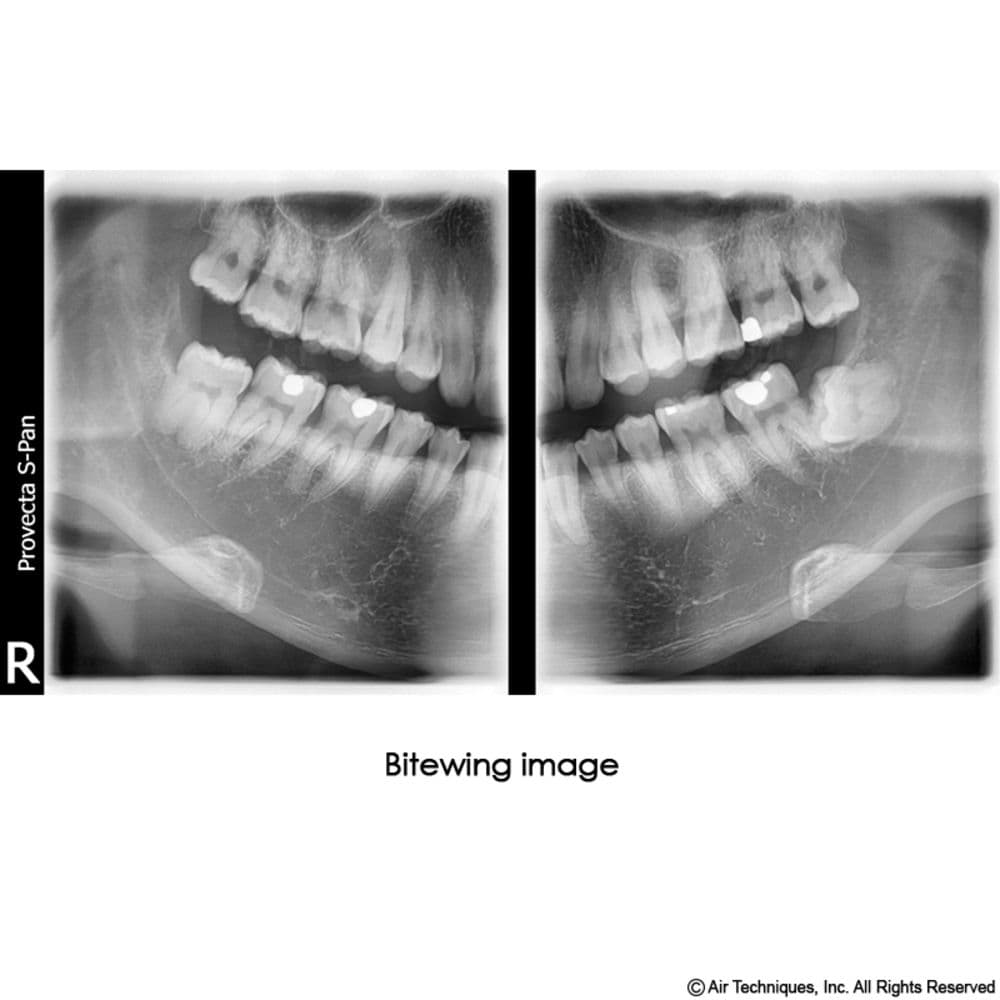

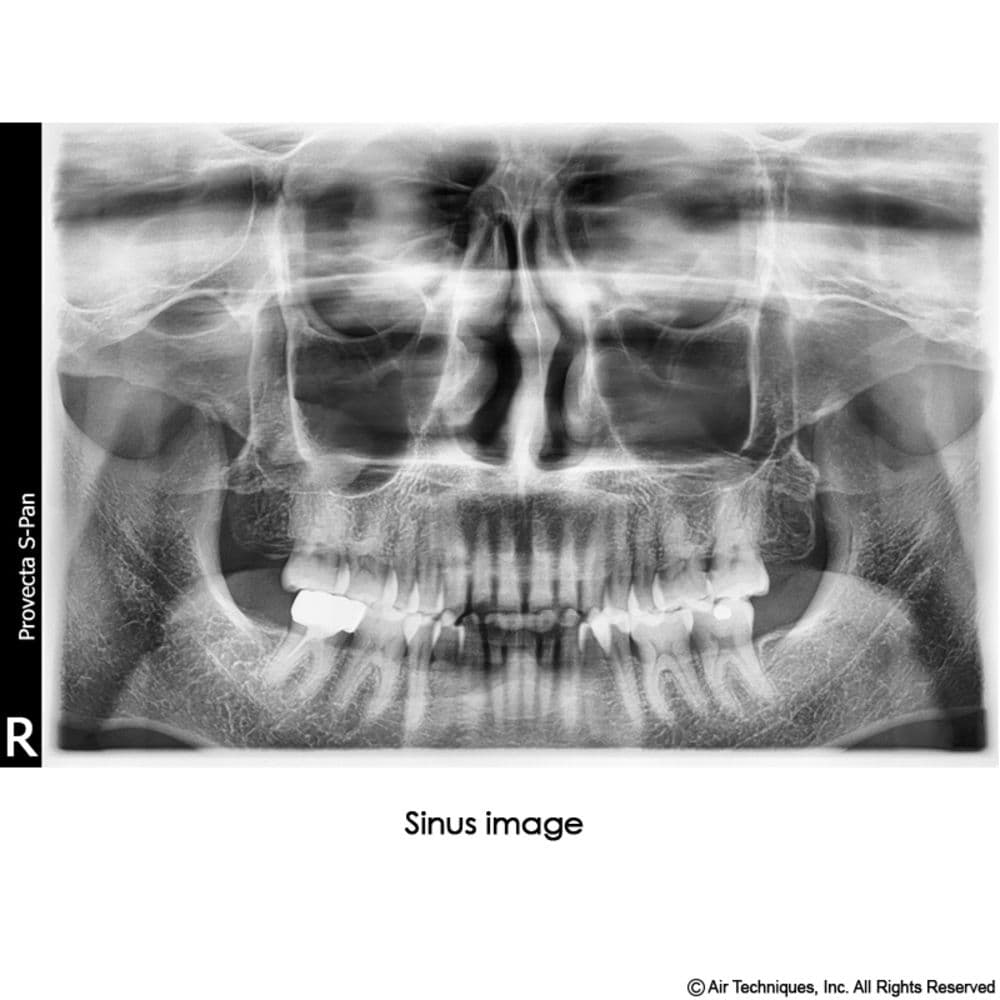

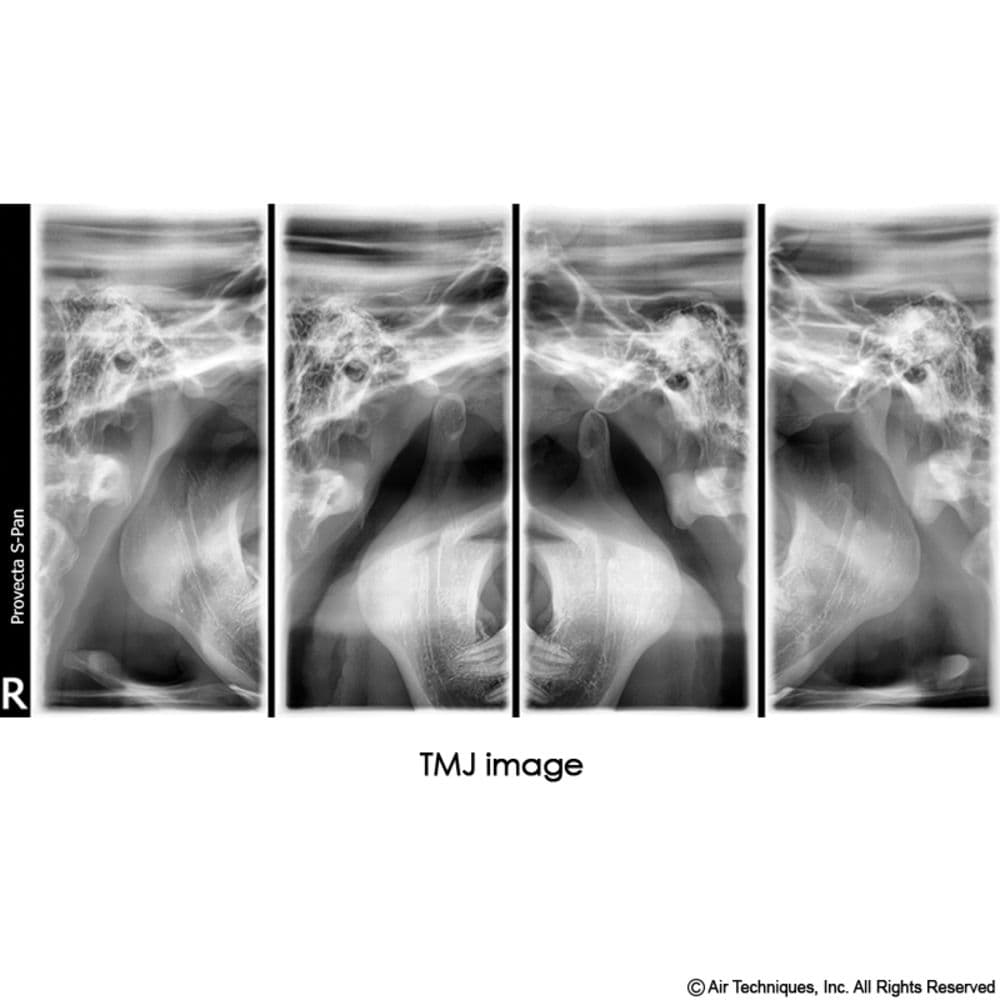

  • All 17 X-ray programs included for unmatched ease of diagnosis: 1 Standard Panoramic; 3 Half-page: right, left and front; 4 Child modes of exposure with smaller exposure area; 5 Orthogonal; 2 TMJ for functional diagnosis; 2 Sinus for paranasal sinuses
Part Number  A7350
Maximum height  90"
Weight without pedestal  231 lbs
Weight with pedestal  342 lbs
Height adjustment range  28"
Dimensions including rotation (WxDxH)  39" x 48"- 51" x 90"
Installaton  Wall Mount (Pedestal  Optional)
Mains voltage  208-240 VAC
Frequency  50/60 Hz
Rated power  2.2 kVA
Magnification factor  1.3
X-ray HV Generator
Tube voltage and current  60-80 kV, 4-16 mA
X-ray Tub
Focal spot size  0.5 mm (IEC60336)
Total filtration  2.8 mm AL
Image Detector
Model  CsI Sensor
Pixel Size  100 µm
 Active sensor surface  6x150.4 mm
 Frame Rate  300 fps

System Requirements:

  • TWAIN automatically optimizes and saves all images and makes them available at all workstations
  • Makes it possible to connect to third-party software with ImageBridge and TWAIN


The minimum computer system requirements necessary to operate the ProVecta S-Pan are listed below:

  • CPU/Speed: 2.0 GHz Intel Core i3 (or equivalent AMD processor) or later.
  • Operating System(s): Windows XP Professional with Service Pack 3 or later for an Intel 32-bit processor; Microsoft Windows Vista Business, Enterprise, or Ultimate with Service Pack 2 or later for an Intel 32-bit processor;Microsoft Windows 7 Professional, Enterprise, or Ultimate with Service Pack 1 or later for an Intel 32-bit or an Intel 64-bit extended (x64) processor; or Microsoft Windows 8.1 Professional or Enterprise for an Intel 32-bit or an Intel 64-bit extended (x64) processor.
  • System RAM: At least 4 GB.
  • Hard Drive: At least 200 GB.
  • Display Adapter: At least 1024 x 1024 at 32-bit color, Direct3D-capable, workstation-class
    graphics card. At least 128 MB video memory.
  • Network interface: Gigabit Ethernet adapter (provided with system)
  • Slots:1 Available PCI Express slot for the Network Interface adapter provided
    with the system.
  • Optical Drive: Digital Optical Drive (CD-ROM or DVD) to install the software.
  • Software: Compatible, authorized, TWAIN Compliant, third-party software.

24 Months
This equipment is warranted to be free from defects in material and workmanship for a period of 24 months from the date of installation by authorized Air Techniques' dealer service personnel.



Optional Accessories:

  • PN A7355: Base Plate
  • PN A7395: Bite Block Covers (100)
  • PN A7396: Hygienic Protective Silicone for Temple Support (3 pairs)
  • PN A7376: Bite Block Piece (3 pieces)
  • PN A7390: Chin Support for Edentulous Jaws
  • PN A7391: Chin Support for Mandibular Joint Image
  • PN A7392: Chin Support for Sinus Image
  • PN A7375:Holder for Bite Block Piece
