Digital Doc IRIS USB 2.0 Intraoral Camera®

Digital Doc IRIS USB 2.0 Intraoral Camera® - Distributed by Henry Schein
Digital Doc IRIS USB 2.0 Intraoral Camera® - Distributed by Henry Schein

Schedule a Demo

MSRP: $5,995.00

Special Price $3,999.00

Media

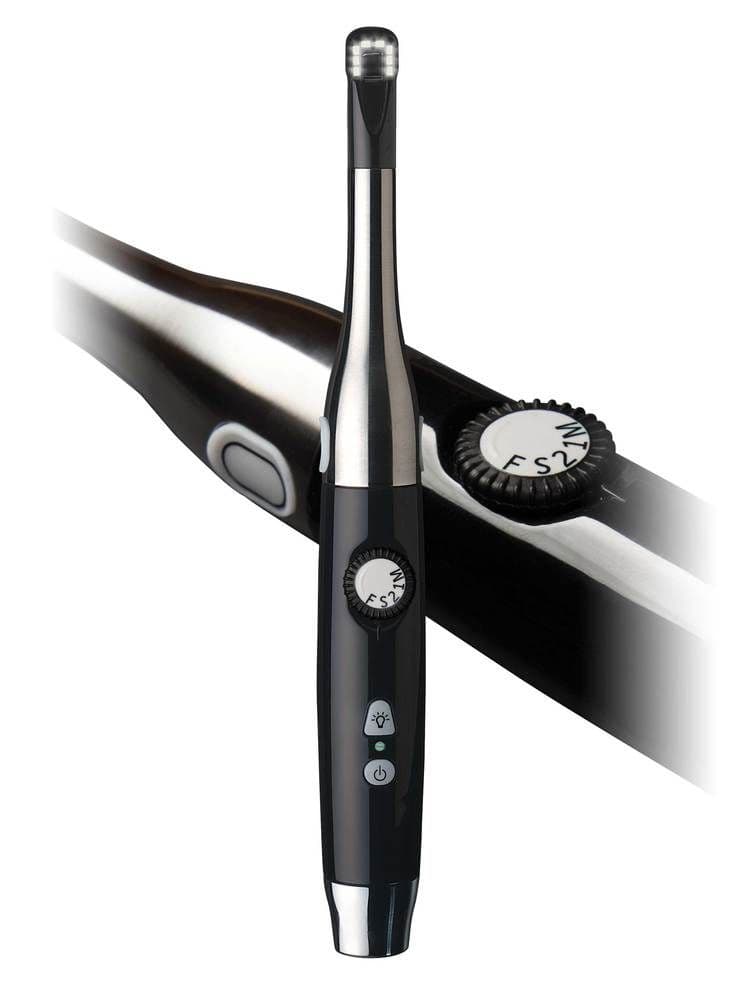

The IRIS USB 2.0 Intraoral Camera is a precision optical instrument featuring an easy to use 5-point Focus Wheel and unique USB connector that fit standard delivery units. The elegantly streamlined profile has a much smaller, specially designed soft-tip with brilliant 8-point LED lighting and Sony’s Hi-Resolution CCD for the finest picture quality.

Financing Opportunities

  • Finance Calculator

    Click to Request Product Financing Options

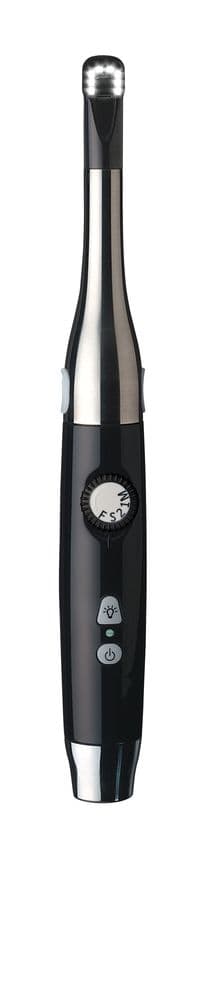

IRIS USB 2.0 Intraoral Camera

Brilliance & Beauty

It is easy to bring the power of the Digital Doc IRIS USB 2.0 Intraoral Camera into every operatory. This quality precision optical instrument continues a 13-year tradition in innovative camera advances making Digital Doc the leader in intraoral cameras. And it is the only camera designed and manufactured in the United States.

The newly refined IRIS handpiece has an elegantly streamlined profile with a much smaller, specially designed soft-tip, and offers high-end features like the advanced multi-lens optics system, …

Product Specifications: IRIS USB 2.0 INTRAORAL DENTAL CAMERA

FEATURES:
Digital signal processor
10 bit ADC
USB 2.0 powered
Camera and light on/off buttons
Convenient dual capture buttons
8-point true white LED lighting
Stainless Steel/Acrylic soft tip body

POWER:
Power consumption: Max. 500 mA
Operating mode: DC 5V +/- 10% (thru USB 2.0) / Max. 500 mA

IMAGING:
Effective Resolution: 752(H) x 582(V)
Scanning frequency horizontal: 15.734 kHz
Aspect ratio: 4:3
Signal/noise ratio: (SNR) >56dBp-p/rms
Video imaging device: Sony ¼” Hi Resolution CCD
Focus range: 1mm (Macro) to Infinity
Angle of view: 90°
Focus: Manual, Multi-stop Focus Wheel, Macro to Infinity
Light source: 8 White LED Array, Rated 100,000 hours lifetime. Light switch button on hand piece allows LEDs to be turned off.
Video output: USB 2.0 (YUV 4:2:2)

PHYSICAL SPECIFICATIONS:
Camera handpiece (Approx.):
Length: 208mm
Diameter: 27mm at largest section
Environmental conditions: Temperature: 0°C to 50°C
Humidity: max. 95%

SYSTEM REQUIREMENTS:
PC System with 2.0Ghz, 1GB RAM
Windows XP SP2 32-bit
Windows Vista Business 32-bit SP1
USB 2.0 interface

Please refer to our website www.digi-doc.com for the latest system requirements.
