Digital Doc IRIS HD® Intraoral Camera
Description
IRIS HD USB 3.0 Intraoral Camera
Experience the Clarity in High Definition

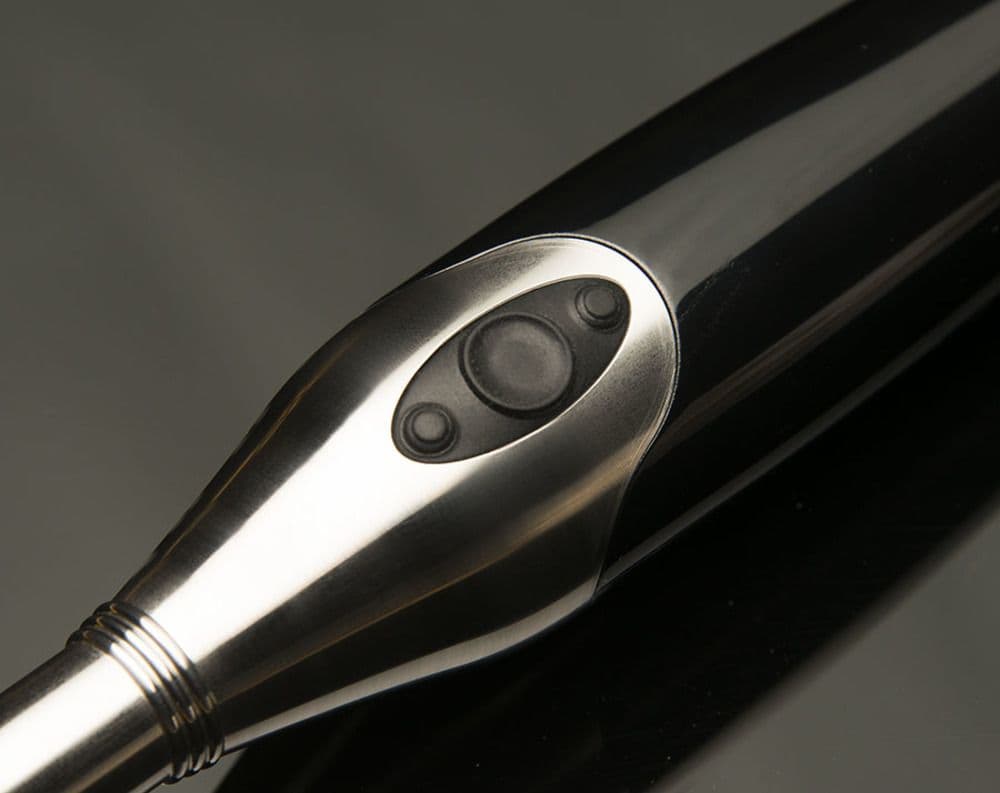

With dual capture buttons and one-touch focus, control is always within reach. The IRIS HD offers extreme clarity with its precision optical lens array and Sony’s advanced HD sensor that combine for the finest, best in its class, picture quality.

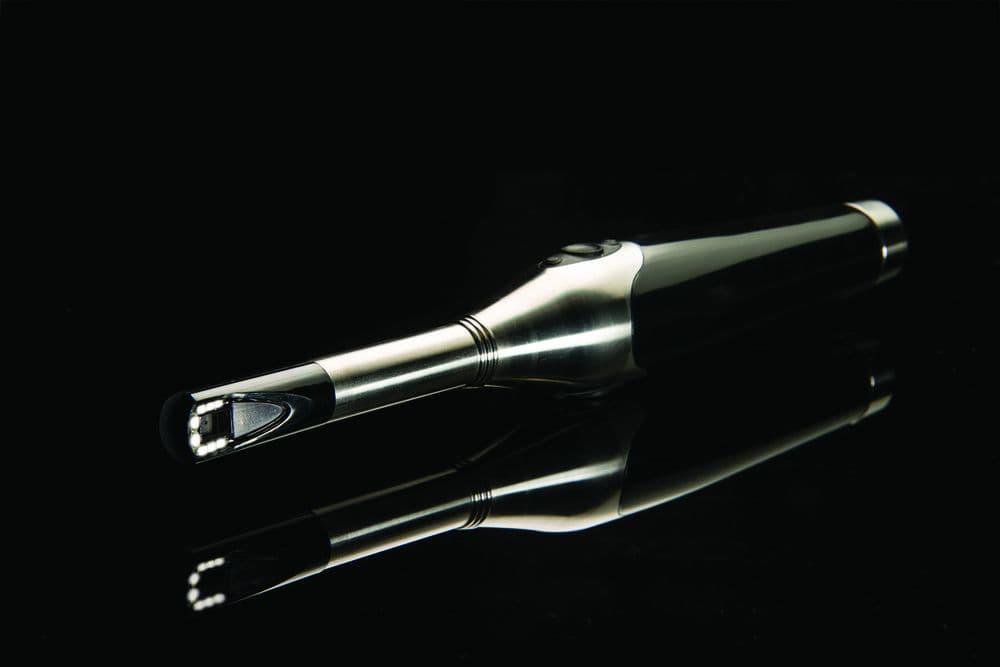

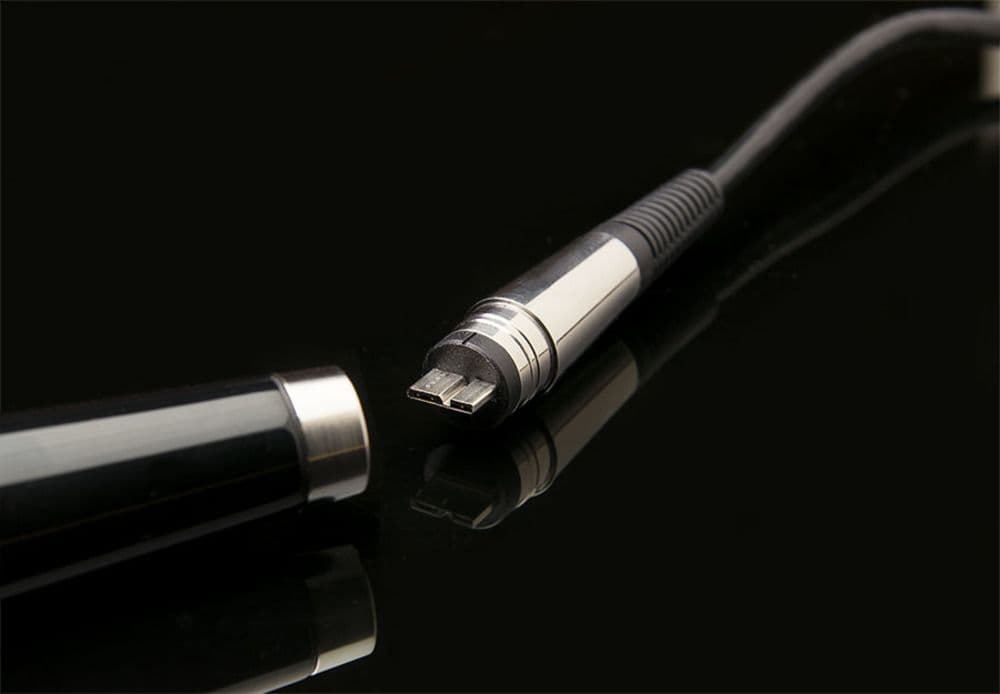

Advanced Features Focus with a touch of a button. The newly designed electronic focus will advance automatically to the next focus mode and all five positions are shown onscreen. Equipped with an internal motion sensor, the IRIS HD will Auto-On when lifted and Auto-Off after ten minutes of inactivity. The elegantly streamlined profile features a small, specially designed soft-tip with brilliant 8-point LED lighting for true-color images. Always close to hand, a specially designed USB 3.0 connector seamlessly fits in a standard delivery unit
For over 16 years, Digital Doc has been leading the industry with innovative design and state of the art technology in intraoral cameras. Since 2007, the company has sold more units than any other camera company in North America, and it is the only camera designed and manufactured in the United States. Digital Doc’s award winning customer service is the cornerstone to a successful relationship with their users. Digital Doc is also proud to offer a 2-year parts and labor warranty on all camera models.
When quality and performance matter, see why Digital Doc is the #1 choice in intraoral cameras. Call 1-800-518-1102 or visit us at www.digi-doc.com.
Specifications
Product Specifications: IRIS HD USB 3.0 DENTAL CAMERA
FEATURES:
Digital signal processor
10 bit ADC
USB 3.0 powered
Camera and light on/off
Accelerometer Power Saver
Convenient dual capture buttons
8-point true white LED lighting
Stainless Steel/Polycarbonate Body
POWER:
Power consumption: Max. 650 mA
Operating mode: DC 5V +/- 10% (thru USB 3.0) / Max. 650 mA
IMAGING:
Effective Resolution: 1280(H) x 1024(V)
Scanning frequency horizontal: 4 kHz
Aspect ratio: 5:4 (16:9 in HD 720)
Signal/noise ratio: (SNR) >56dBp-p/rms
Video imaging device: Sony 6.08 mm (1/3”) 1.3MP CMOS
Focus range: 1mm (Macro) to Infinity Angle of view: 90°
Focus: One-touch 5 position electronic focus
Light source: 8 White LED Array, Rated 100,000 hours lifetime.
Video output: USB 3.0 (YUV2)
PHYSICAL SPECIFICATIONS:
Camera handpiece (Approx.):
Length: 206mm Diameter: 29.2mm at largest section
Environmental conditions: Temperature: -10°C to 50°C
Humidity: max. 95%
SYSTEM REQUIREMENTS:
PC System, 2.0Ghz, 32-bit or 64-bit x86, 1GB RAM Windows 7 Pro, 32-bit or 64-bit Windows 8 Pro or higher, 64-bit USB 3.0 interface
Please refer to our website www.digi-doc.com for the latest system requirements.
